Inserting The Bearing Capsule (Figure  ) - RADEMACHER X-line Handbuch

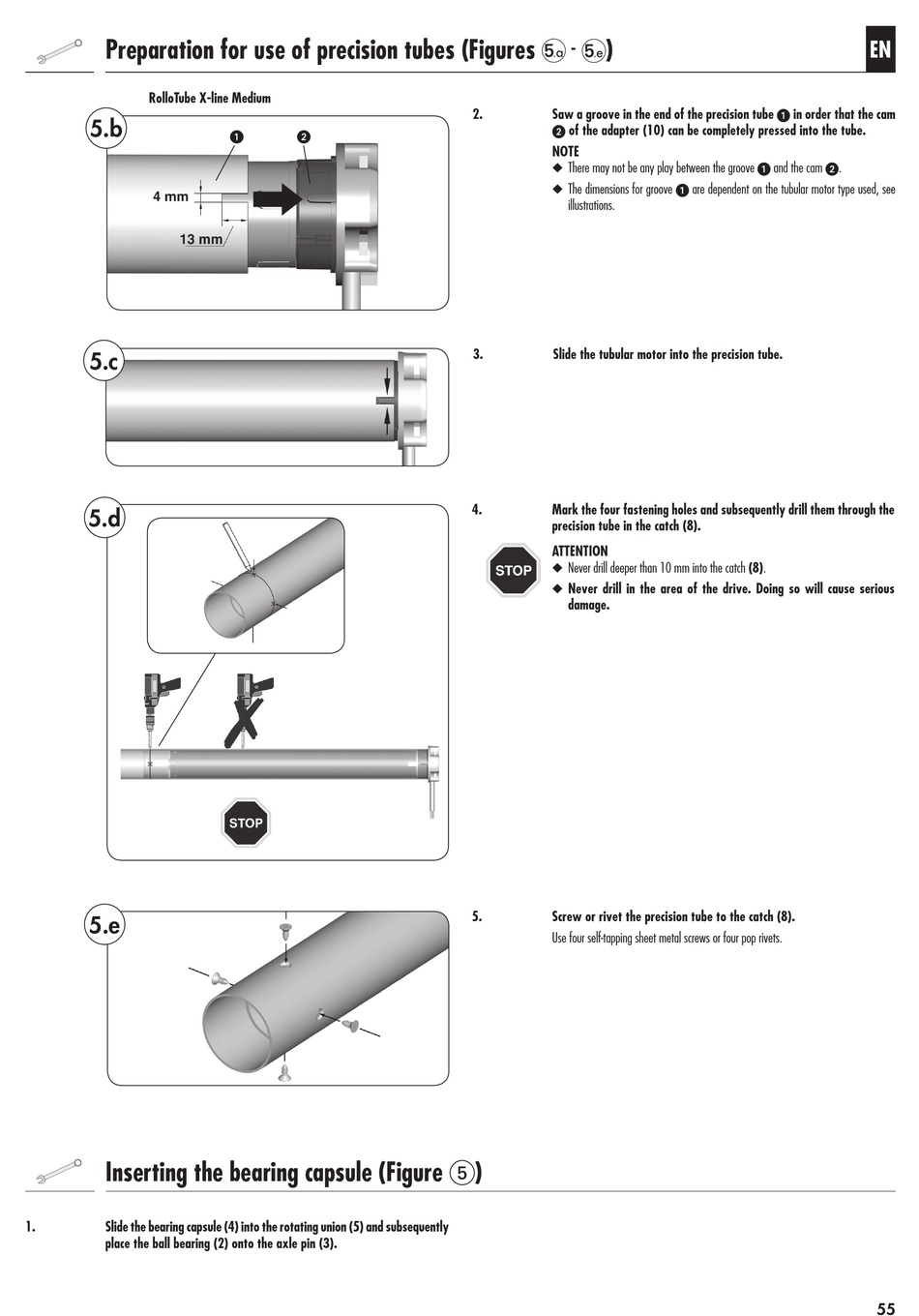

Preparation for use of precision tubes (Figures
RolloTube X-line Medium
5.b
5.c
5.d
5.e
Inserting the bearing capsule (Figure  )
1. Slide the bearing capsule (4) into the rotating union (5) and subsequently
place the ball bearing (2) onto the axle pin (3).
1 
-
)
2. Saw a groove in the end of the precision tube 1 in order that the cam
 of the adapter (10) can be completely pressed into the tube.
NOTE
◆ There may not be any play between the groove 1 and the cam .
◆ The dimensions for groove 1 are dependent on the tubular motor type used, see
illustrations.
3. Slide the tubular motor into the precision tube.
4. Mark the four fastening holes and subsequently drill them through the
precision tube in the catch (8).
ATTENTION
◆ Never drill deeper than 10 mm into the catch (8).
◆ Never drill in the area of the drive. Doing so will cause serious
damage.
5. Screw or rivet the precision tube to the catch (8).
Use four self-tapping sheet metal screws or four pop rivets.
