(Voltage Division)", it can be found that the scale factor of the channel
corresponding to the status bar has been changed accordingly.

Press buttons of CH1～CH4 and Math, the operation menu, symbols,
waveforms and scale factor status information of the corresponding
channel will be displayed in the screen.
You can also set the vertical system through touchscreen, see "Vertikalsystem per
Touchscreen" on P21.

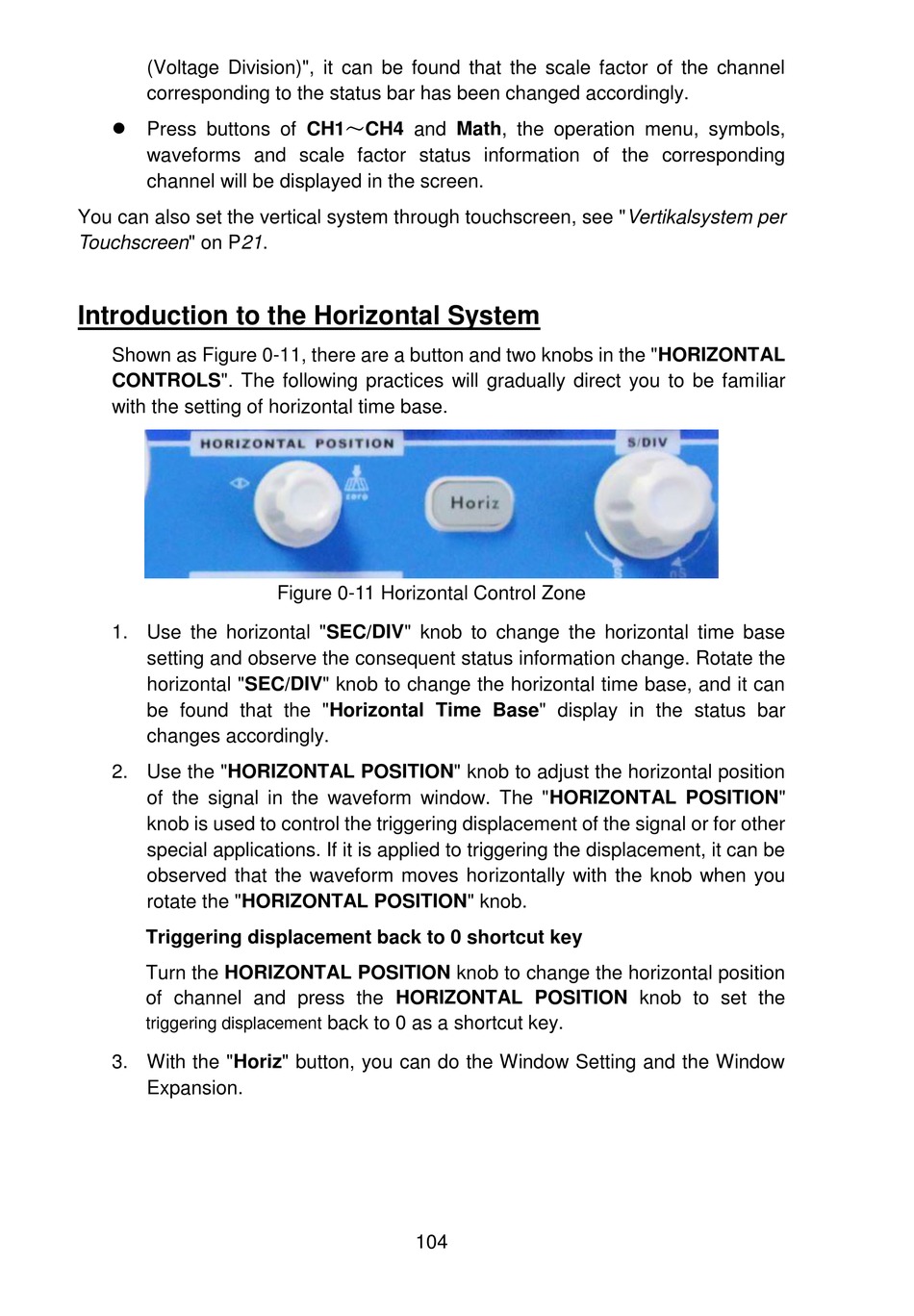

Introduction to the Horizontal System

Shown as Figure 0-11, there are a button and two knobs in the "HORIZONTAL
CONTROLS". The following practices will gradually direct you to be familiar
with the setting of horizontal time base.
1. Use the horizontal "SEC/DIV" knob to change the horizontal time base
setting and observe the consequent status information change. Rotate the
horizontal "SEC/DIV" knob to change the horizontal time base, and it can
be found that the "Horizontal Time Base" display in the status bar
changes accordingly.
2. Use the "HORIZONTAL POSITION" knob to adjust the horizontal position
of the signal in the waveform window. The "HORIZONTAL POSITION"
knob is used to control the triggering displacement of the signal or for other
special applications. If it is applied to triggering the displacement, it can be
observed that the waveform moves horizontally with the knob when you
rotate the "HORIZONTAL POSITION" knob.
Triggering displacement back to 0 shortcut key
Turn the HORIZONTAL POSITION knob to change the horizontal position
of channel and press the HORIZONTAL POSITION knob to set the
triggering displacement
3. With the "Horiz" button, you can do the Window Setting and the Window
Expansion.
Figure 0-11 Horizontal Control Zone
back to 0 as a shortcut key.
104
