Function
Setting
Menu
OFF
Type Voltage
Time
①/②/③/④/
Source
○,M
Line
L1&L2
Perform the steps below for the voltage cursor measurement of the channel
CH1:
1. Press the Cursor button.
2. Select Source in the bottom menu; select ① in the left menu.
3. Select Type in the bottom menu; select Voltage in the right menu. Two
red dotted lines displayed along the horizontal direction of the screen,
which indicating L1 and L2.
4. Select Line in the bottom menu; select L1 in the right menu. The
icon will appear beside the dotted line of L1, represents you can turn
the G knob to adjust the position of L1. Select L2 to adjust the position
of L2. Select L1&L2 to adjust the two cursors together. The cursor
measure window at the top right shows the present position of two
cursors and the absolute value of voltage difference (see Figure 0-10).

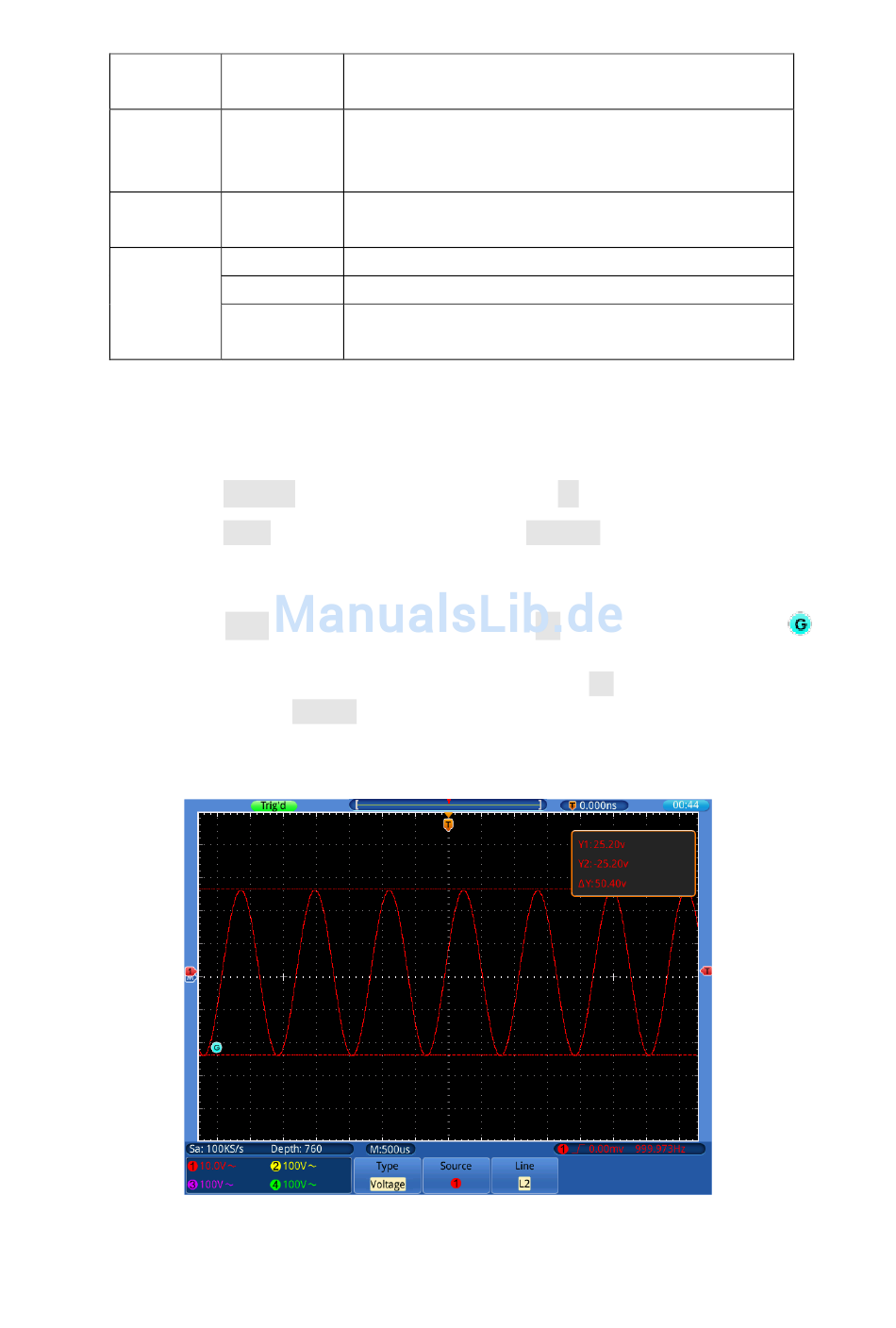

Figure 0-10 Waveform of Voltage Cursor Measurement
Carry out the steps below for the time cursor measurement of the channel
Description
Turn off the cursor measurement
Measure voltage using cursor
Measure time using cursor
Select the source that the cursor measurement will be
applied to
L1 Turn the G knob to adjust the position of L1
L2 Turn the G knob to adjust the position of L2
Two cursors are linked. Turn the G knob to adjust the
two cursors together
