Caution:
When the attenuation switch is set to 1X, the probe will limit the
bandwidth of the oscilloscope in 5MHz. To use the full bandwidth of
the oscilloscope, the switch must be set to 10X.

How to Use the Probe Safely

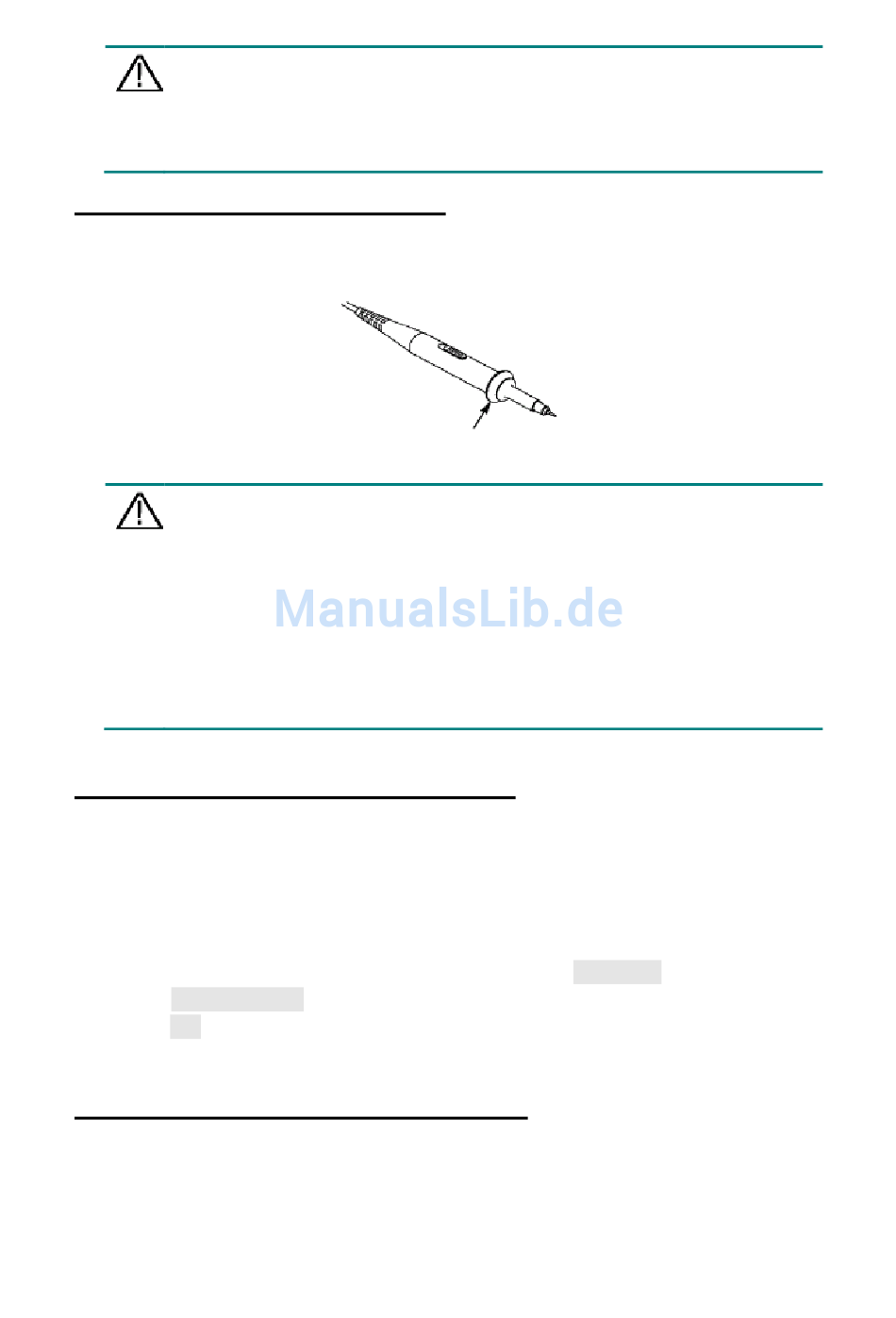

The safety guard ring around the probe body protects your finger against any
electric shock, shown as Bild 0-8.
Warning:
To avoid electric shock, always keep your finger behind the safety
guard ring of the probe during the operation.
To protect you from suffering from the electric shock, do not touch any
metal part of the probe tip when it is connected to the power supply.
Before making any measurements, always connect the probe to the
instrument and connect the ground terminal to the earth.

How to Implement Self-calibration

The self-calibration application can make the oscilloscope reach the optimum
condition rapidly to obtain the most accurate measurement value. You can
carry out this application program at any time. This program must be executed
whenever the change of ambient temperature is 5℃ or over.
Before performing a self-calibration, disconnect all probes or wires from the
input connector. Press the "Utility" button, select Calibrate in the left menu,
select Self Calibrate in the bottom menu. A confirmation window will pop up,
select OK after everything is ready.

Introduction to the Vertical System

As shown in Bild 0-9, there are a few of buttons and knobs in VERTICAL
CONTROLS. The following practices will gradually direct you to be familiar
with the using of the vertical setting.
Figure 0-9 Finger Guard
