Select L1&L2 to adjust the two cursors together. The cursor measure
window at the top right shows the present position of two cursors and the
absolute value of amplitude difference (see Bild 0-9).

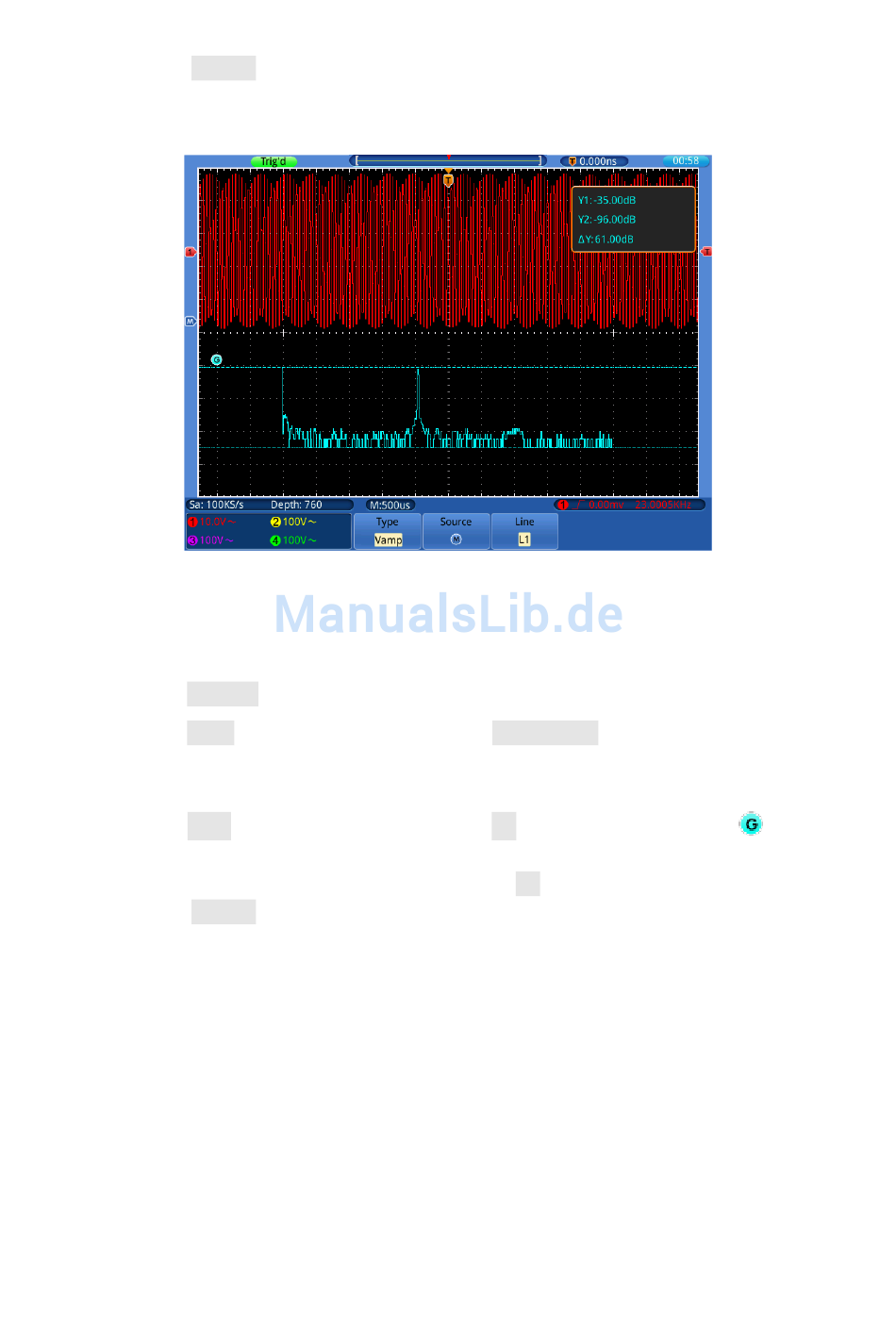

Figure 0-12 Wave of Vamp cursor measurement
Carry out the steps below for the Frequency cursor measurement:
1. Press the Cursor button.
2. Select Source in the bottom menu; select ○,M in the left menu.
3. Select Type in the bottom menu; select Frequency in the right menu. Two
blue dotted lines displayed along the vertical direction of the screen, which
indicating L1 and L2.
4. Select Line in the bottom menu; select L1 in the right menu. The
will appear beside the dotted line of L1, represents you can turn the G
knob to adjust the position of L1. Select L2 to adjust the position of L2.
Select L1&L2 to adjust the two cursors together. The cursor measure
window at the top right shows the present position of two cursors and the
absolute value of frequency difference (see Figure 0-13).
