Note:
1. If one of the paired channels is on, the other is off, after entering the XY
mode, the closed channel will be turned on automatically.
2. In the XY mode, if you turn off a channel, the other channel that pair with it
will be turned off automatically.
3. When the XY Mode is turned on, the reference waveform that has been
displayed will be removed from the display automatically.
Operation steps:
4. Press the Acquire button.
5. Select XY Mode as ON or OFF in the bottom menu.
Cymometer (Frequency Counter)
It is a 6-digit cymometer. The cymometer can measure frequencies from 2Hz
to the full bandwidth. Only if the measured channel has triggering signal and in
Edge mode, it can measure frequency correctly. It is a one channel
cymometer and it can only measure the frequency of the triggering channel.
The cymometer is displayed at the right bottom of the screen.
To turn the cymometer on or off:
1. Press the Acquire button.
2. Select Cymometer as ON or OFF in the bottom menu.

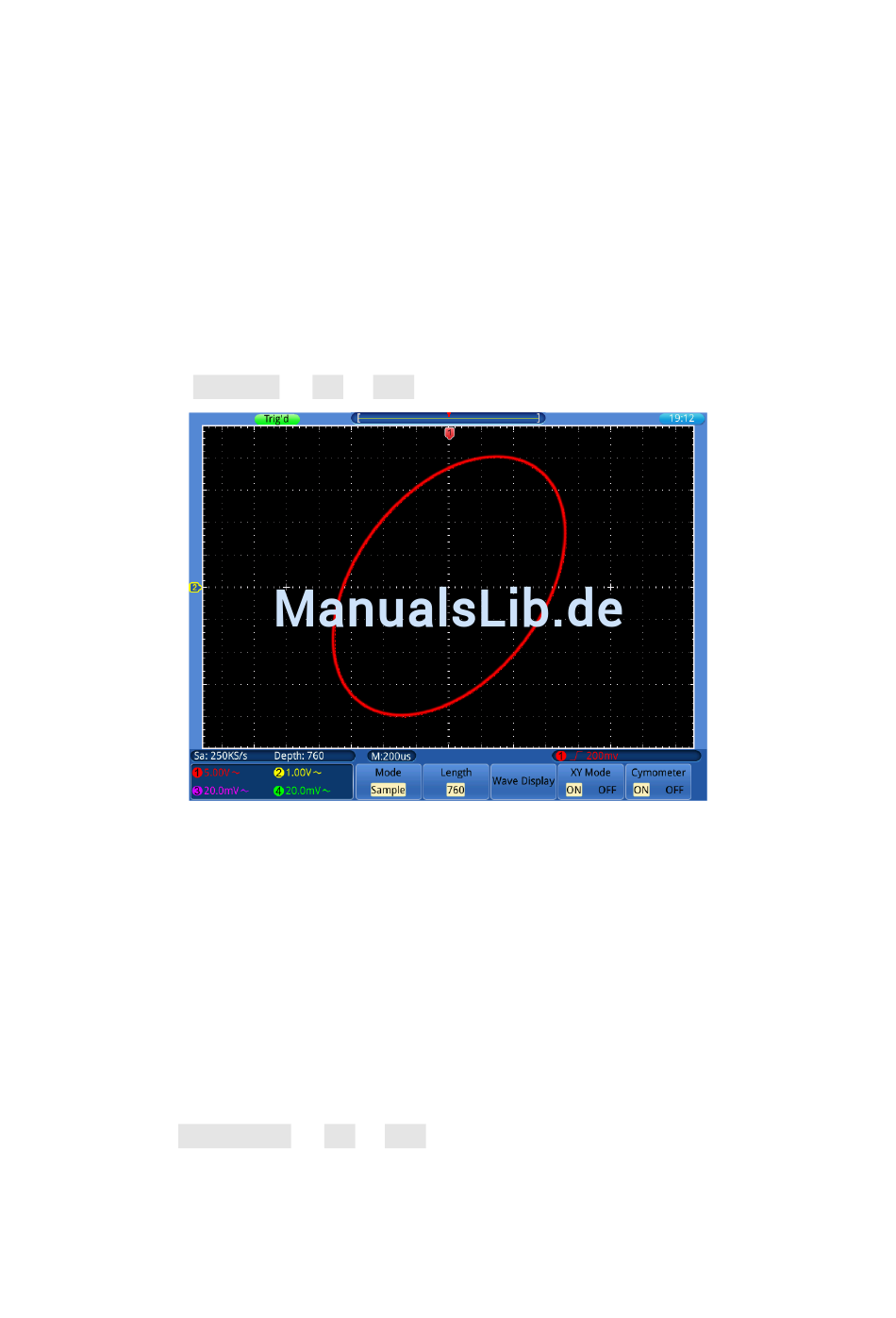

Figure 0-5 XY Display Mode
129
