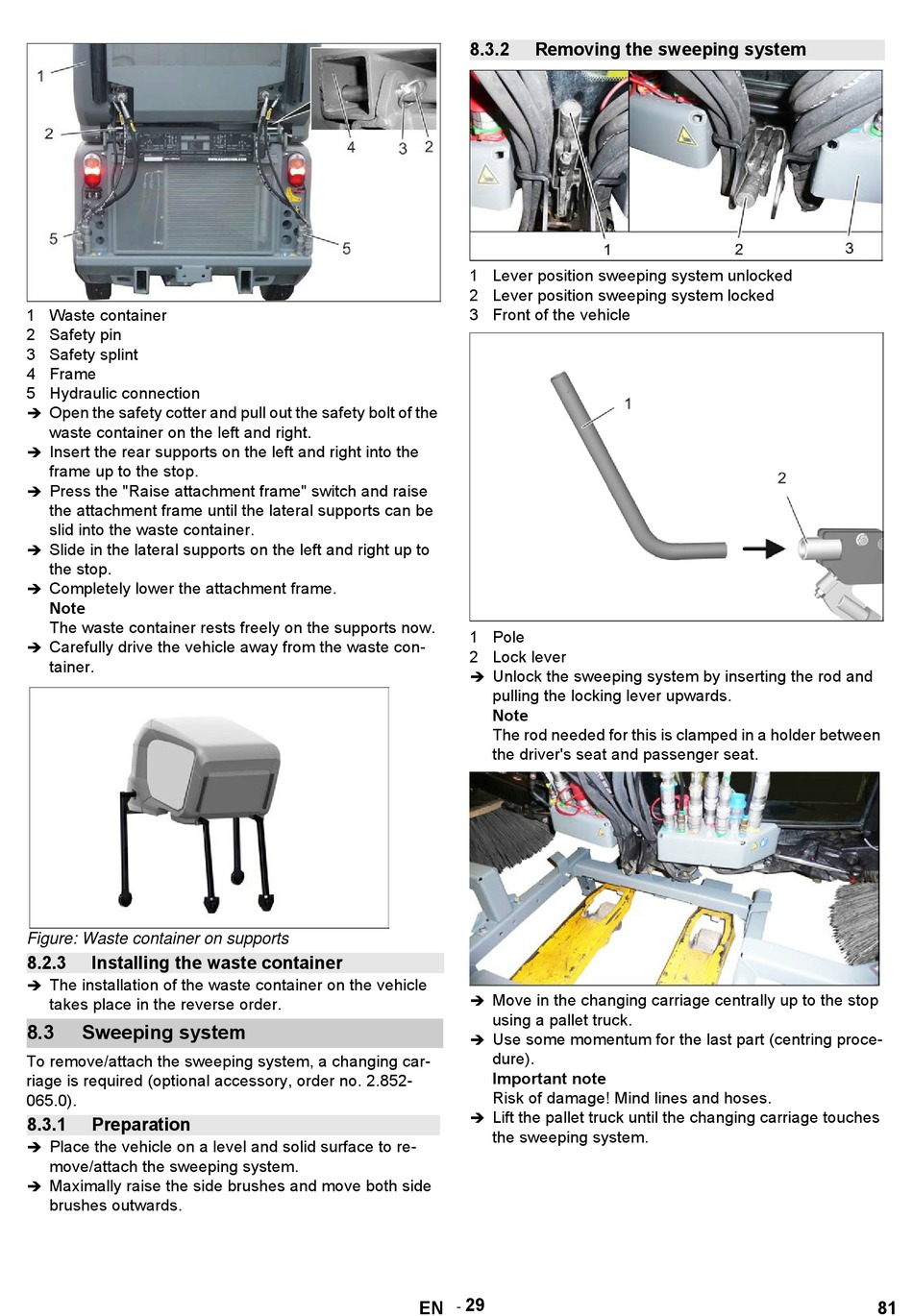

Sweeping System - Kärcher MC 130 Bedienungsanleitung

1 Waste container
2 Safety pin
3 Safety splint
4 Frame
5 Hydraulic connection
Open the safety cotter and pull out the safety bolt of the

waste container on the left and right.
Insert the rear supports on the left and right into the

frame up to the stop.
Press the "Raise attachment frame" switch and raise

the attachment frame until the lateral supports can be
slid into the waste container.
Slide in the lateral supports on the left and right up to

the stop.
Completely lower the attachment frame.

Note
The waste container rests freely on the supports now.
Carefully drive the vehicle away from the waste con-

tainer.
Figure: Waste container on supports
8.2.3 Installing the waste container
The installation of the waste container on the vehicle

takes place in the reverse order.
8.3

Sweeping system

To remove/attach the sweeping system, a changing car-
riage is required (optional accessory, order no. 2.852-
065.0).
8.3.1 Preparation
Place the vehicle on a level and solid surface to re-

move/attach the sweeping system.
Maximally raise the side brushes and move both side

brushes outwards.
8.3.2 Removing the sweeping system
1 Lever position sweeping system unlocked
2 Lever position sweeping system locked
3 Front of the vehicle
1 Pole
2 Lock lever
Unlock the sweeping system by inserting the rod and

pulling the locking lever upwards.
Note
The rod needed for this is clamped in a holder between
the driver's seat and passenger seat.
Move in the changing carriage centrally up to the stop

using a pallet truck.
Use some momentum for the last part (centring proce-

dure).
Important note
Risk of damage! Mind lines and hoses.
Lift the pallet truck until the changing carriage touches

the sweeping system.
