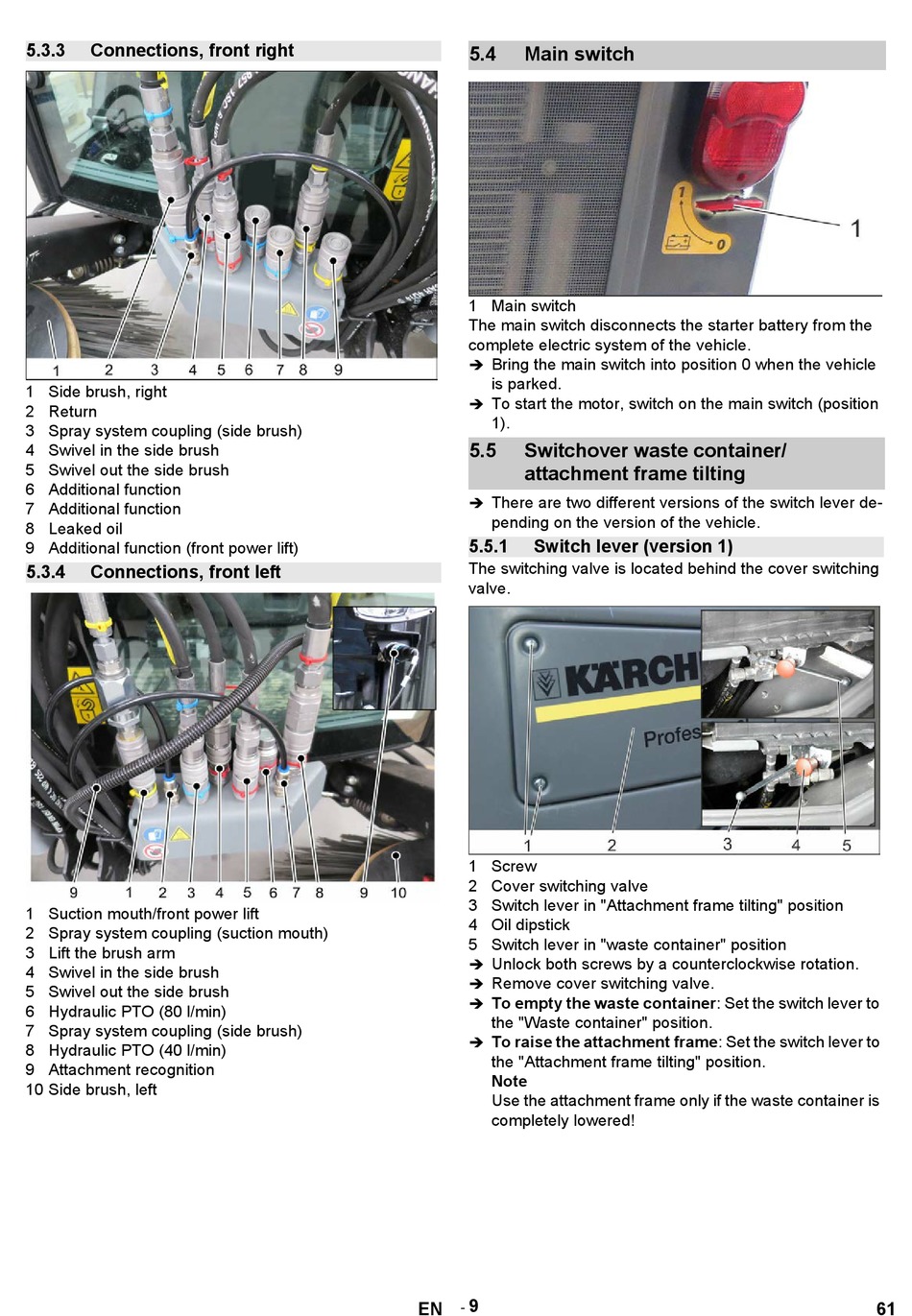

5.3.3 Connections, front right
1 Side brush, right
2 Return
3 Spray system coupling (side brush)
4 Swivel in the side brush
5 Swivel out the side brush
6 Additional function
7 Additional function
8 Leaked oil
9 Additional function (front power lift)
5.3.4 Connections, front left
1 Suction mouth/front power lift
2 Spray system coupling (suction mouth)
3 Lift the brush arm
4 Swivel in the side brush
5 Swivel out the side brush
6 Hydraulic PTO (80 l/min)
7 Spray system coupling (side brush)
8 Hydraulic PTO (40 l/min)
9 Attachment recognition
10 Side brush, left
5.4

Main switch

1 Main switch
The main switch disconnects the starter battery from the
complete electric system of the vehicle.
Bring the main switch into position 0 when the vehicle

is parked.
To start the motor, switch on the main switch (position

1).
5.5 Switchover waste container/
attachment frame tilting
There are two different versions of the switch lever de-

pending on the version of the vehicle.
5.5.1 Switch lever (version 1)
The switching valve is located behind the cover switching
valve.
1 Screw
2 Cover switching valve
3 Switch lever in "Attachment frame tilting" position
4 Oil dipstick
5 Switch lever in "waste container" position
Unlock both screws by a counterclockwise rotation.

Remove cover switching valve.

To empty the waste container: Set the switch lever to

the "Waste container" position.
To raise the attachment frame: Set the switch lever to

the "Attachment frame tilting" position.
Note
Use the attachment frame only if the waste container is
completely lowered!
9
-
EN 61
