5

Overview MC 130

5.1

Appliance view

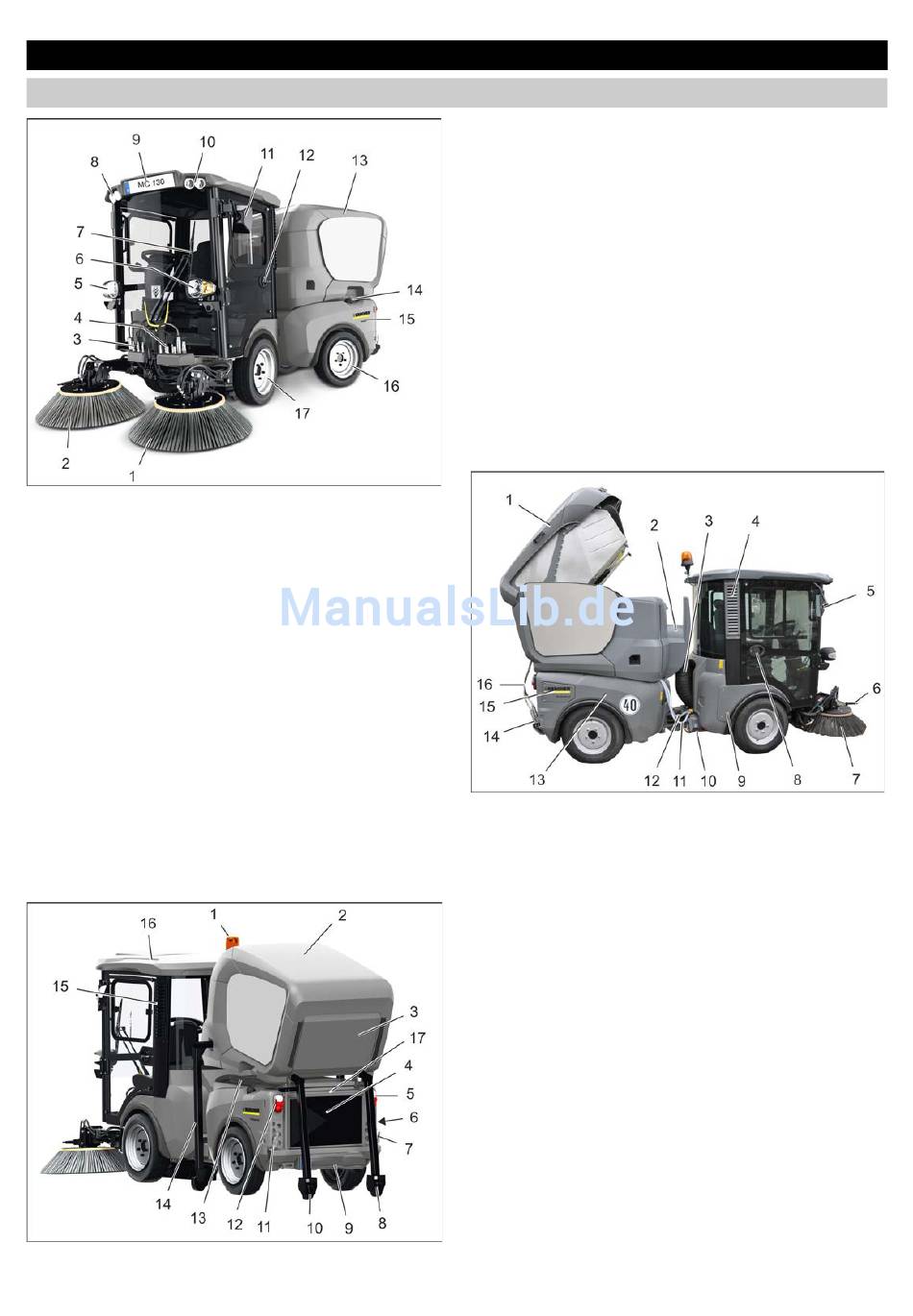

Figure: MC 130 side from the front (passenger side)
1 Sweeping system
Right side brush
2 Sweeping system
Left side brush
3 Hydraulic connection at the front right
4 Hydraulic connection in the front left
5 Drive light/direction indicator
6 Drive light/direction indicator
7 Wiper
8 Work light
9 License plate holder
10 Work light
11 Rear-view mirror
12 Passenger door, lockable
13 Waste container
14 Tank lid
15 Left motor cover
16 Rear wheel
17 Front wheel
Figure: MC 130 with waste container on supports
1 Beacon lamp
2 Waste container
3 Exhaust gas grid/diffuser
4 Radiator grid
5 Rear light/direction indicator
6 Main switch
7 Hydraulic PTO (40 l/min)
8 Rear support for waste container
9 Trailer hitch (option)
10 Rear support for waste container
11 Return
12 Rear light/direction indicator
13 Attachment frame with tilting function
14 Lateral support for waste container (2x)
15 Dust filter driver cabin
16 Driver cabin
17 License plate holder
Figure: MC 130 with raised waste container (driver's side)
1 Waste container is raised
2 Storage manual suction hose
3 Suction hose
4 Dust filter driver cabin
5 Rear-view mirror
6 Spray nozzle side brush
7 Side brushes
8 Driver's door, lockable
9 Cover front side panel
10 Transport restraint articulated joint
11 Water system
12 Hose recycled water
13 Right motor cover
14 Rear hydraulic connection
15 Cover switch lever "Waste container/attachment frame
with tilting function"
16 Hydraulic hose connection for raising/lowering the
waste container
7
-
EN 59
