6 Assembling the ride-on mower
6.4 Attaching and removing the
mowing deck

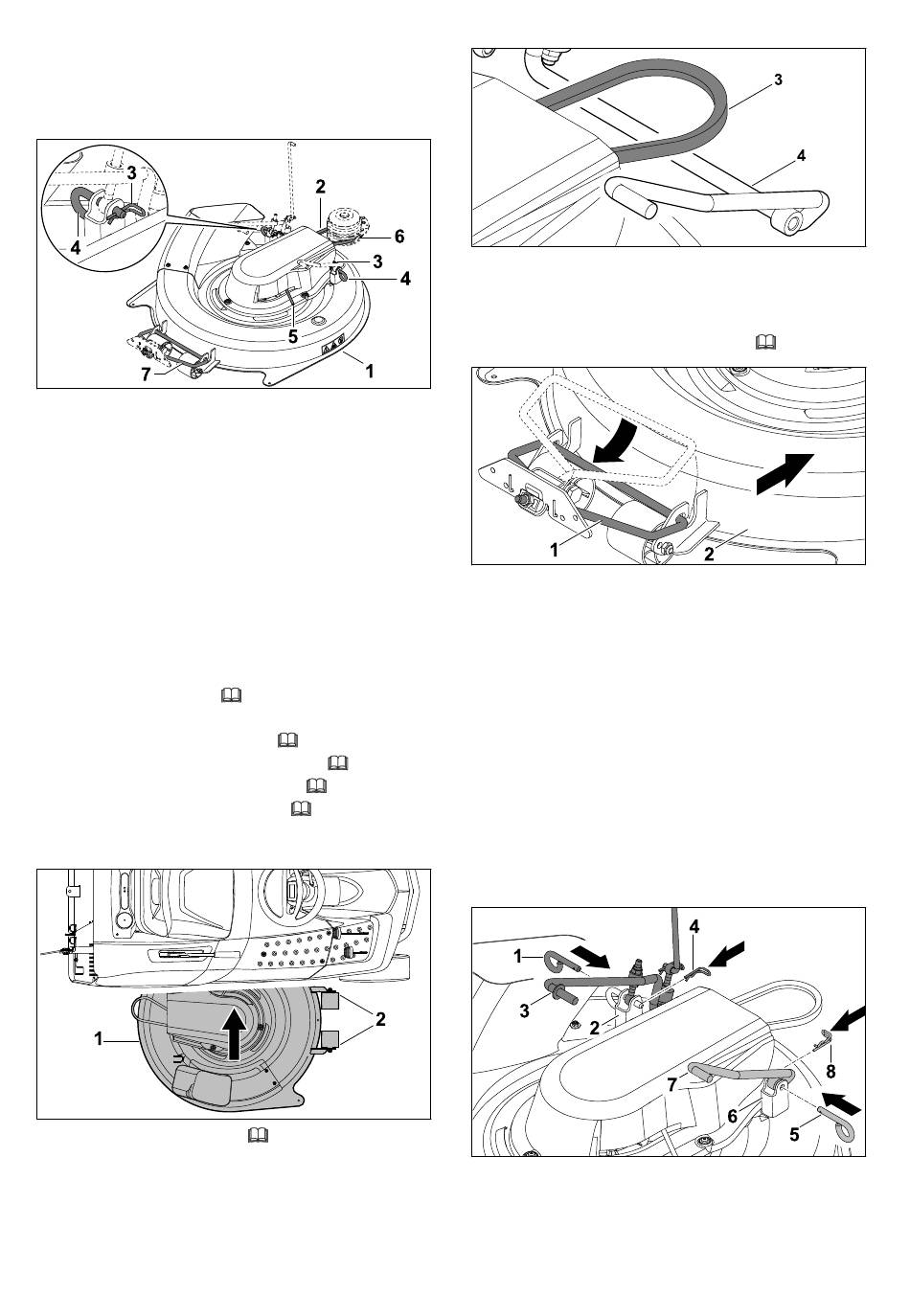

6.4.1 Structure of the mowing deck
1 Mowing deck
2 V-belt
3 Cotter pin
4 Fastening pin
5 V-belt tensioner lever
6 V-belt pulley
7 Mowing deck mounting, front
8 Mowing deck mounting, rear
6.4.2 Installing the mowing deck
► Place the ride-on mower on a level surface.
► Shut off the engine,
► Remove the ignition key and store it securely.
► Engage the parking brake,
► Select the highest cutting height,
► Detach the grass catcher box,
► Detach the discharge chute,
Pushing the mowing deck under the mower
► Select cutting height 6,
► Push the mowing deck (1) from the right side
with rollers (2) in the direction of travel under
the ride-on mower.
0478-193-9806-A
9.2.
11.5.1.
11.6.
6.2.2.
6.1.2.
11.6.
► Position the V-belt (3) over the mowing deck
mounting (4).
Attaching the mowing deck at the front
► Select the lowest cutting height,
► Fold the front mowing deck mounting (1)
downward and attach it to the mowing
deck (2).
► Push the mowing deck (2) to the rear until the
mowing deck mounting (1) engages.
The front mowing deck mounting is firmly
attached to the mowing deck.
Attaching the mowing deck at the rear
► Lift the mowing deck with one hand and hold
it.
► Position the mowing deck so that the hole in
the mowing deck mounting of the mounting
deck and the hole of the ride-on mower are
aligned.
► Push the retaining pin (1) all the way through
the hole in the mowing deck mounting (2) of
the mounting deck and the hole of the ride-on
mower (3).
