making an easy observation of the waveform before the burr
occurs (see Figure 6- 3).

Example 4: Analyze the Details of a Signal

Noise is very common inside most of the electronic signal. To find
out what's inside the noise and reduce the level of noise is very
important function our oscilloscope is capable to offer.
Noise Analysis
The level of noise sometime indicates a failure of electronic circuit.
The Peak Detect functions acts an important role to help you to find
out the details of these noise. Here is how we do it:
(1)Push the Acquire button to display the right menu.
(2)In the right menu, select Acqu Mode as Peak Detect.
The signal displayed on the screen containing some noise, by

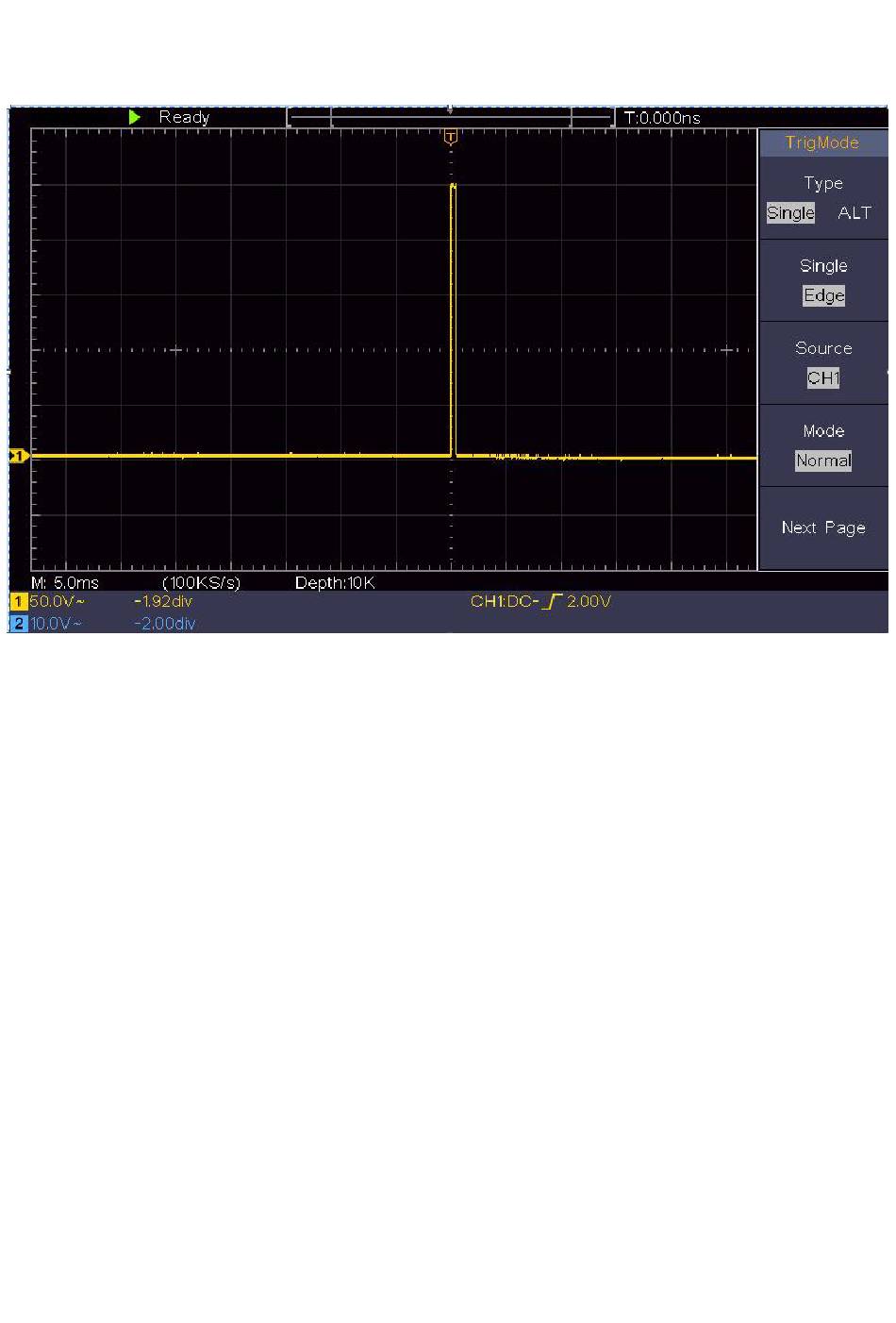

Figure 6- 3 Capturing a Single Signal
