make this adjustment to match the probe with the input channel. The
probe which is not compensated or presents a compensation
deviation will result in the measuring error or mistake. For adjusting
the probe compensation, please carry out the following steps:
1. Set the attenuation coefficient of the probe in the menu as
10X and that of the switch in the probe as 10X (see "How to Set
the Probe Attenuation Coefficient" on P20), and connect the
probe with the CH1 channel. If a probe hook tip is used, ensure
that it keeps in close touch with the probe. Connect the probe tip
with the signal connector of the probe compensator and connect
the reference wire clamp with the ground wire connector of the
probe connector, and then push the Autoset button on the front
panel.
2. Check the displayed waveforms and regulate the probe till a
correct compensation is achieved (see Figure 3- 6 and Figure
3- 7).

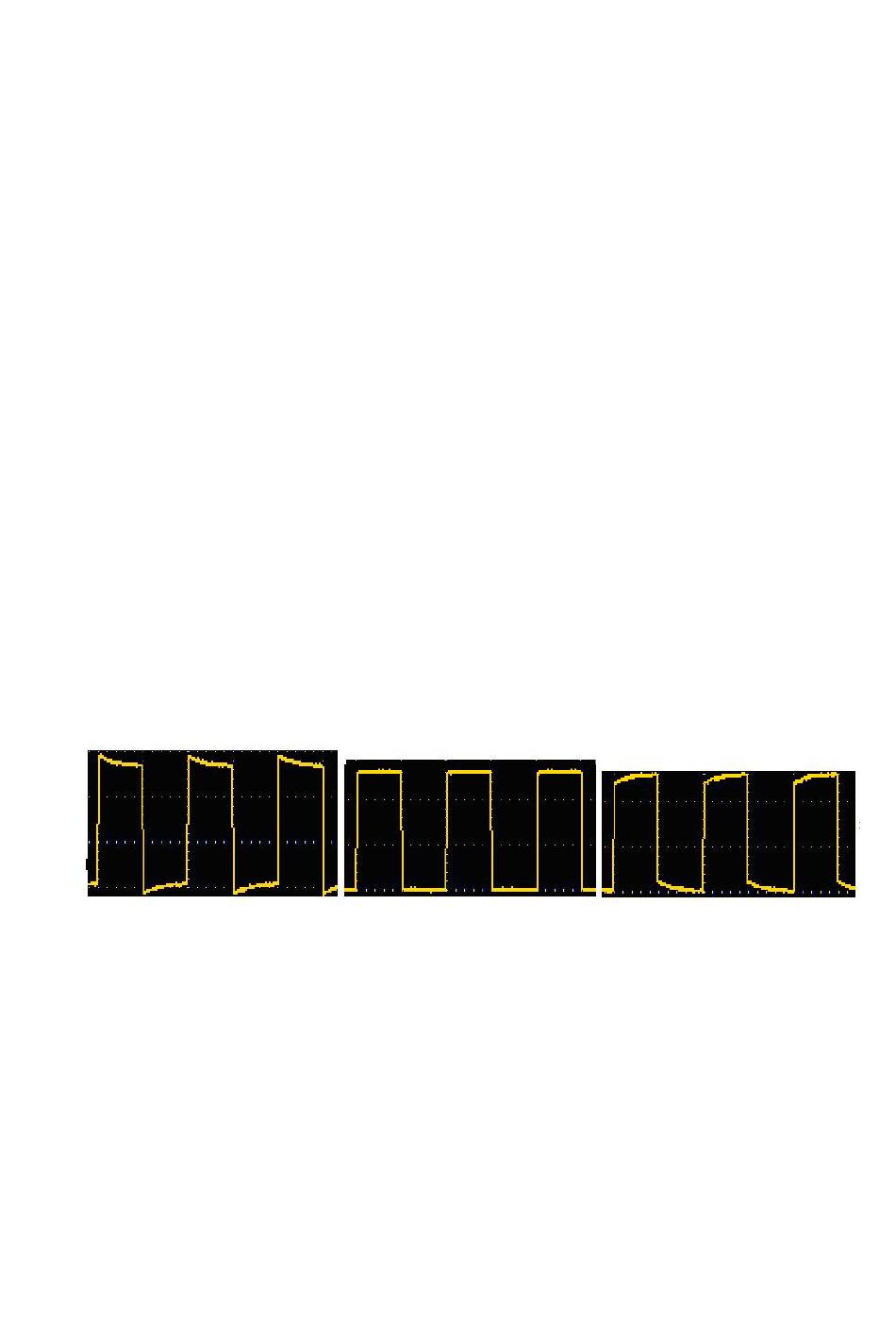

Overcompensated
Figure 3- 6 Displayed Waveforms of the Probe Compensation
3. Repeat the steps mentioned if needed.
Compensated correctly
Under compensated
