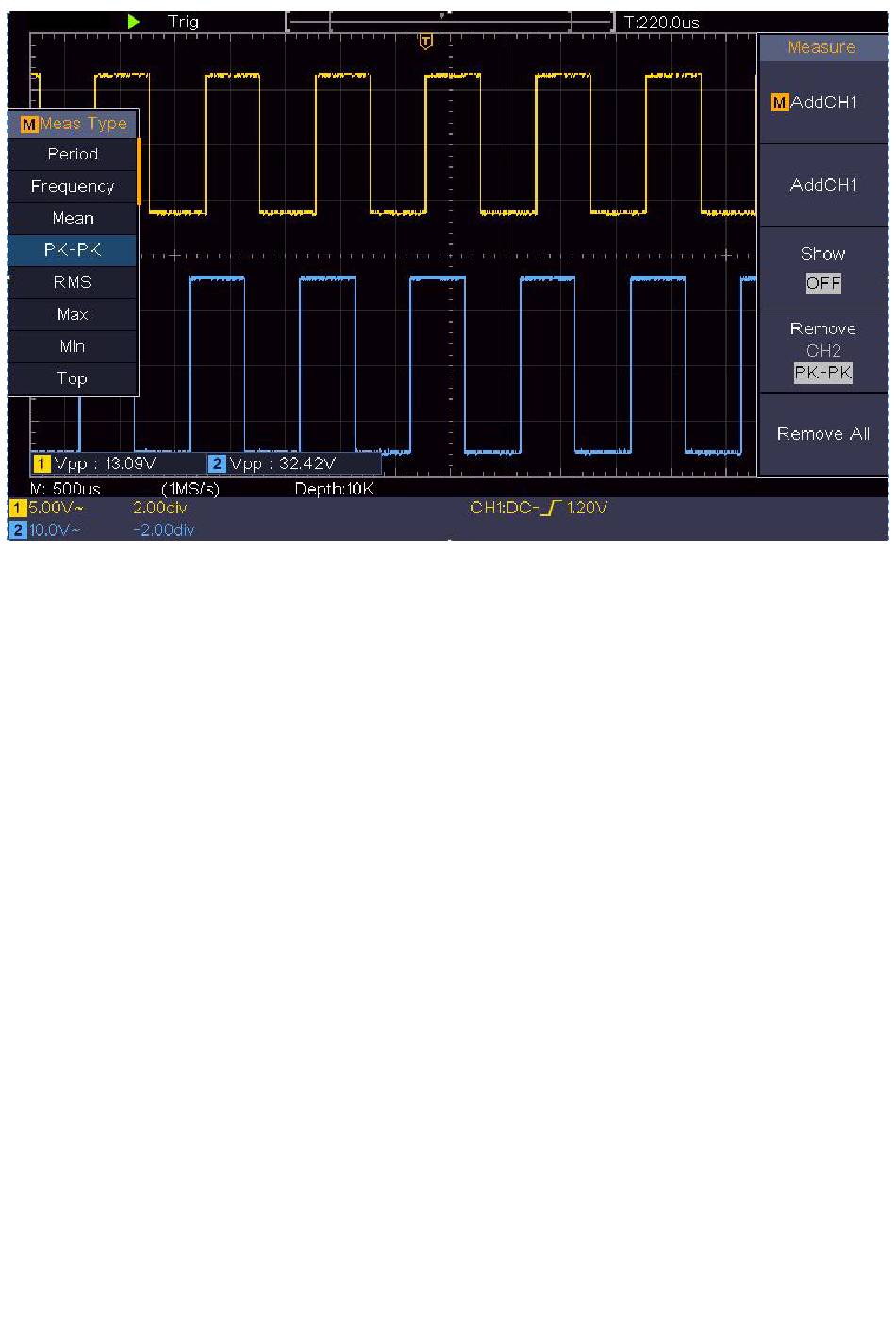

Figure 6- 2 Waveform of Gain Measurement

Example 3: Capturing a Single Signal

It's quite easy to use Digital Oscilloscope to capture non-periodic
signal, such as a pulse and burr etc. But the common problem is how
to set up a trigger if you have no knowledge of the signal? For
example, if the pulse is the logic signal of a TTL level, the trigger
level should be set to 2 volts and the trigger edge be set as the rising
edge trigger. With various functions supported by our Oscilloscope,
user can solve this problem by taking an easy approach. First to run
your test using auto trigger to find out the closest trigger level and
trigger type, this helps user to make few small adjustments to
achieve a proper trigger level and mode. Here is how we achieve
this.
The operation steps are as follows:
(1)Set the probe menu attenuation coefficient to 10X and that of the
82
