How To Implement The Probe Compensation - Vevor Sds1102 Benutzerhandbuch

menu. Select Adjust in the left menu, select Default in the right
menu. The default attenuation coefficient set value of the probe
in the menu is 10X.
2. Set the Switch in the Oscilloscope Probe as 10X and
Connect the Oscilloscope with CH1 Channel.
Align the slot in the probe with the plug in the CH1 connector
BNC, and then tighten the probe by rotating it to the right side.
Connect the probe tip and the ground clamp to the connector of
the probe compensator.
3. Push the Autoset Button on the front panel.
The square wave of 1 KHz frequency and 5V peak-peak value
will be displayed in several seconds (see Figure 3- 5).
Check CH2 by repeating Step 2 and Step 3.

How to Implement the Probe Compensation

When connecting the probe with any input channel for the first time,

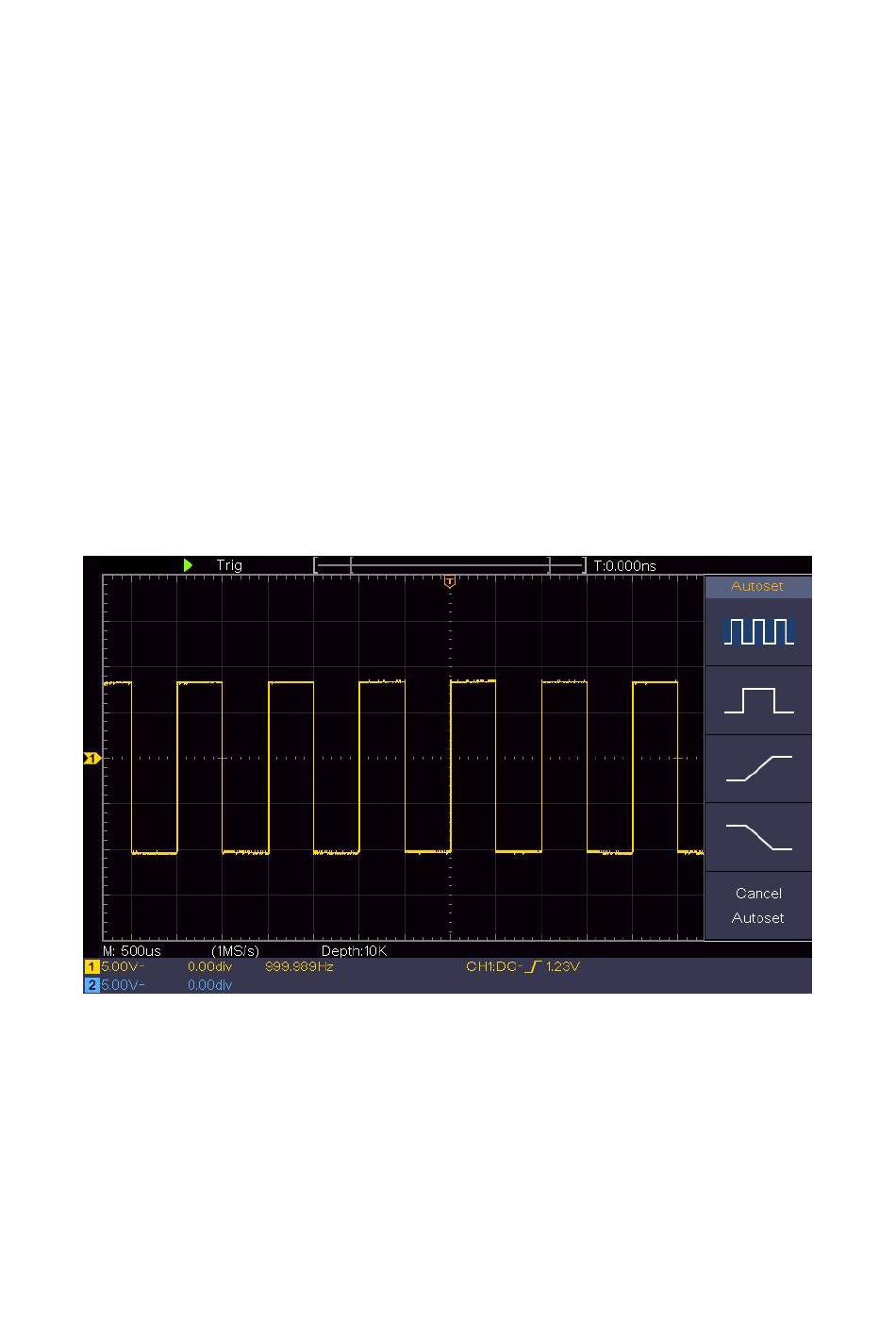

Figure 3- 5 Auto set
