Control Area - Vevor Sds1102 Benutzerhandbuch

equipment connects to the oscilloscope regarded as "slave device".
For example: to use this port when connect PC to the oscilloscope by
USB.

Control Area

1. Function button area: Total 6 buttons.
2. Horizontal control area with 1 button and 2 knobs.
"HOR" button refers to horizontal system setting menu, "Horizontal
Position" knob control trigger position, " Horizontal Scale" control time
base.
3. Trigger control area with 2 buttons and 1 knob.

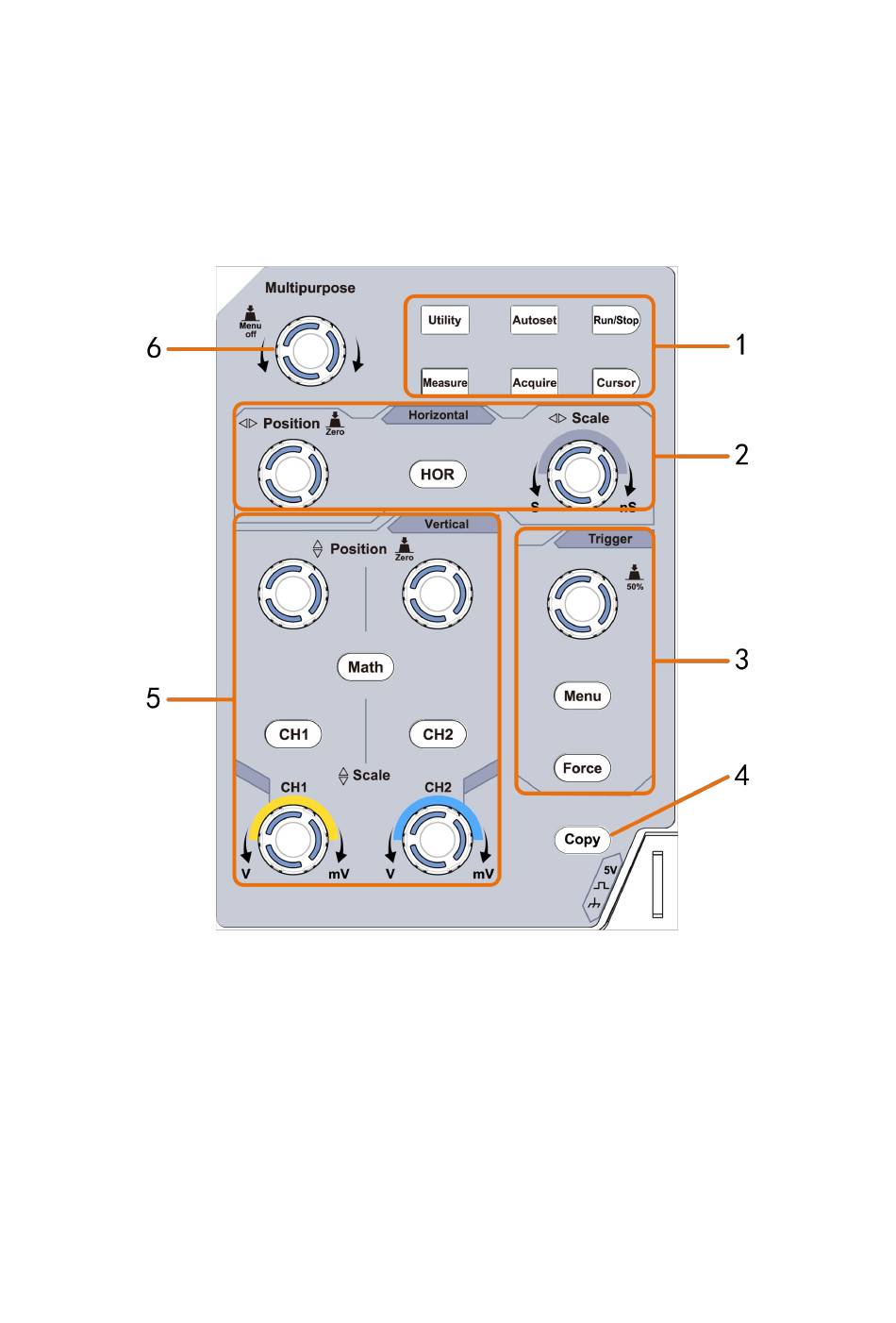

Figure 3- 3 Control Area Overview
12
