7. It shows present triggering value and displays the site of
present window in internal memory.
8. It indicates that there is a USB disk connecting with the
oscilloscope.
9. Channel identifier of current menu.
10. The waveform of CH1.
11. Right Menu.
12. The waveform of CH2.
13. Current trigger type:
The reading shows the trigger level value of the
corresponding channel.
14. It indicates the measured type and value of the
corresponding channel. "T" means period, "F" means
frequency, "V" means the average value, "Vp" the
peak-peak value, "Vr" the root-mean-square value, "Ma" the
maximum amplitude value, "Mi" the minimum amplitude
value, "Vt" the Voltage value of the waveform's flat top value,
"Vb" the Voltage value of the waveform's flat base, "Va" the
amplitude value, "Os" the overshoot value, "Ps" the
Preshoot value, "RT" the rise time value, "FT" the fall time
value, "PW" the +width value, "NW" the -Width value, "+D"
the +Duty value, "-D" the -Duty value, "PD" the Delay
A->B value, "ND" the Delay A->B
RMS, "CR" the Cursor RMS, "WP" the Screen Duty, "RP" the
Phase, "+PC" the +Pulse count, "-PC" the - Pulse count,
"+E" the Rise edge count, "-E" the Fall edge count, "AR" the
Area, "CA" the Cycle area.
15. The readings show the record length.

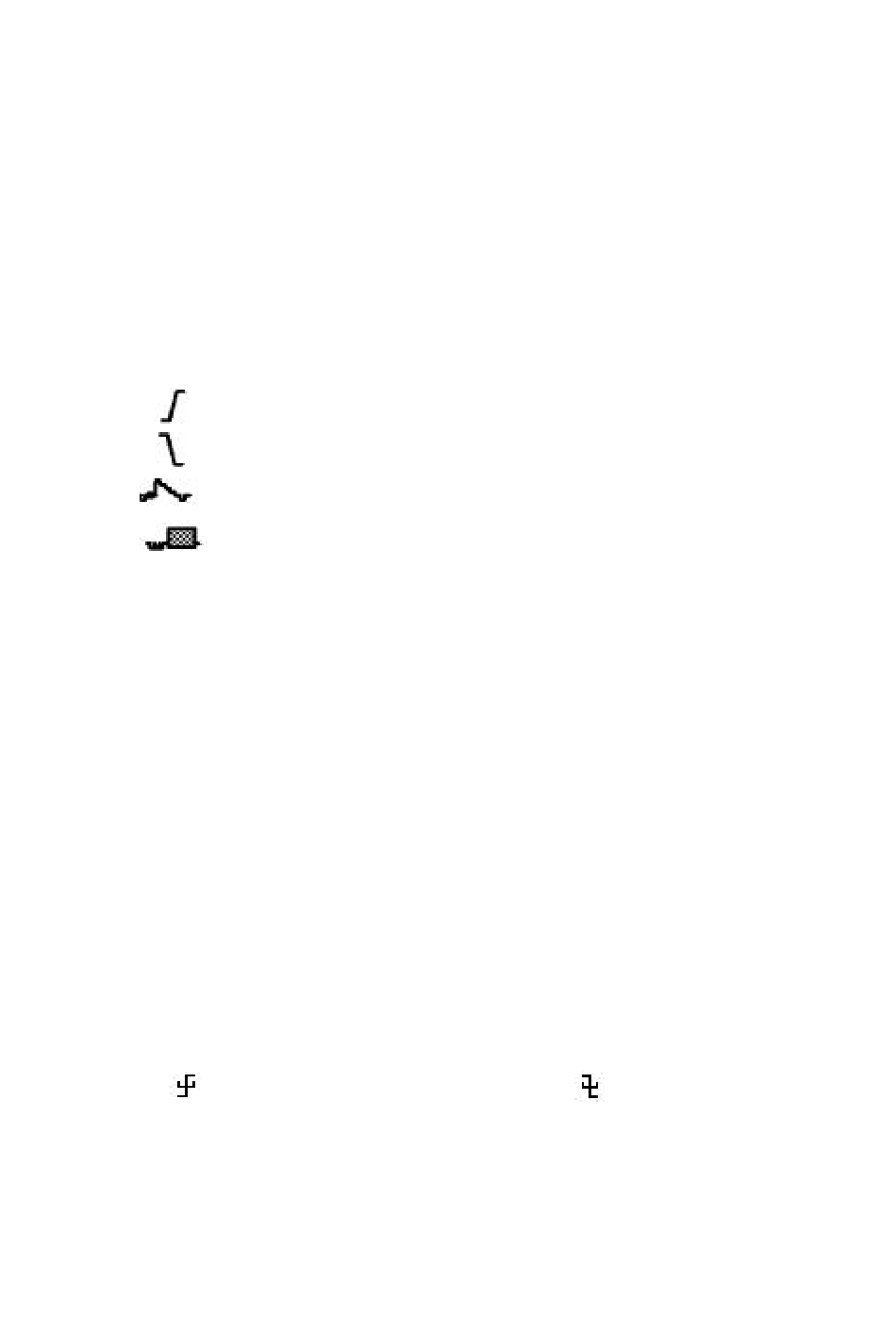

Rising edge triggering
Falling edge triggering
Video line synchronous triggering
Video field synchronous triggering
15
value, "TR" the Cycle
