Mean: The arithmetic mean over the entire waveform.
PK-PK: Peak-to-Peak Voltage.
RMS: The true Root Mean Square voltage over the entire
waveform.
Max: The maximum amplitude. The most positive peak voltage
measured over the entire waveform.
Min: The minimum amplitude. The most negative peak voltage
measured over the entire waveform.
Vtop: Voltage of the waveform's flat top, useful for square/pulse
waveforms.
Vbase: Voltage of the waveform's flat base, useful for
square/pulse waveforms.
Vamp: Voltage between Vtop and Vbase of a waveform.
OverShoot: Defined as (Vmax-Vtop)/Vamp, useful for square and
PreShoot: Defined as (Vmin-Vbase)/Vamp, useful for square and
pulse waveforms.
Cycle RMS: The true Root Mean Square voltage over the first

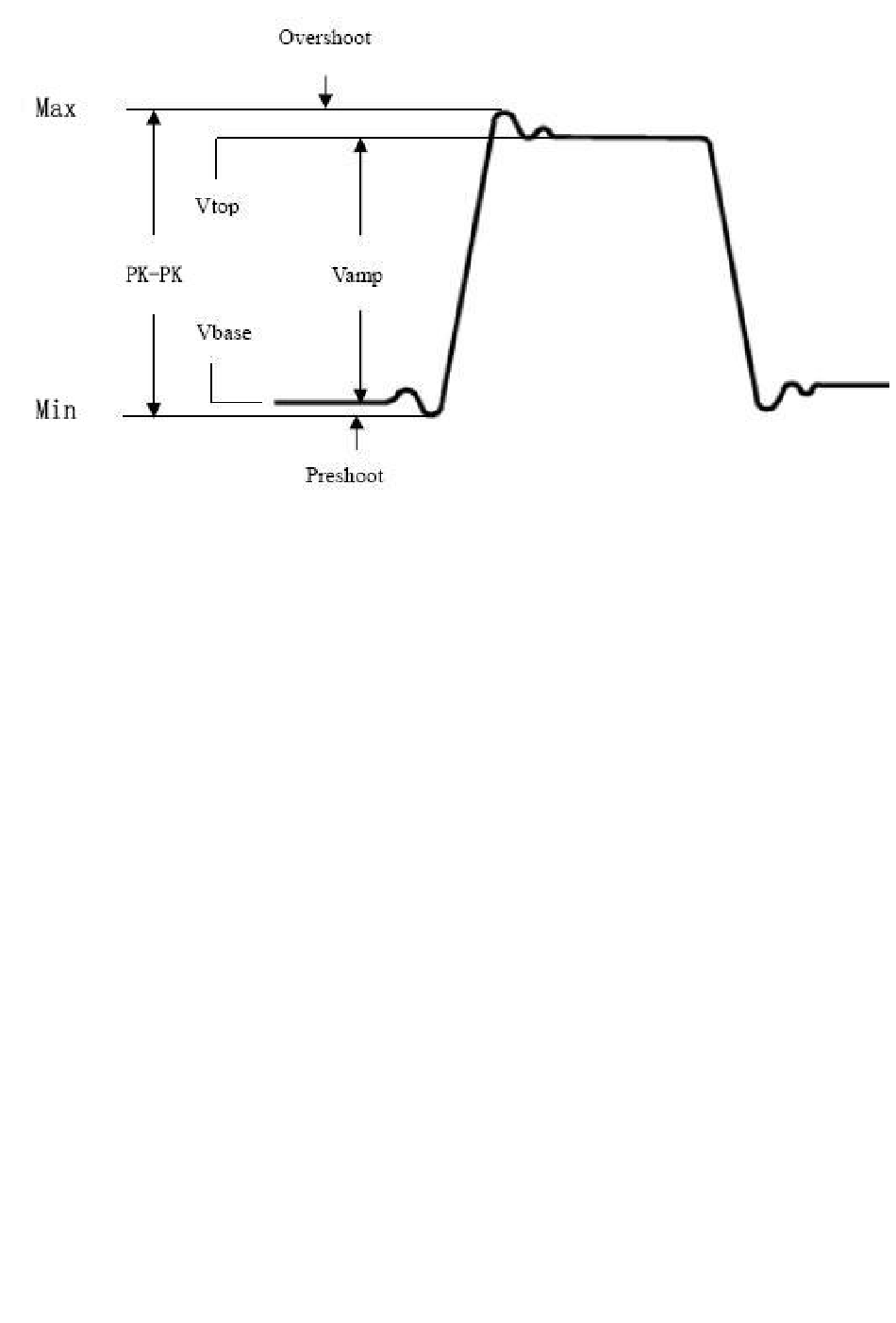

Figure 4- 13
pulse waveforms.
