-D width: The width of the first negative pulse in the 50%
amplitude points.
+Duty: +Duty Cycle, defined as +Width/Period.
-Duty:-Duty Cycle, defined as -Width/Period.

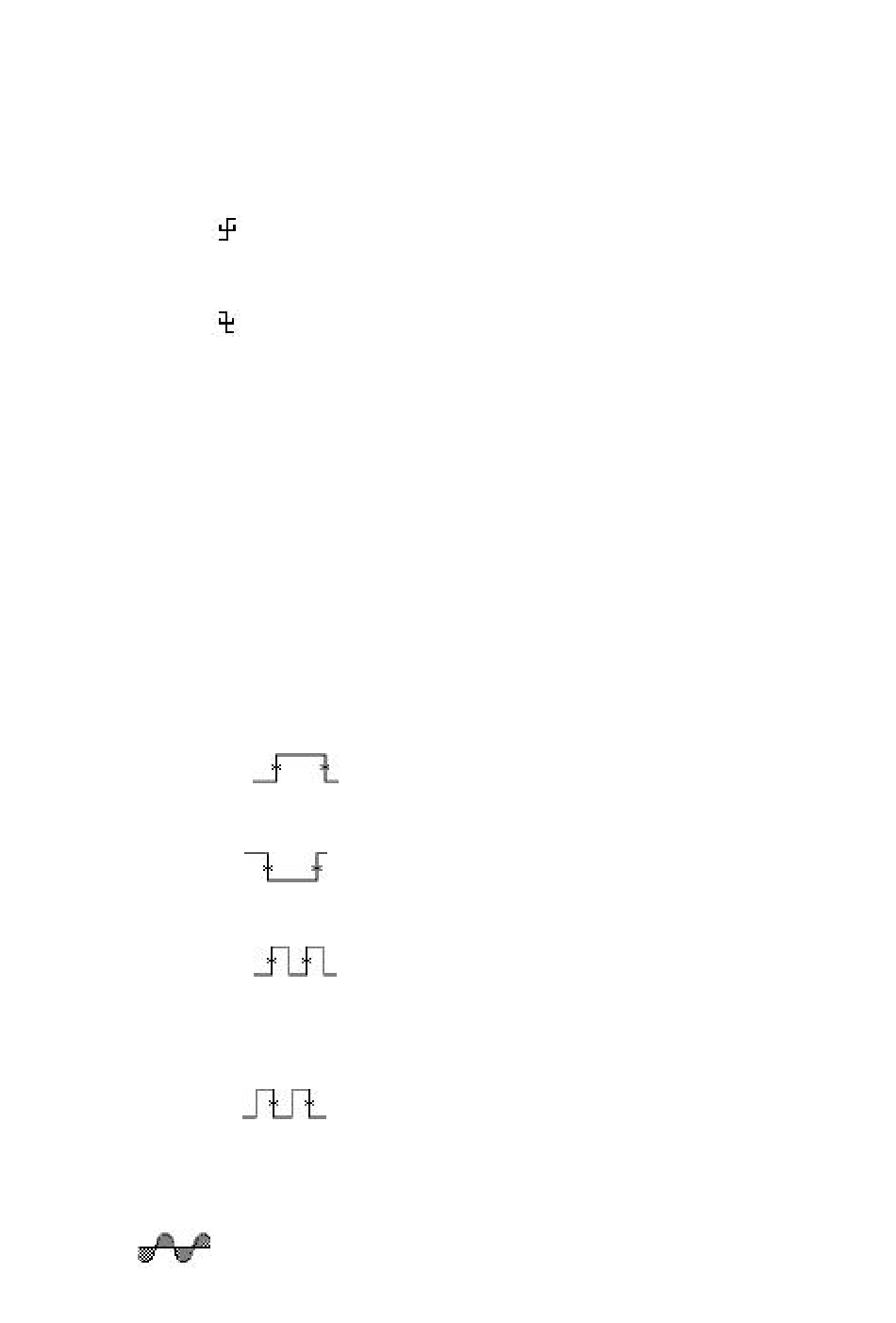

Delay A→B : The delay between the two channels at the rising
edge.
Delay A→B : The delay between the two channels at the falling
edge.
Screen Duty: Defines as (the width of the positive pulse)/(Entire
period)
Phase: Compare the rising edge of CH1 and CH2, calculate
phase difference of two channels.
Phase difference=(Delay between channels at the rising
edge÷Period)×360°.
Other measurements

+PulseCount

: The number of positive pulses that rise
above the mid reference crossing in the waveform.
-PulseCount
: The number of negative pulses that fall
below the mid reference crossing in the waveform.
RiseEdgeCnt
: The number of positive transitions from
the low reference value to the high reference value in the
waveform.
FallEdgeCnt
: The number of negative transitions from
the high reference value to the low reference value in the
waveform.
Area : The area of the whole waveform within the screen
