2. Select XY Mode as ON or OFF in the right menu.
Counter
It is a 6-digit single-channel counter. The counter can only measure
the frequency of the triggering channel. The frequency range is from
2Hz to the full bandwidth. Only if the measured channel is in Edge
mode of Single trigger type, the counter can be enabled. The

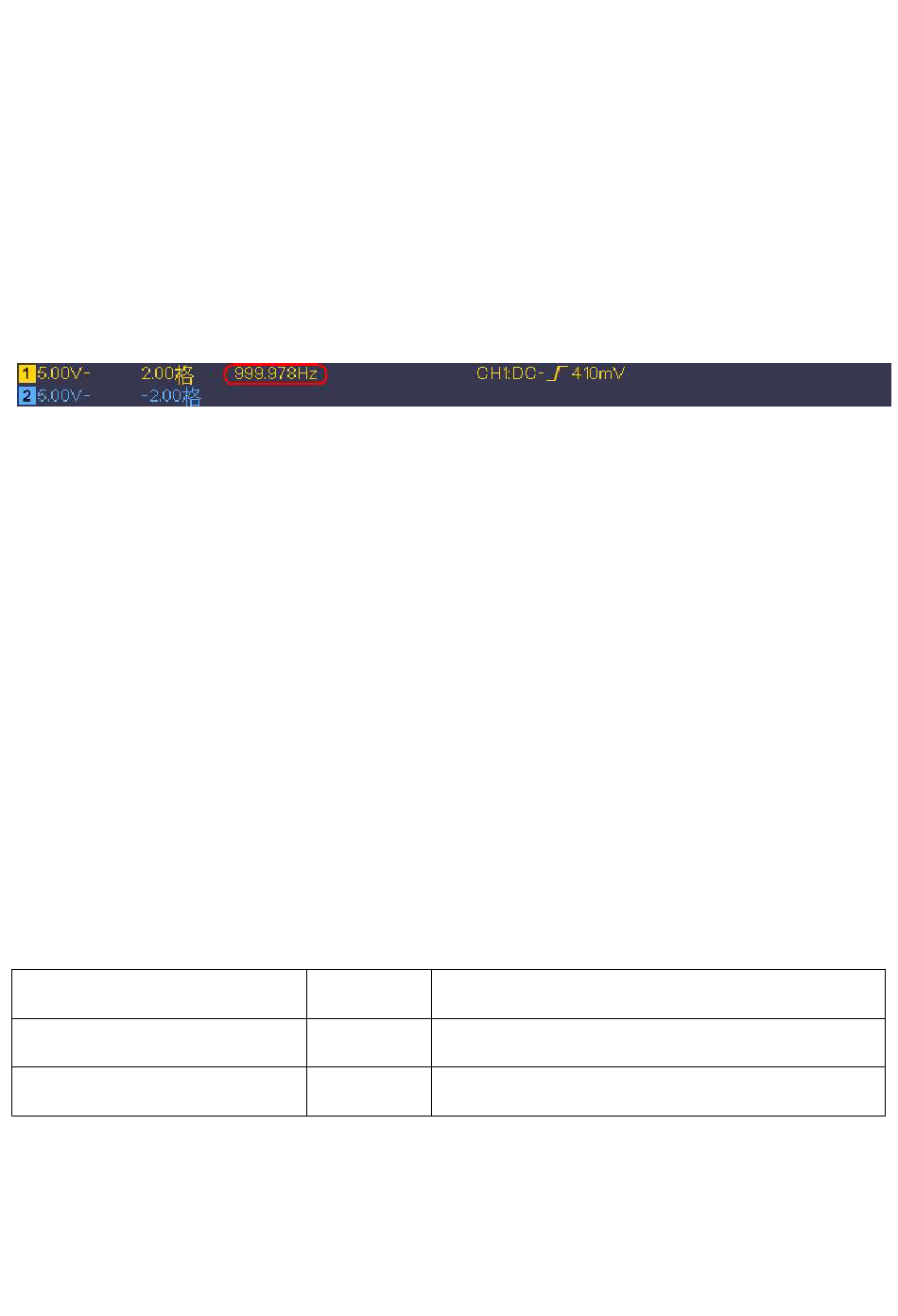

counter is displayed at the bottom of the screen.
Operation steps:
1. Push Trigger Menu button, set the trigger type to Single, set the
trigger mode to Edge, select the signal source.
2. Push the Acquire button to show the right menu.
3. Select Counter as ON or OFF in the right menu.

How to Save and Recall a Waveform

Push the Utility button, select Function in the right menu, select
Save in the left menu. By selecting Type in the right menu, you can
save the waveforms, configures or screen images.
When the Type is selected as Wave, the menu is shown as the
following table:
Function Menu
Function
Type
Setting Description
Save
Display the save function menu
Wave
Choose the saving type as wave.
48
