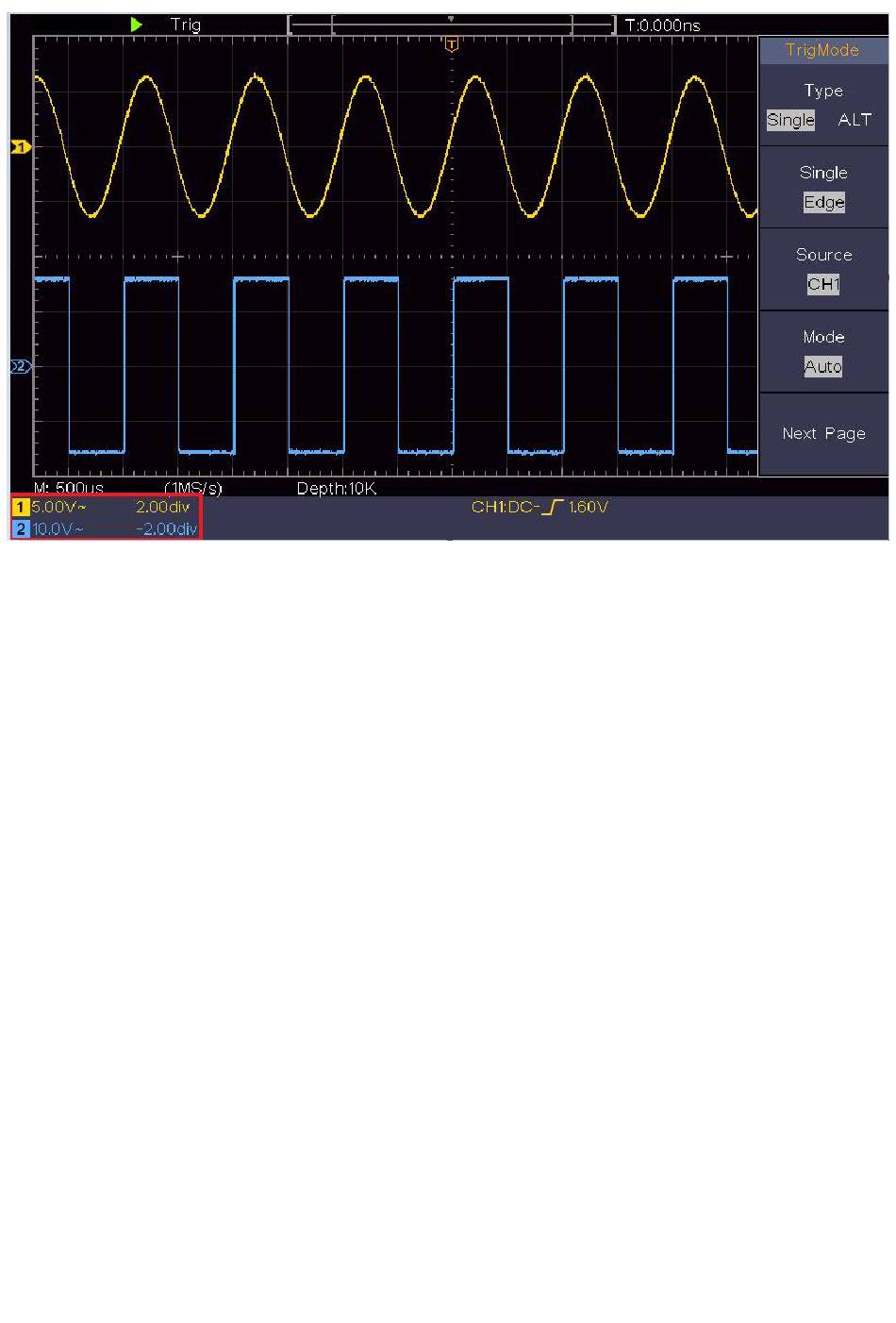

Figure 4- 1 Information about Vertical Position

How to Set the Horizontal System

The HORIZONTAL CONTROLS includes the Horizontal HOR
button and such knobs as Horizontal Position and Horizontal
Scale.
1. Horizontal Position knob: this knob is used to adjust the
horizontal positions of all channels (include those obtained from
the mathematical manipulation), the analytic resolution of which
changes with the time base.
2. Horizontal Scale knob: it is used to set the horizontal scale
factor for setting the main time base or the window.
3. Horizontal HOR button: push it to switch between the normal
mode and the wave zoom mode. For more detailed operations,
see the introductions below.
38
