Installation guide / User manual
AX Plus 5-15kW 3ph Hybrid Inverter

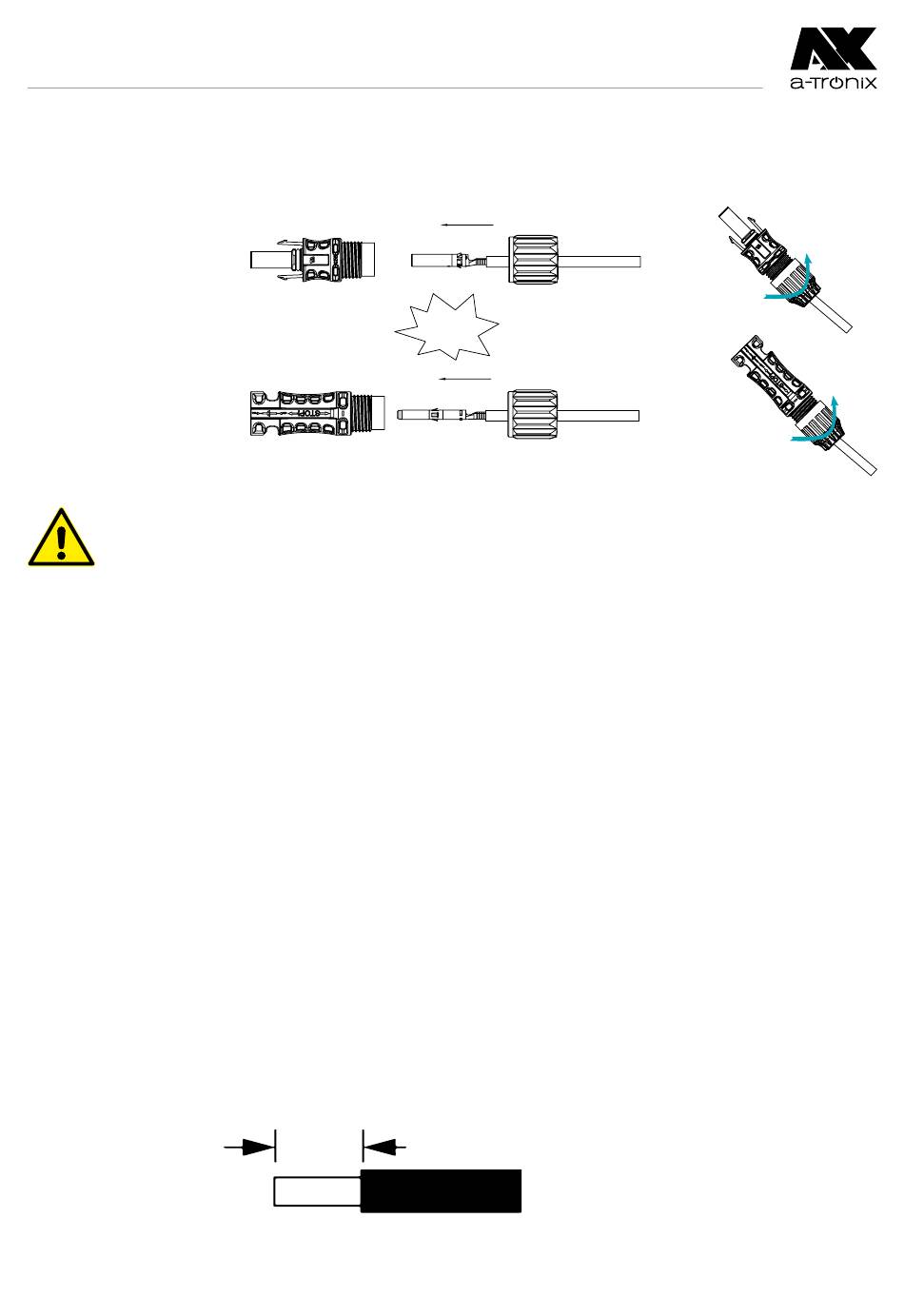

• Insert pin contact through the cable nut to assemble into back of the male or
female plug. When you feel or hear a „click" the pin contact assembly is seated
correctly.
• Unlock the DC connector
DANGER
Before separating the DC connector, make sure that there is no current
on the DC connector. You can measure it with current clamp or
disconnect the DC switch, otherwise serious safety accidents may occur.
Make sure that the power cable connected to the inverter is connected
vertically and that the vertical length is greater than 30 cm. If the cable
is bent close to the terminals, it may cause poor line contact and result
in burnt terminals.
- Use the specified wrench tool.
- When separating the DC + connector, push the tool down from the top.
- When separating the DC - connector, push the tool down from the bottom.
- Separate the connectors by hand.
6.3 Battery Connection
• Turn off the DC switch.
• Choose 8 AWG wire to connect the battery.
• Trim 6mm of insulation from the wire end.
atx054en0225
6.0mm
Strip length
Click
(8AWG)
6mm
2
Page 99
