a-TroniX AX Plus 5kW Installations- Und Bedienungsanleitung Seite 81

Installation guide / User manual
AX Plus 5-15kW 3ph Hybrid Inverter

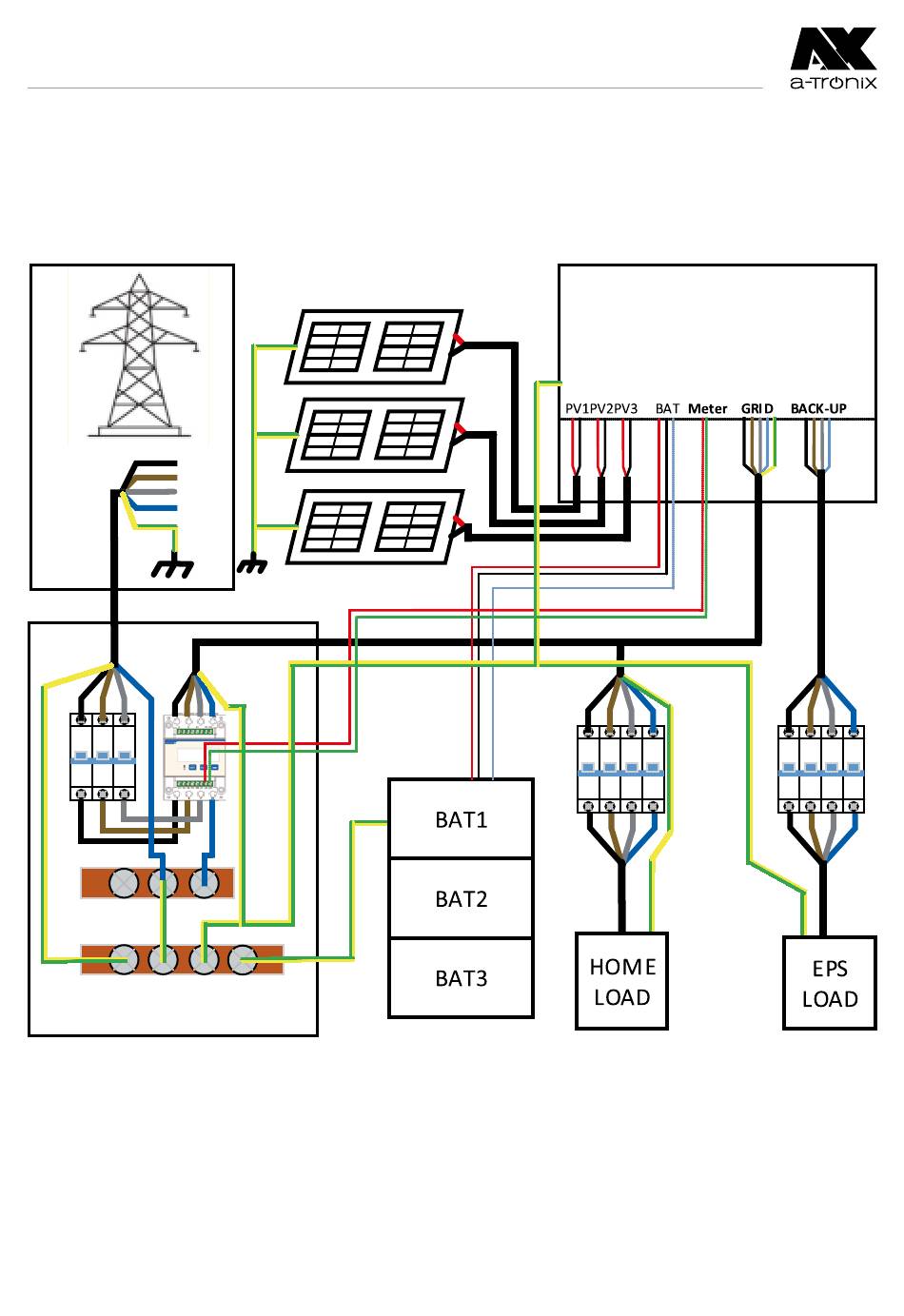

This diagram is an example for an application that neutral connects with the PE
in a distribution box.
For countries such as Australia, New Zealand, South Africa, etc, please follow
local wiring regulations.
L L 1 1
G G R R I I D D
L L 2 2
L L 3 3
N N
P P E E
atx054en0225
AX Plus
Page 81
