Installation guide / User manual
AX Plus 5-15kW 3ph Hybrid Inverter

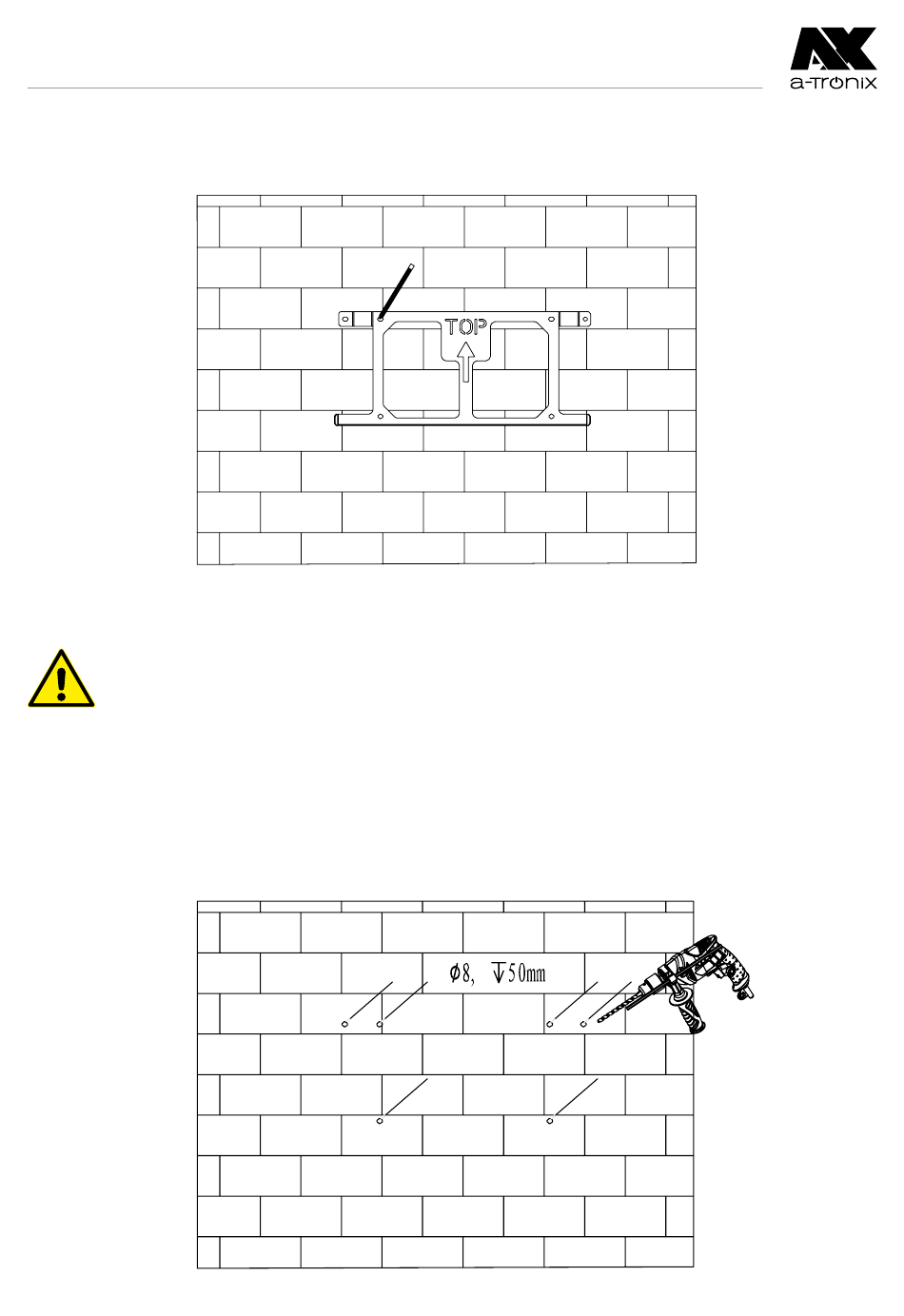

• Before drilling holes, please ensure the distance between the machine and
nearby objects.
• Drill holes with electric drill, make sure the holes are at least 50mm deep and
8mm wide, and then tighten the expansion tubes.
CAUTION
Please pay attention to safety when using the tools. Unsafe use of the
drilling tools may cause damage to the body.
• Please select solid brick-concrete structure and concrete wall for installation
location. If other types of wall are selected, the wall must be made of fire-
retardant materials and meet the load bearing requirements of the equipment.
atx054en0225 Page 93
