Installation guide / User manual
AX Plus 5-15kW 3ph Hybrid Inverter
EMS 485:
Supports Modbus485 communication, which can be used to read and control
machines. The specific protocol is provided by the manufacturer.
Meter 485:
Similar to the Meter485 interface, this interface is designed to be redundant.
Wifi 485:
For internal testing.
Estop port:
When short circuiting ESTOP and GND, the machine will stop working.
DY OUT:
The machine has two DY OUT interfaces, with two internal contacts of relays hat
can drive loads of 230VAC1A/50VDC0. 5A, and can be used for powering on and
starting heat pumps.
PARA port RJ45:
Used for parallel communication, it is necessary to set the DIP switch to the ON
state during parallel operation. +12V and RY-Out are used to control external relay
switches and cannot be used for other functions.

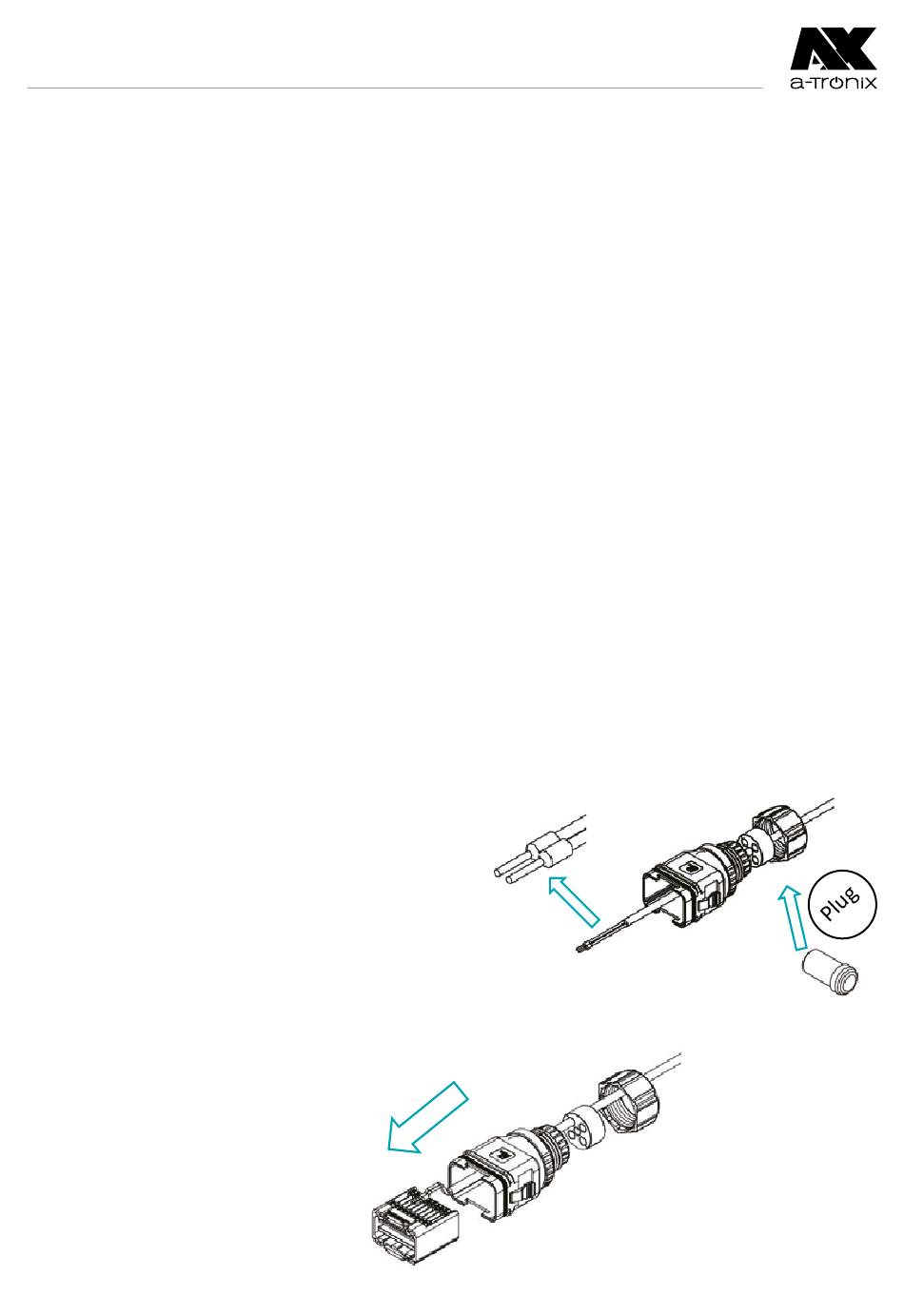

24PIN Wiring
Installation Procedure
Remove the plug inside the plug and
thread the terminal according
to the sequence shown in the illustration.
Insert the wires into the corresponding terminals.
atx054en0225
Page 109
