Installation guide / User manual
AX Plus 5-15kW 3ph Hybrid Inverter

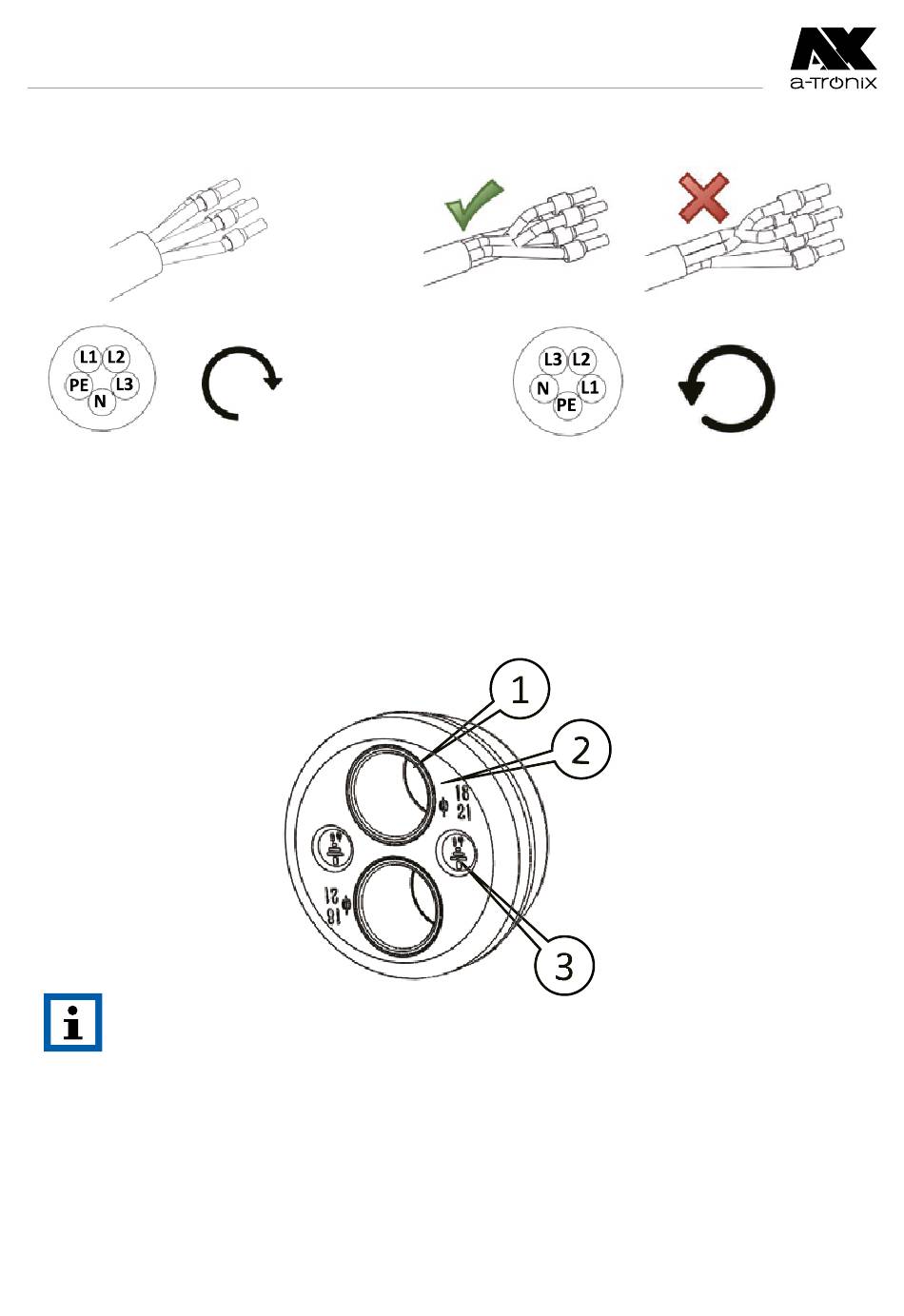

2. Wiring Precautions
3. Seal accessory option
A. Ø18: The recommended outer diameter of the cable is 17.5-18.5 mm.
B. Ø21: The recommended outer diameter of the cable is 19-21 mm.
C. Ø6: When the four wire system is used, the special hole for the ground wire
is recommended to be applicable to the outer diameter of the cable.
(5~6mm)
NOTE:
If the outer diameter of the cable is greater than 18mm, remove part 1.
When 4-core wire is used, Ø6 holes are ground wire through holes.
Remove part 3.
Page 104 atx054en0225
