Installation guide / User manual
AX Plus 5-15kW 3ph Hybrid Inverter

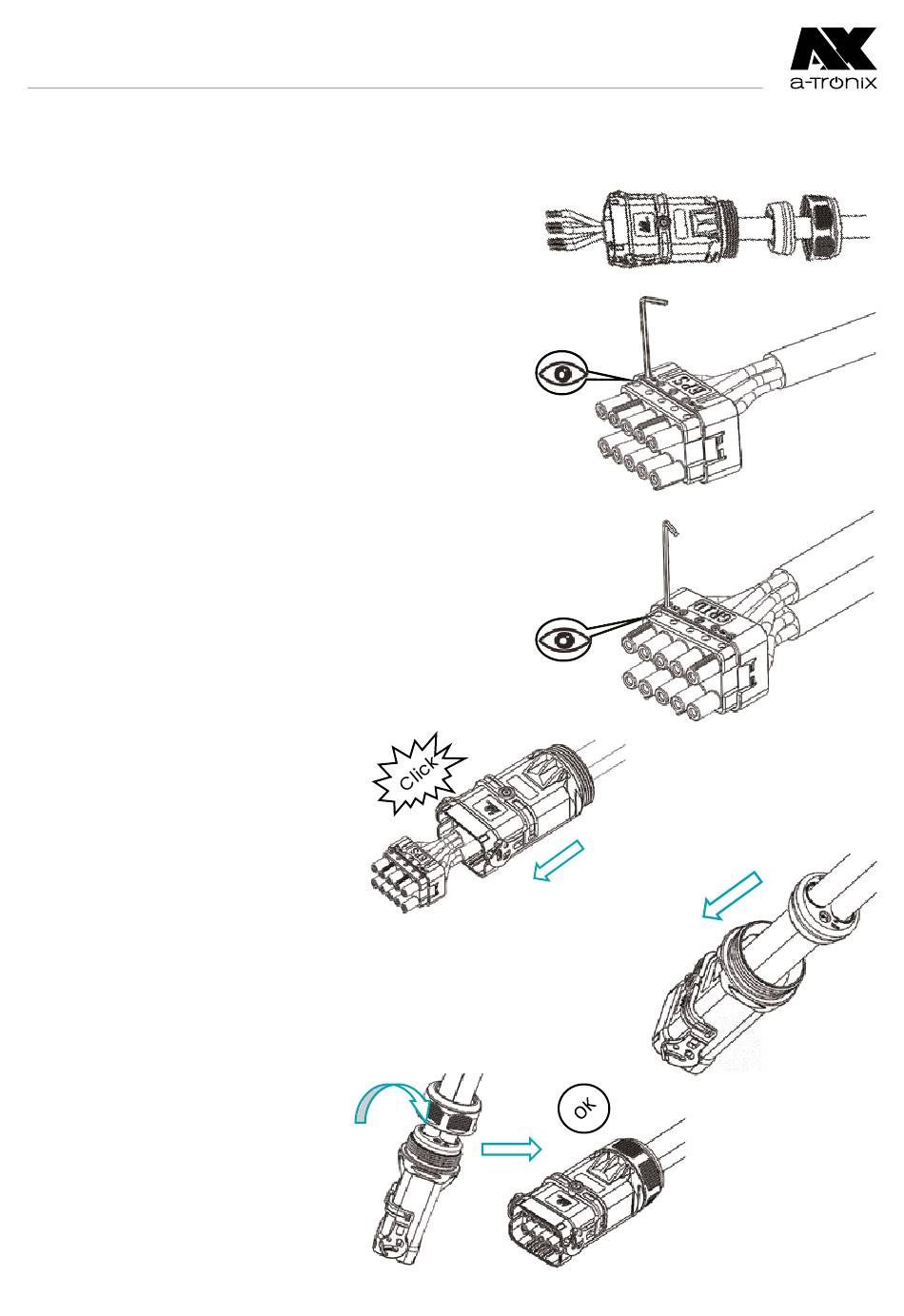

6.7 Installation steps for 5-core wire
Thread the stripped wire into the lock nut
and the main body in turn.
(The flexible wire needs to be riveted to the
insulated terminal.)
First, insert the EPS end cable into the EPS
end of the rubber core. After the cable is in
place through the perspective hole, tighten
the screw using an S2.5 hexagon wrench
with a torque of 2.5±0.1N·m.
Insert the GRID end-core wire into the
GRID end of the rubber core, observe the
perspective hole cable in place, use S2.5
hex wrench to tighten the screws, torque
2.5±0.1N·m.
Insert the main body into the
rubber core and hear the
„click" sound.
Seal plugin to main body.
Tighten the nut with an open-
ended wrench.
(Torque 10.0±0.1N·m,
Complete the installation)
atx054en0225 Page 105
