Installation guide / User manual
AX Plus 5-15kW 3ph Hybrid Inverter

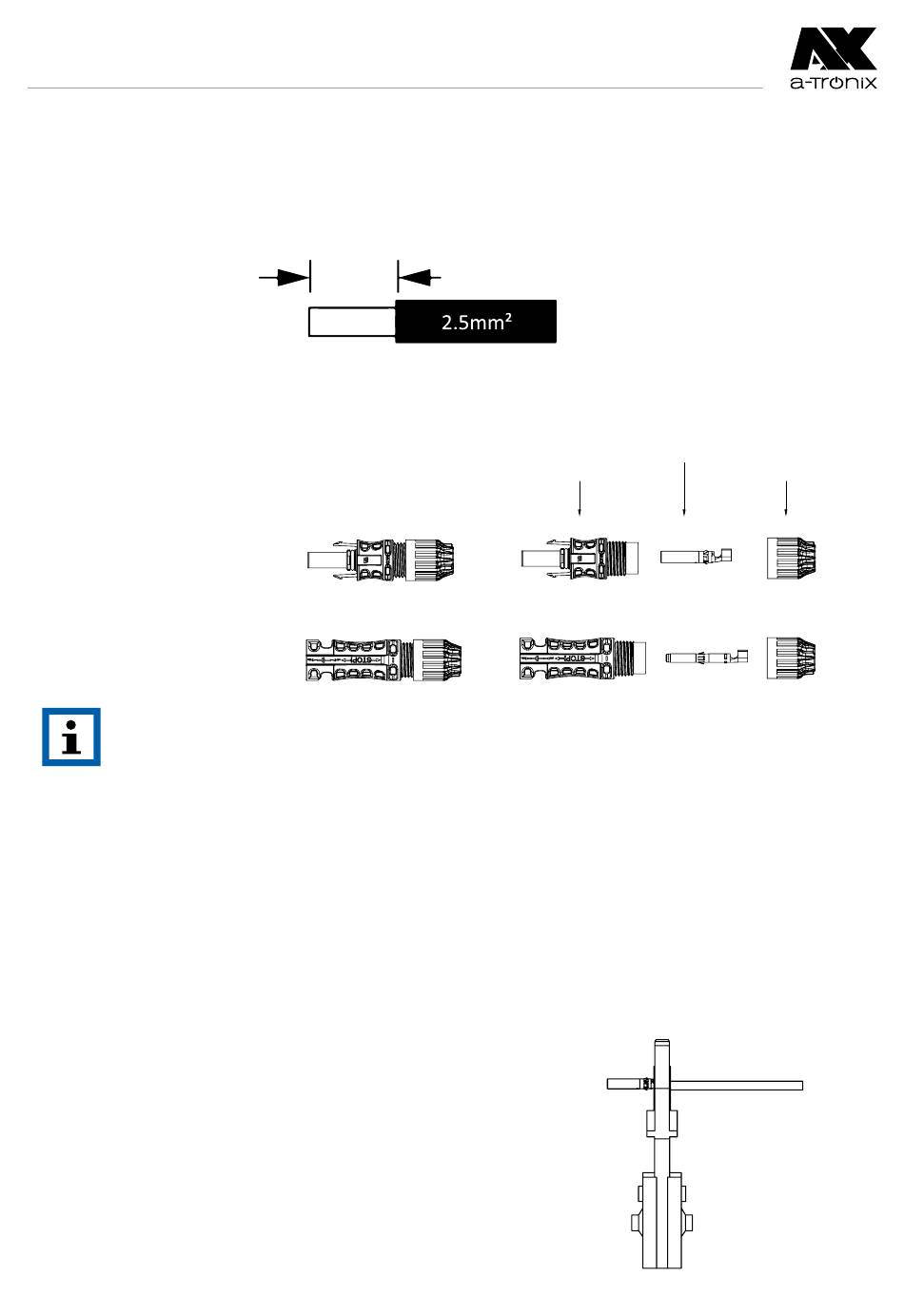

Step 2: PV Wiring
• Turn off the DC switch.
• Choose 12 AWG wire to connect the PV module.
• Trim 6mm of insulation from the wire end.
• Separate the DC connector (PV) as below.
NOTE
When making PV terminals, please make sure that the copper cores of PV
positive and PV negative terminals and the copper cores on the inverter
can be inserted, and use a multimeter to measure whether the positive
and negative terminals are correct, otherwise the machine may not work
normally or individual strings may not work.
The maximum open-circuit voltage of PV should be less than 900V, otherwise an
error may be reported when mppt cannot be traced.
• Insert striped cable into pin contact and ensure all conductor strands are
captured in the pin contact.
• Crimp pin contact by using a crimping plier.
Put the pin contact with striped cable into the
corresponding crimping pliers and crimp the contact.
Page 98
6.0mm
Strip length
D-
D+
(12AWG)
Pin contact
Plug
cable nut
atx054en0225
