Installation guide / User manual
AX Plus 5-15kW 3ph Hybrid Inverter
Mounting Steps

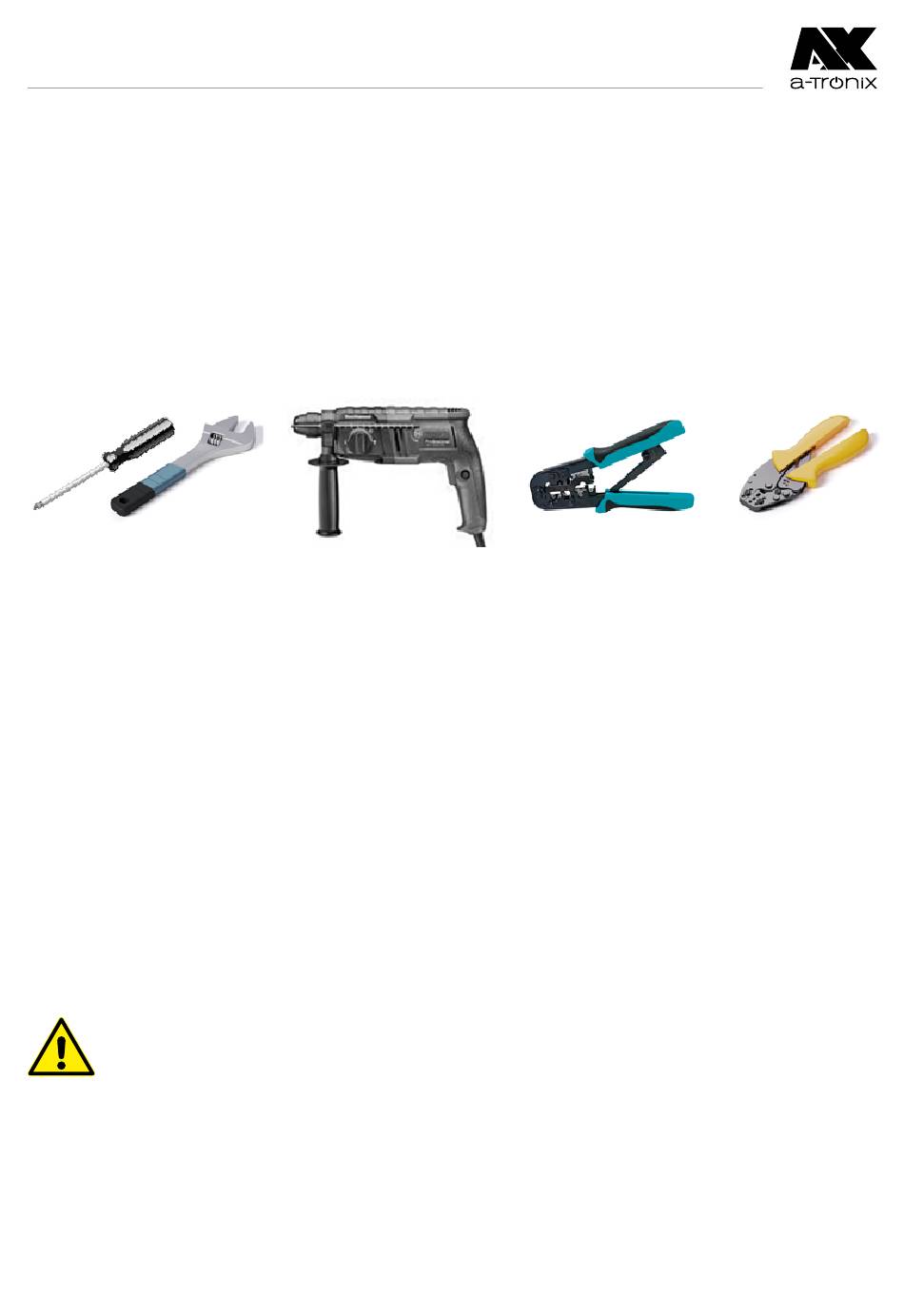

Tools required for installation:
• Manual wrench;
• Electric drill (drill bit set 8mm);
• Crimping pliers;
• Stripping pliers;
• Screwdriver.
Installation angle requirements:
• Do not tilt the energy storage forward, horizontally, upside down, backward and
sideways.
Installation space requirements:
• When installing energy storage, ensure that there are no other equipment
and flammable and explosive materials around, and reserve enough space to
ensure the installation heat dissipation and safety isolation requirements.
• During wall-mounted installation, no items are allowed to be placed under the
energy storage.
1. Fix the bracket on the wall
• Choose the place you want to install the inverter. Place the bracket on the wall
and mark the position of the 6 holes from bracket
DANGER
Before drilling, please make sure to avoid the water and electricity lines
embedded in the wall to avoid danger.
atx054en0225
Page 91
