Installation guide / User manual
AX Plus 5-15kW 3ph Hybrid Inverter

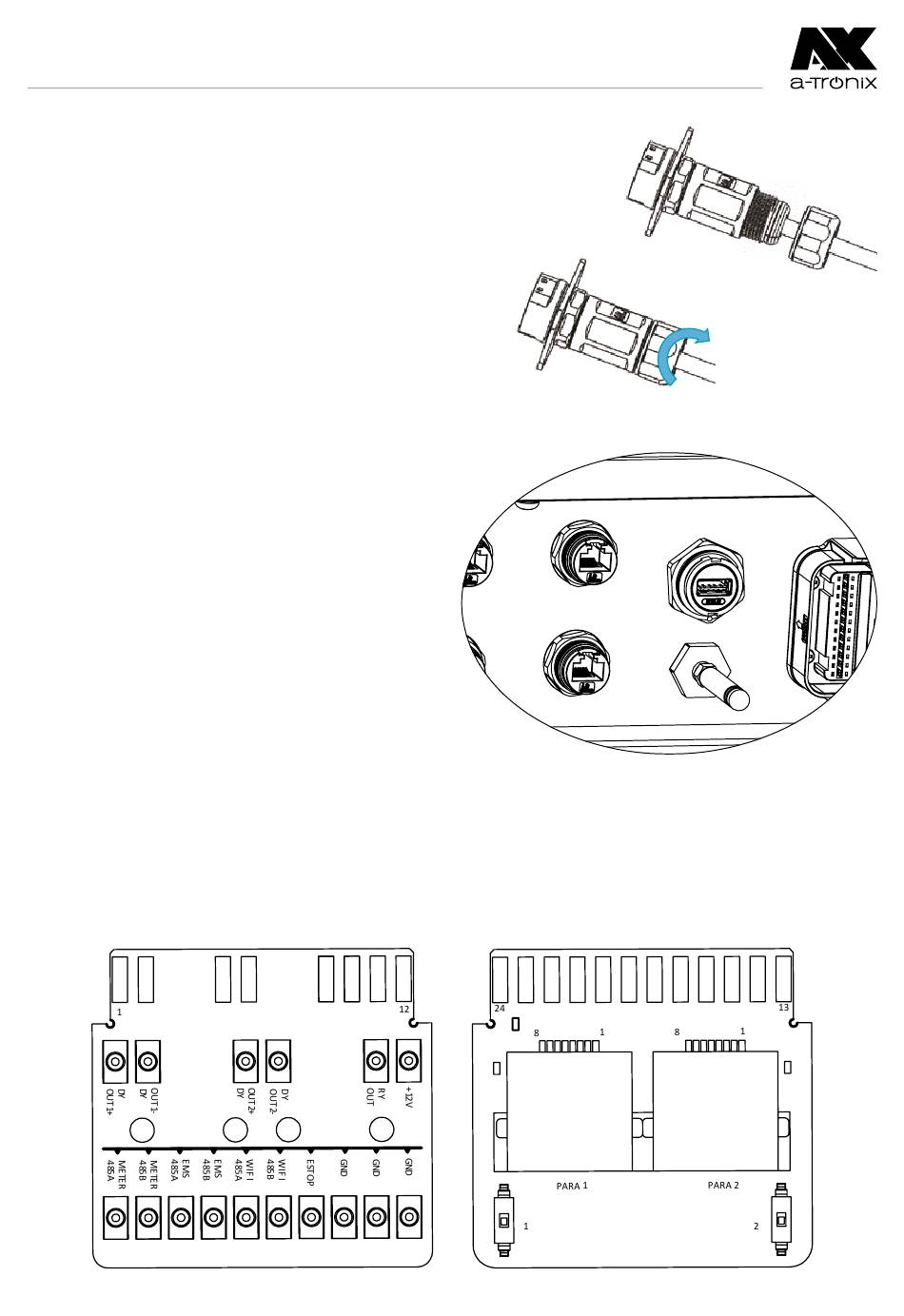

Insert the sealing plug into the main body of RJ45
cable end connector.
Tighten the connector's nut
by the open-ended wrench
with a torque 1.2±0.2N·m
6.9 Antenna Connection
Tighten the Antenna's nut
by the open-ended wrench
with a torque 1.2±0.3N·m.
6.10 COM connection
Introduction to COM port:
The COM port mainly includes EMS485, Meter485, WIFI485, Estop port, two relay
output ports, two parallel ports and a toggle switch, +12V and corresponding
relay output signals.
The ripple control function is described below.
