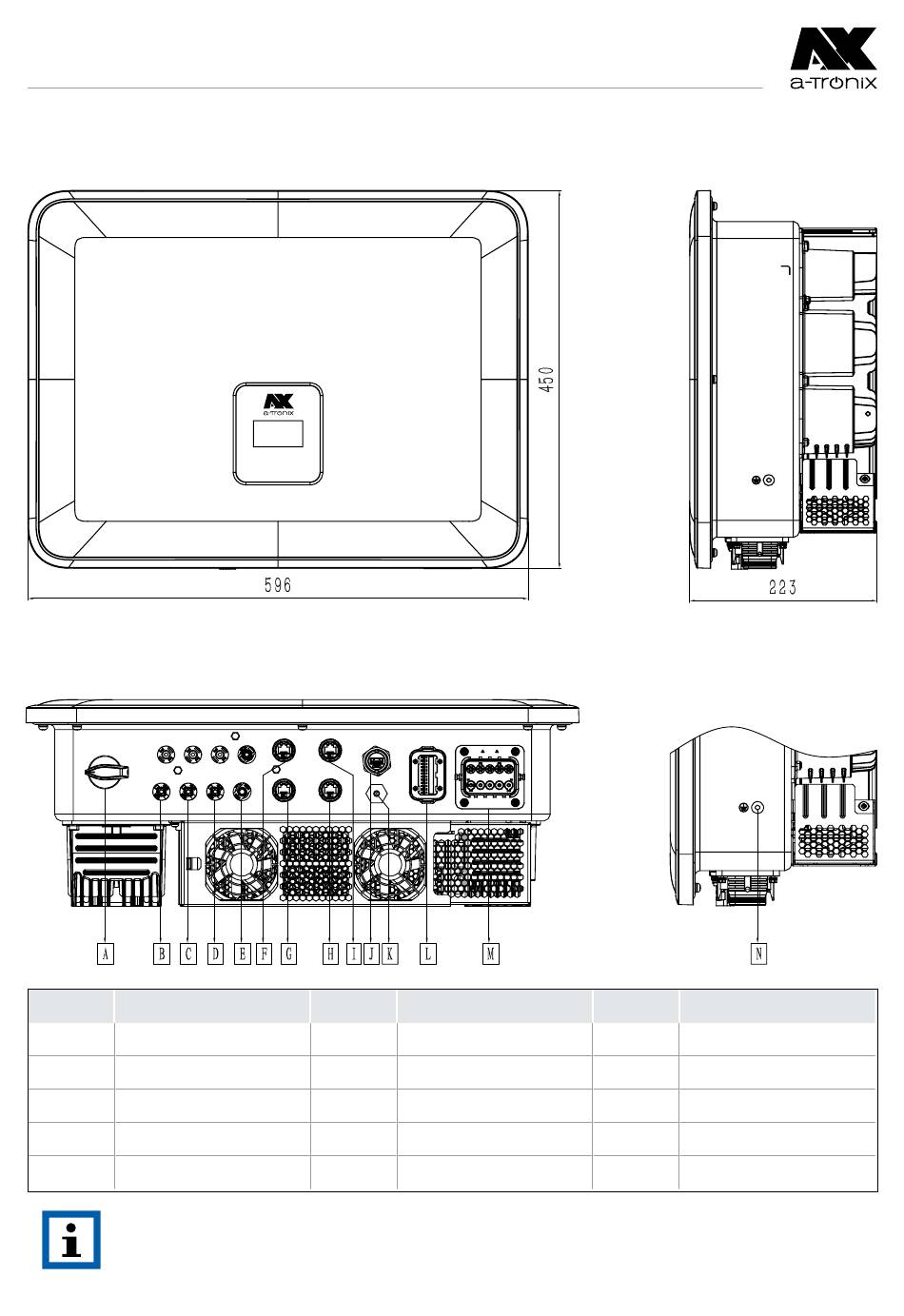

3.2 Dimensions
3.3 Terminals of inverter
Item Description
A DC Switch
B PV1
C PV2
D PV3
E BAT
NOTE:
Only authorized personnel are permitted to set the connection.
Page 84
Item Description
F BMS
G LAN
H DRM
I Meter
J COMM/DONGLE
Item Description
K Antenna
L COM
M EPS/GRID
N Grounding Screw
