Installation guide / User manual
AX Plus 5-15kW 3ph Hybrid Inverter
RS485

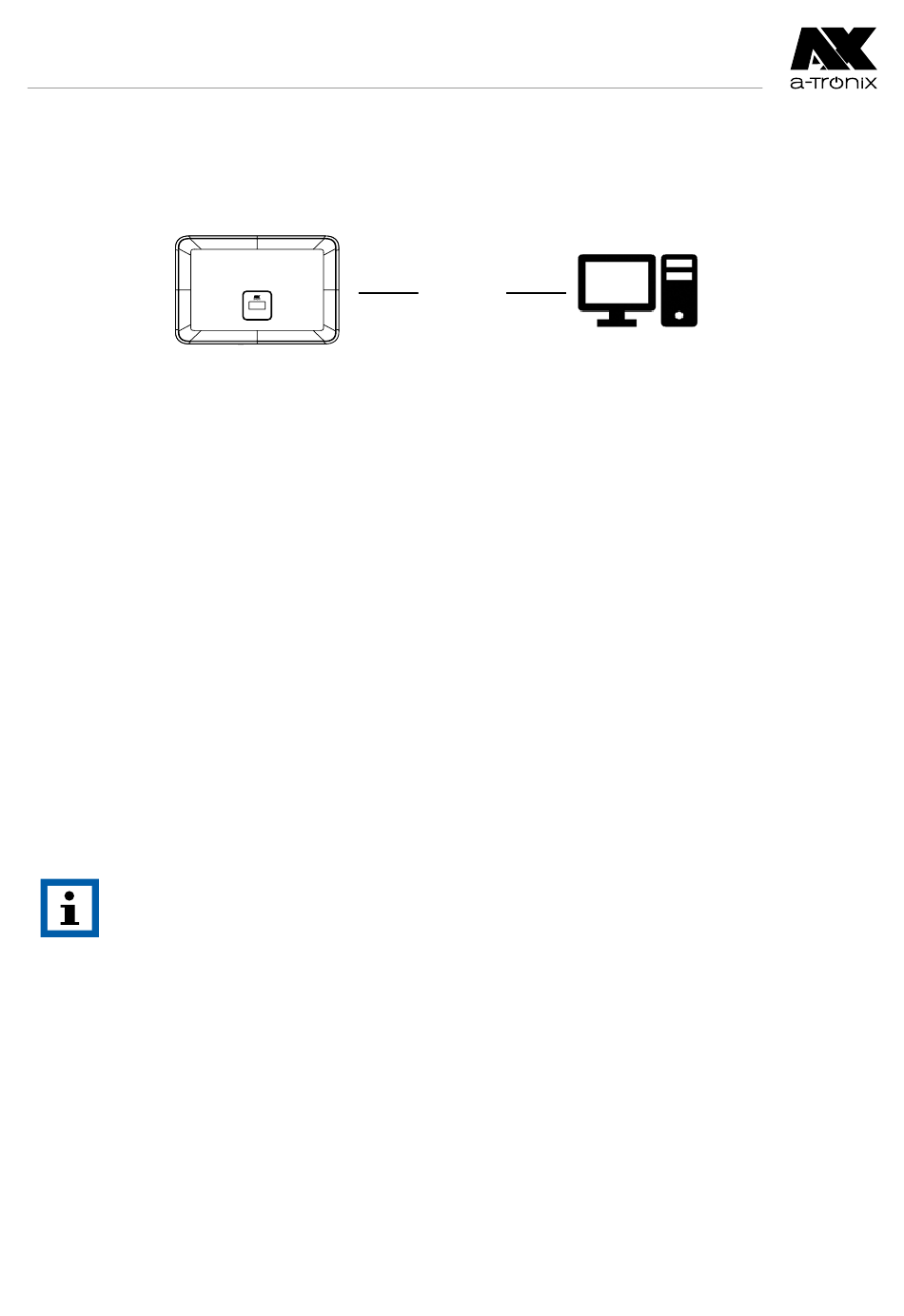

RS485 is a standard communication interface which can transmit the real time
data from inverter to PC or other monitoring devices.
Meter
The inverter has integrated export limitation functionality.
To use this function, a power meter must be installed.
For Meter installation, please install it on the grid side.
Compatible Meter type: DTSU666 (CHINT).
Please check and configure the meter before use:
Addr:
1;
Baud:
9600
Protocol: n.1
Use the meter that comes standard in the box. Non-standard meters of the same
model may not be suitable.
Please refer to the user manual of electricity meter for detailed setting steps.
NOTE
When connecting the electricity meter, please make sure that the way of
the electricity meter is correct, otherwise it will affect the size of the load
obtained by the inverter and affect the normal operation of the inverter.
When the battery is available and can work normally, the machine
provides the self-test function in the direction of the meter, which can
be set in the meter interface.
Page 114
RS485
