Installation guide / User manual
AX Plus 5-15kW 3ph Hybrid Inverter

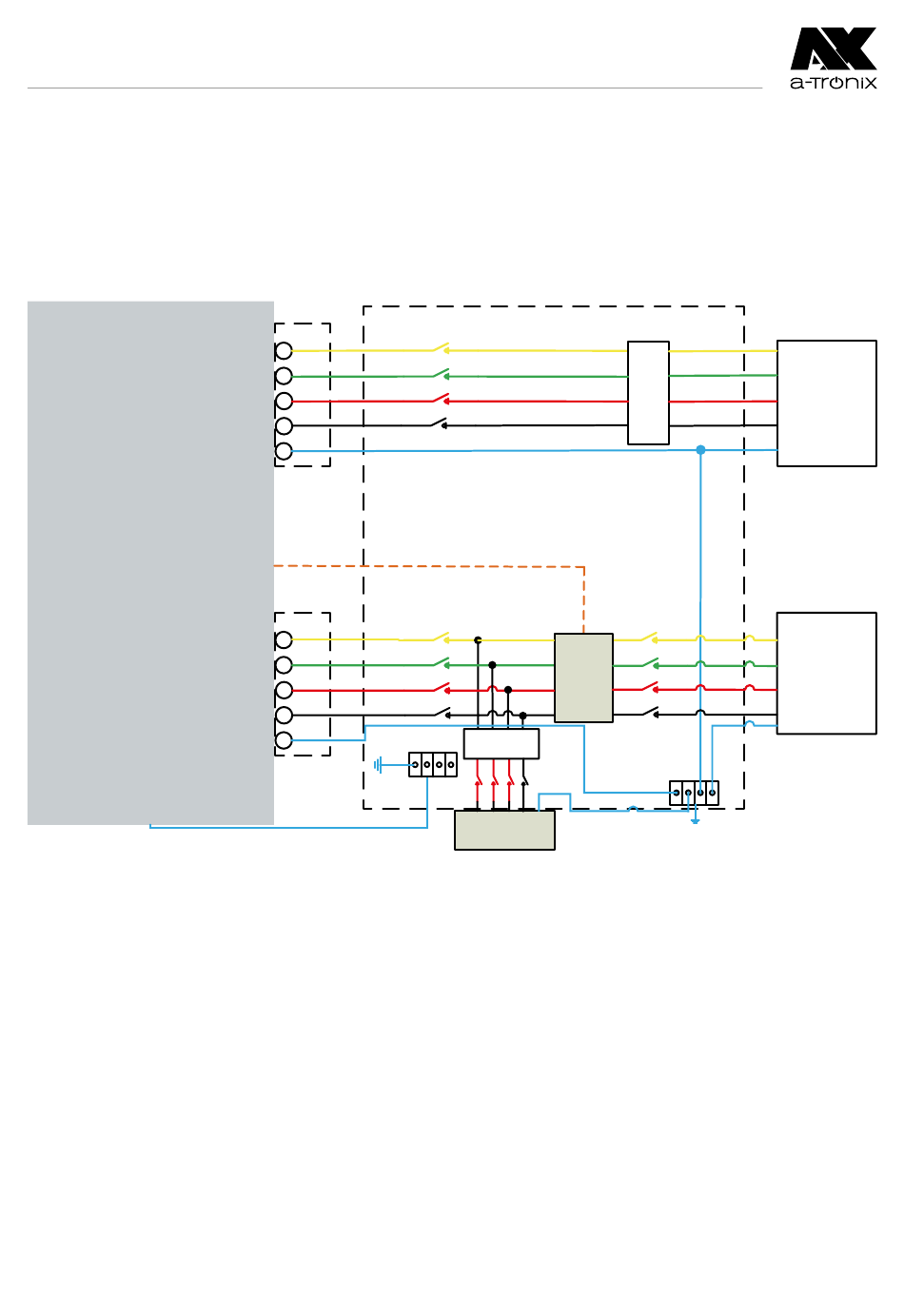

6.13 System Connection Diagrams
For countries such as China, Germany, the Czech Republic, Italy etc. please
follow local wiring regulations.
The diagram is an example for an application in which neutral is separated from
the PE in the distribution box.
Battery Inverter
The Grounding screw hole on the Battery inverter
Page 122
AC Breaker
L1
L2
L3
N
PE
EPS
AC Breaker
L1
L2
L3
N
PE
E - BAR
On-Grid
Distribution Box
RS485
AC Breaker
Smart
Meter
RCD
N-BAR
PE
L1 L2 L3 N
Home Loads
L1
L2
RCD
L3
EPS Loads
N
PE
L1
L2
L3
N
PE
E - BAR
atx054en0225
