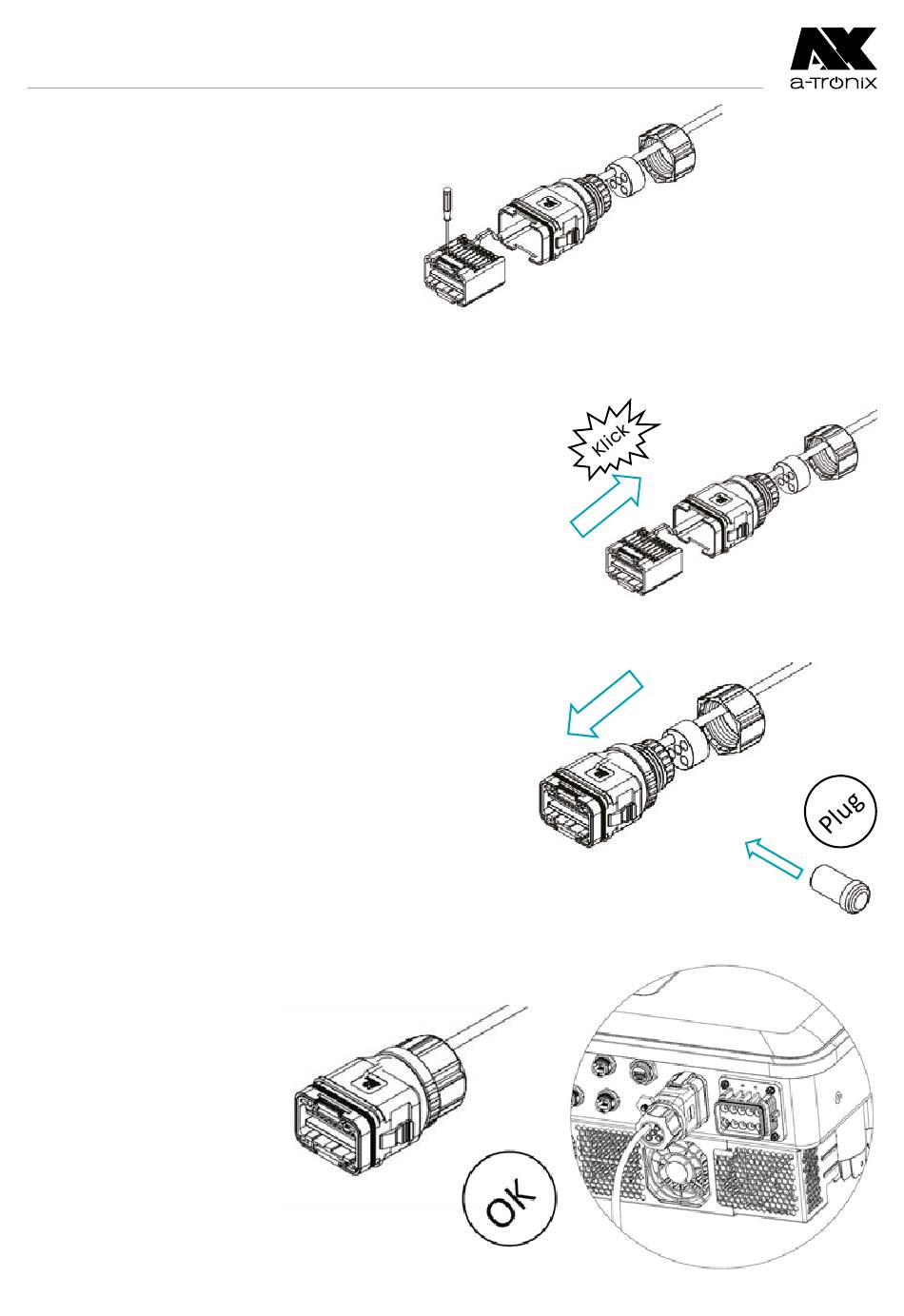

And use a screwdriver to crimp the wire,
screwing torque 1.2+/-0.1N·m.
Arrange the core line,
the rubber core area must not appear
to ride the line.
The rubber core is loaded into the main body and
accompanied by a „click" sound.
Install the plug into the main body and plug the
holes without wires with a plug.
Lock wire nut screwed onto the body,
torque 2.5+/-0.1N-m, then complete installation.
