Installation guide / User manual
AX Plus 5-15kW 3ph Hybrid Inverter
8. Operation

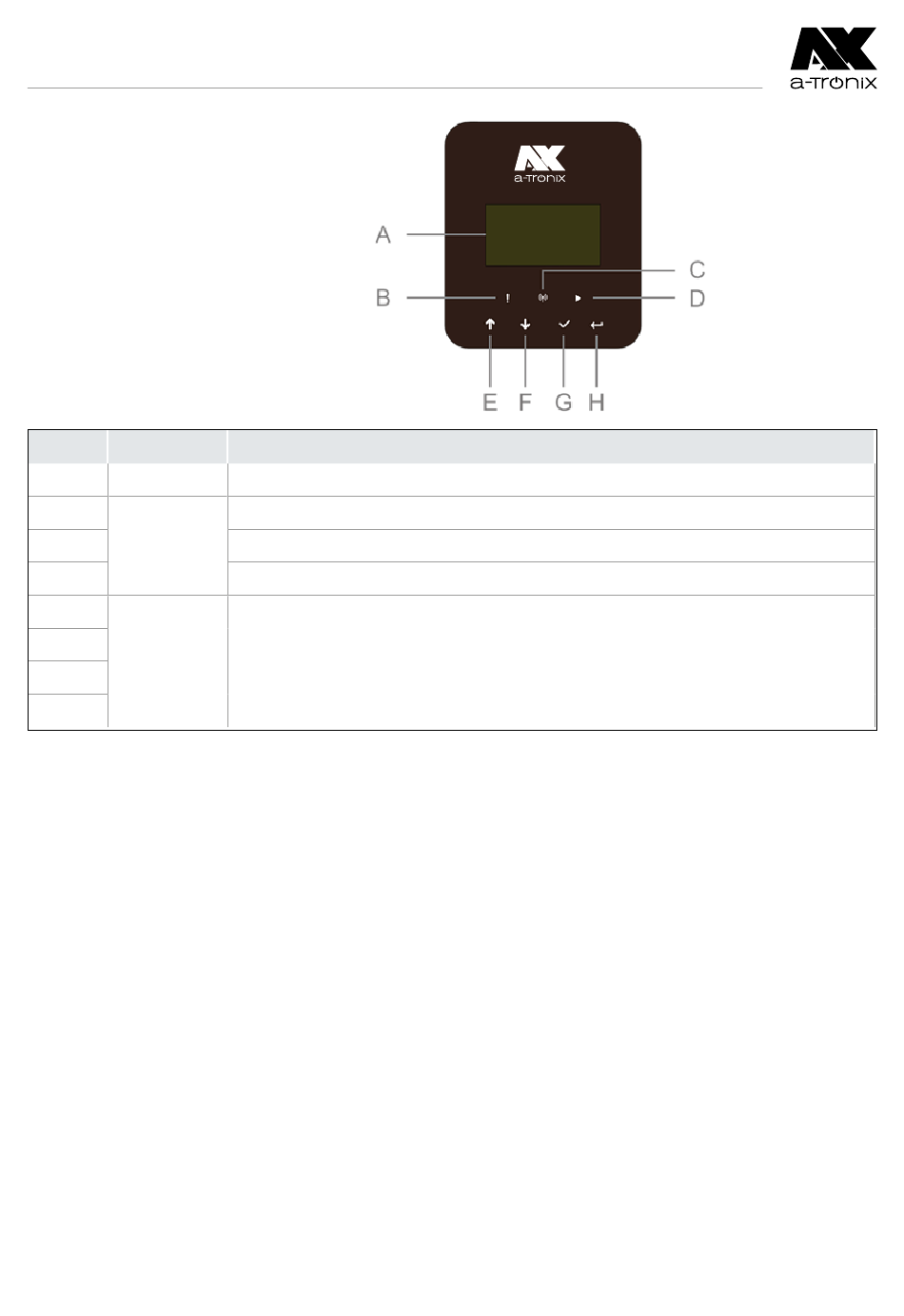

8.1 Control Panel
Object
Name
A
LCD screen Display the information of the inverter.
B
Indicator
C
LED
D
E
F
Function
button
G
H
1. Press and hold the „√" button on the top of the screen and select „stop" to stop
the machine.
2. Disconnect the AC and eps vacs.
3. Rotate DC SWITCH to the off state.
4. Turn off the buttons and control switches on the battery.
5. Wait for the screen on top of the machine to go off.
6. Wait for 5 minutes, this is to ensure that the capacitors inside the machine
discharge.
7. Use a current clamp to make sure there is no current on the DC line.
8. Using the tool on the DC terminal, press the two snaps on the DC terminal and
pull it outward with force at the same time.
9. Make sure there is no PV positive terminal and no voltage above the PV
negative terminal, use a multimeter to measure.
10. Also use a multimeter to measure the PV positive and PV negative terminals
to the PE line above the voltage no voltage.
11. Use a tool to disconnect the AC terminal and the terminal for communication.
atx054en0225
Red: The inverter is in fault mode.
Blue: The inverter is normally connected to the battery.
Green: The inverter is in normal state.
Up button: Move cursor to upside or increase value.
Down button: Move cursor to downside or decrease value.
OK button: Confirm the selection.
Return button: Return the previous operation.
Function
Page 131
