AX Plus 5-15kW 3ph Hybrid Inverter
Introduction to the function of unbalanced load
If the load of each phase in the household load is different, and the power of
each phase output by the inverter is the same, there will be one phase output
and one phase input. In order to avoid this situation, the unbalanced load can
be turned on. The use method is to enable in the balance load interface.

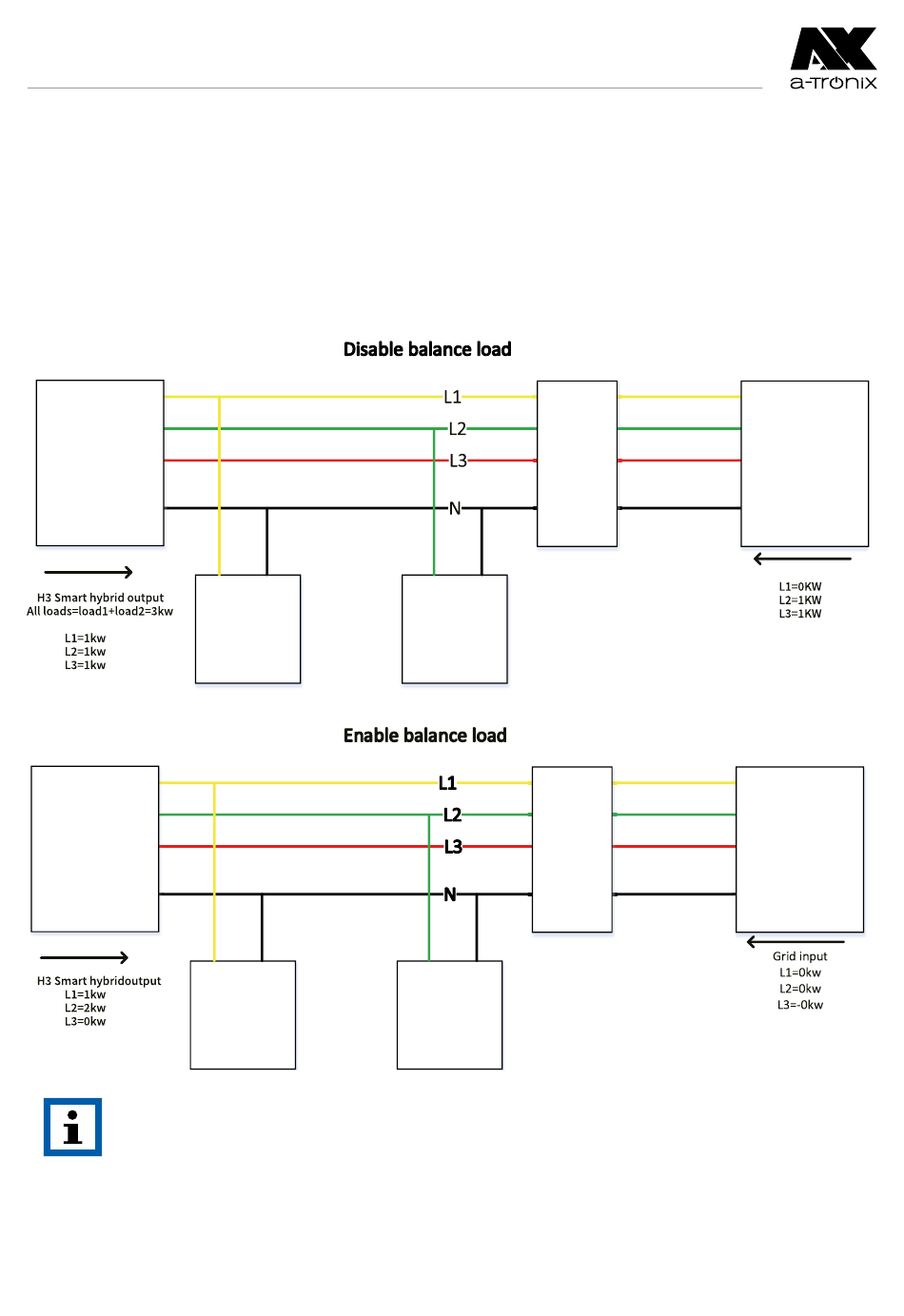

The following is a simple schematic diagram of this function:
AX Plus
hybrid
So
AX Plus
hybrid
NOTE
The maximum capacity of balanced load is 1/3 of the rated power, that
is, the maximum output capacity of 12kW machine per phase is 4kW. The
same is true for unbalanced load of off-grid function. If the single-phase
load exceeds 1/3 of the output capacity under off-grid condition, the
machine will report an error.
Page 120
Load1
1KW
Load1
1KW
Meter
Load2
2KW
Meter
Load2
2KW
GRID
Grid input
GRID
