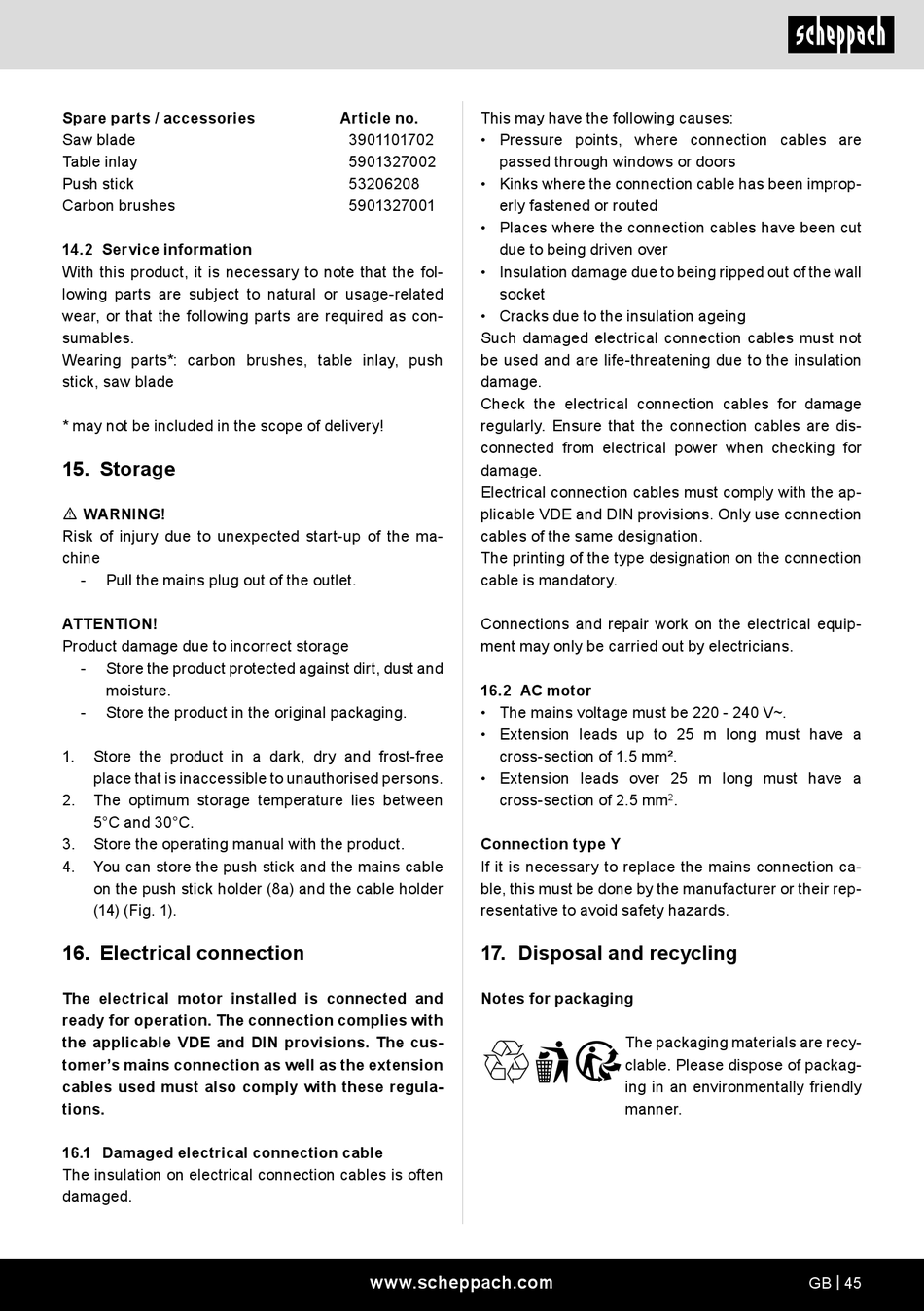

Scheppach HS210 Originalbetriebsanleitung Seite 45

Spare parts / accessories
Saw blade
Table inlay
Push stick
Carbon brushes
14.2 Service information
With this product, it is necessary to note that the fol-
lowing parts are subject to natural or usage-related
wear, or that the following parts are required as con-
sumables.
Wearing parts*: carbon brushes, table inlay, push
stick, saw blade
* may not be included in the scope of delivery!
15. Storage
m WARNING!
Risk of injury due to unexpected start-up of the ma-
chine
- Pull the mains plug out of the outlet.
ATTENTION!
Product damage due to incorrect storage
- Store the product protected against dirt, dust and
moisture.
- Store the product in the original packaging.
1. Store the product in a dark, dry and frost-free
place that is inaccessible to unauthorised persons.
2. The optimum storage temperature lies between
5°C and 30°C.
3. Store the operating manual with the product.
4. You can store the push stick and the mains cable
on the push stick holder (8a) and the cable holder
(14) (Fig. 1).
16. Electrical connection
The electrical motor installed is connected and
ready for operation. The connection complies with
the applicable VDE and DIN provisions. The cus-
tomer's mains connection as well as the extension
cables used must also comply with these regula-
tions.
16.1 Damaged electrical connection cable
The insulation on electrical connection cables is often
damaged.
Article no. This may have the following causes:
3901101702 • Pressure points, where connection cables are
5901327002 passed through windows or doors
53206208 • Kinks where the connection cable has been improp-
5901327001 erly fastened or routed
• Places where the connection cables have been cut
due to being driven over
• Insulation damage due to being ripped out of the wall
socket
• Cracks due to the insulation ageing
Such damaged electrical connection cables must not
be used and are life-threatening due to the insulation
damage.
Check the electrical connection cables for damage
regularly. Ensure that the connection cables are dis-
connected from electrical power when checking for
damage.
Electrical connection cables must comply with the ap-
plicable VDE and DIN provisions. Only use connection
cables of the same designation.
The printing of the type designation on the connection
cable is mandatory.
Connections and repair work on the electrical equip-
ment may only be carried out by electricians.
16.2 AC motor
• The mains voltage must be 220 - 240 V~.
• Extension leads up to 25 m long must have a
cross-section of 1.5 mm².
• Extension leads over 25 m long must have a
cross-section of 2.5 mm
Connection type Y
If it is necessary to replace the mains connection ca-
ble, this must be done by the manufacturer or their rep-
resentative to avoid safety hazards.
17. Disposal and recycling
Notes for packaging
www.scheppach.com
.
2
The packaging materials are recy-
clable. Please dispose of packag-
ing in an environmentally friendly
manner.
