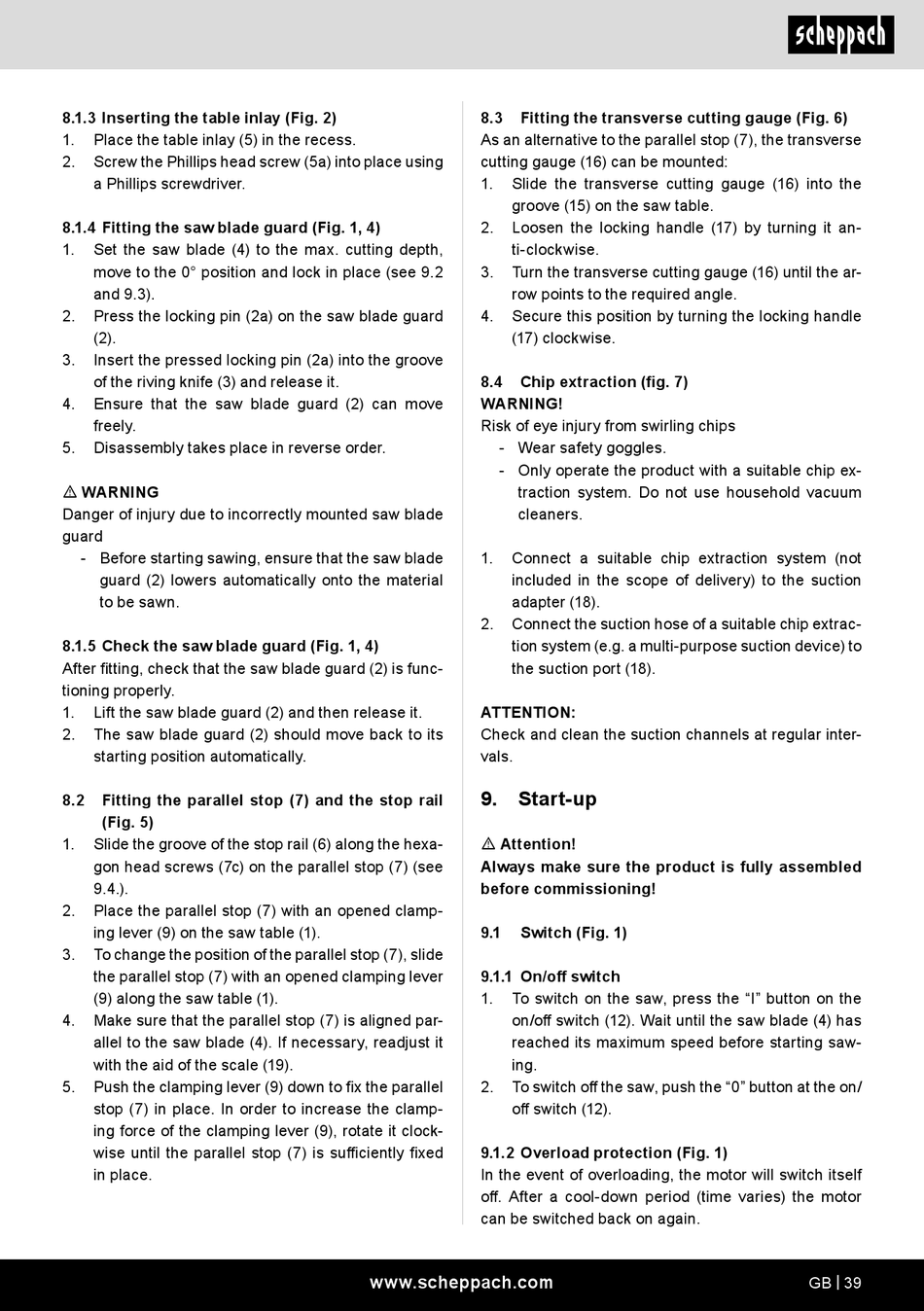

8.1.3 Inserting the table inlay (Fig. 2)
1.
Place the table inlay (5) in the recess.
2.
Screw the Phillips head screw (5a) into place using
a Phillips screwdriver.
8.1.4 Fitting the saw blade guard (Fig. 1, 4)
1.
Set the saw blade (4) to the max. cutting depth,
move to the 0° position and lock in place (see 9.2
and 9.3).
2.
Press the locking pin (2a) on the saw blade guard
(2).
3.
Insert the pressed locking pin (2a) into the groove
of the riving knife (3) and release it.
4.
Ensure that the saw blade guard (2) can move
freely.
5.
Disassembly takes place in reverse order.
m WARNING
Danger of injury due to incorrectly mounted saw blade
guard
- Before starting sawing, ensure that the saw blade
guard (2) lowers automatically onto the material
to be sawn.
8.1.5 Check the saw blade guard (Fig. 1, 4)
After fitting, check that the saw blade guard (2) is func-
tioning properly.
1.
Lift the saw blade guard (2) and then release it.
2.
The saw blade guard (2) should move back to its
starting position automatically.
8.2
Fitting the parallel stop (7) and the stop rail
(Fig. 5)
1.
Slide the groove of the stop rail (6) along the hexa-
gon head screws (7c) on the parallel stop (7) (see
9.4.).
2.
Place the parallel stop (7) with an opened clamp-
ing lever (9) on the saw table (1).
3.
To change the position of the parallel stop (7), slide
the parallel stop (7) with an opened clamping lever
(9) along the saw table (1).
4.
Make sure that the parallel stop (7) is aligned par-
allel to the saw blade (4). If necessary, readjust it
with the aid of the scale (19).
5.
Push the clamping lever (9) down to fix the parallel
stop (7) in place. In order to increase the clamp-
ing force of the clamping lever (9), rotate it clock-
wise until the parallel stop (7) is sufficiently fixed
in place.
8.3
Fitting the transverse cutting gauge (Fig. 6)
As an alternative to the parallel stop (7), the transverse
cutting gauge (16) can be mounted:
1.
Slide the transverse cutting gauge (16) into the
groove (15) on the saw table.
2.
Loosen the locking handle (17) by turning it an-
ti-clockwise.
3.
Turn the transverse cutting gauge (16) until the ar-
row points to the required angle.
4.
Secure this position by turning the locking handle
(17) clockwise.
8.4
Chip extraction (fig. 7)
WARNING!
Risk of eye injury from swirling chips
- Wear safety goggles.
- Only operate the product with a suitable chip ex-
traction system. Do not use household vacuum
cleaners.
1.
Connect a suitable chip extraction system (not
included in the scope of delivery) to the suction
adapter (18).
2.
Connect the suction hose of a suitable chip extrac-
tion system (e.g. a multi-purpose suction device) to
the suction port (18).
ATTENTION:
Check and clean the suction channels at regular inter-
vals.
9.
Start-up
m Attention!
Always make sure the product is fully assembled
before commissioning!
9.1
Switch (Fig. 1)
9.1.1 On/off switch
1.
To switch on the saw, press the "I" button on the
on/off switch (12). Wait until the saw blade (4) has
reached its maximum speed before starting saw-
ing.
2.
To switch off the saw, push the "0" button at the on/
off switch (12).
9.1.2 Overload protection (Fig. 1)
In the event of overloading, the motor will switch itself
off. After a cool-down period (time varies) the motor
can be switched back on again.
www.scheppach.com
GB | 39
