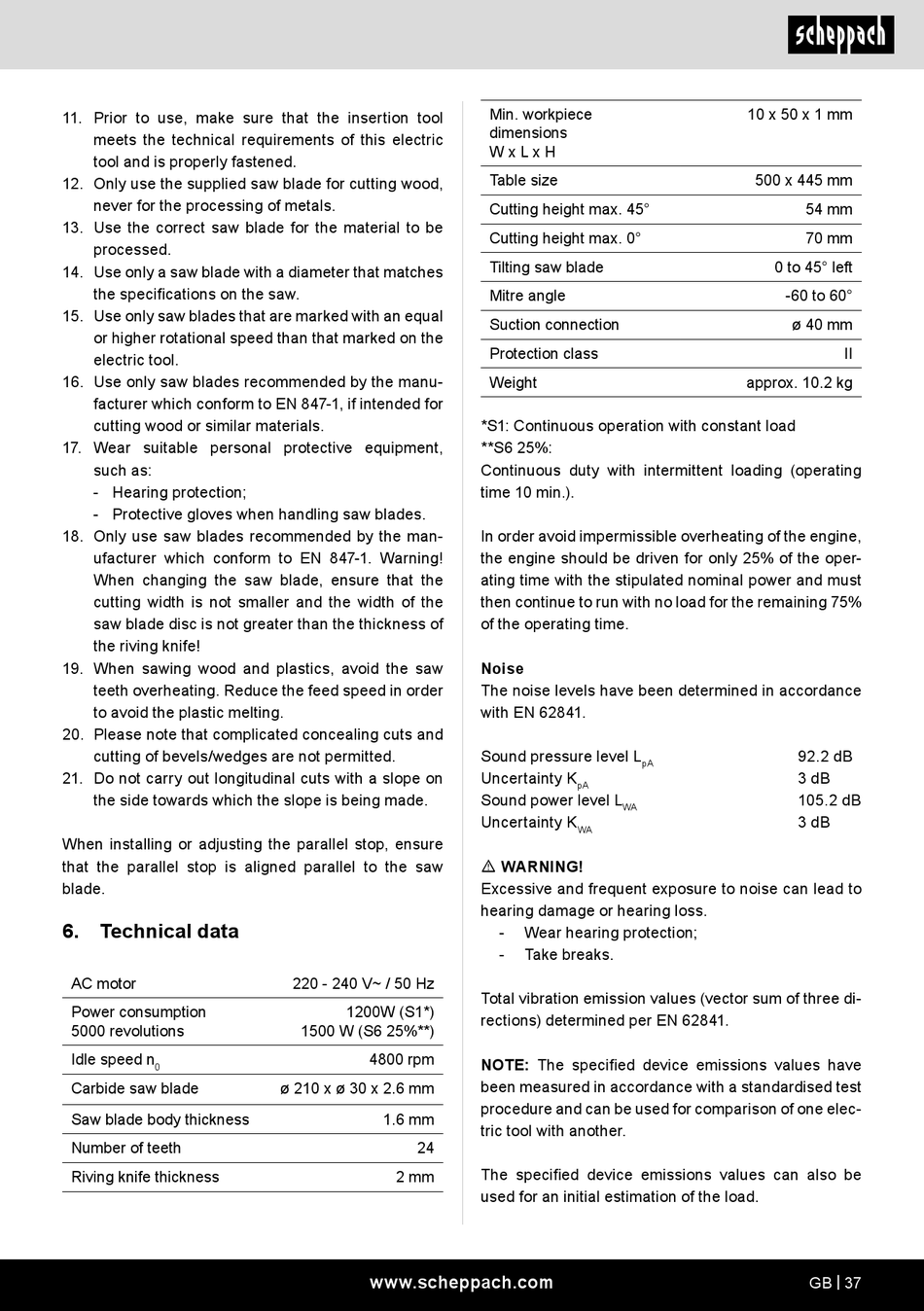

Scheppach HS210 Originalbetriebsanleitung Seite 37

11. Prior to use, make sure that the insertion tool
meets the technical requirements of this electric
tool and is properly fastened.
12. Only use the supplied saw blade for cutting wood,
never for the processing of metals.
13. Use the correct saw blade for the material to be
processed.
14. Use only a saw blade with a diameter that matches
the specifications on the saw.
15. Use only saw blades that are marked with an equal
or higher rotational speed than that marked on the
electric tool.
16. Use only saw blades recommended by the manu-
facturer which conform to EN 847-1, if intended for
cutting wood or similar materials.
17. Wear suitable personal protective equipment,
such as:
- Hearing protection;
- Protective gloves when handling saw blades.
18. Only use saw blades recommended by the man-
ufacturer which conform to EN 847-1. Warning!
When changing the saw blade, ensure that the
cutting width is not smaller and the width of the
saw blade disc is not greater than the thickness of
the riving knife!
19. When sawing wood and plastics, avoid the saw
teeth overheating. Reduce the feed speed in order
to avoid the plastic melting.
20. Please note that complicated concealing cuts and
cutting of bevels/wedges are not permitted.
21. Do not carry out longitudinal cuts with a slope on
the side towards which the slope is being made.
When installing or adjusting the parallel stop, ensure
that the parallel stop is aligned parallel to the saw
blade.
6. Technical data
AC motor
Power consumption
5000 revolutions
Idle speed n
0
Carbide saw blade
Saw blade body thickness
Number of teeth
Riving knife thickness
220 - 240 V~ / 50 Hz
1200W (S1*)
1500 W (S6 25%**)
4800 rpm
ø 210 x ø 30 x 2.6 mm
1.6 mm
24
2 mm
www.scheppach.com
Min. workpiece
dimensions
W x L x H
Table size
Cutting height max. 45°
Cutting height max. 0°
Tilting saw blade
Mitre angle
Suction connection
Protection class
Weight
*S1: Continuous operation with constant load
**S6 25%:
Continuous duty with intermittent loading (operating
time 10 min.).
In order avoid impermissible overheating of the engine,
the engine should be driven for only 25% of the oper-
ating time with the stipulated nominal power and must
then continue to run with no load for the remaining 75%
of the operating time.
Noise
The noise levels have been determined in accordance
with EN 62841.
Sound pressure level L
pA
Uncertainty K
pA
Sound power level L
WA
Uncertainty K
WA
m WARNING!
Excessive and frequent exposure to noise can lead to
hearing damage or hearing loss.
- Wear hearing protection;
- Take breaks.
Total vibration emission values (vector sum of three di-
rections) determined per EN 62841.
NOTE: The specified device emissions values have
been measured in accordance with a standardised test
procedure and can be used for comparison of one elec-
tric tool with another.
The specified device emissions values can also be
used for an initial estimation of the load.
10 x 50 x 1 mm
500 x 445 mm
54 mm
70 mm
0 to 45° left
-60 to 60°
ø 40 mm
II
approx. 10.2 kg
92.2 dB
3 dB
105.2 dB
3 dB
