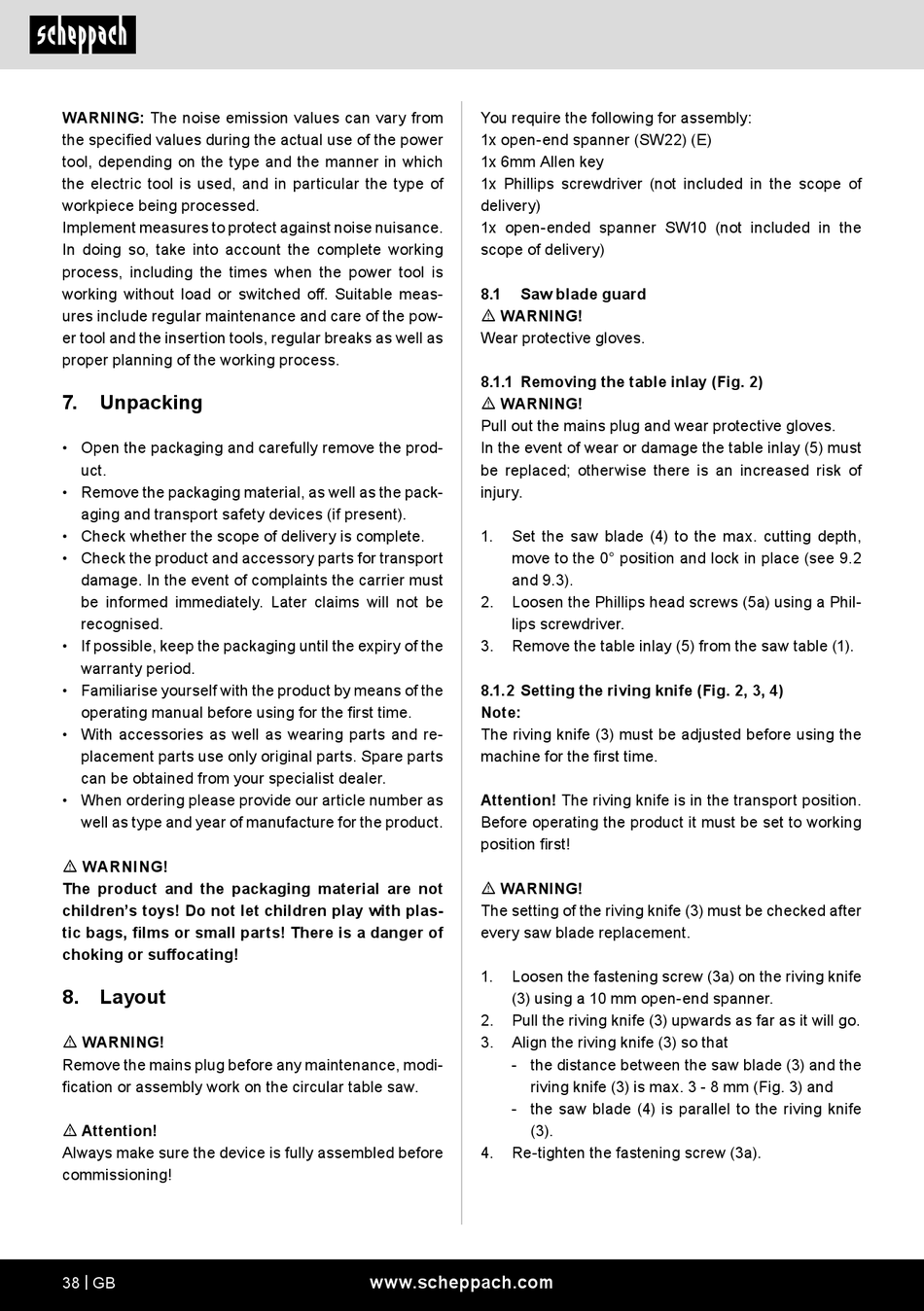

Scheppach HS210 Originalbetriebsanleitung Seite 38

WARNING: The noise emission values can vary from
the specified values during the actual use of the power
tool, depending on the type and the manner in which
the electric tool is used, and in particular the type of
workpiece being processed.
Implement measures to protect against noise nuisance.
In doing so, take into account the complete working
process, including the times when the power tool is
working without load or switched off. Suitable meas-
ures include regular maintenance and care of the pow-
er tool and the insertion tools, regular breaks as well as
proper planning of the working process.
7. Unpacking
• Open the packaging and carefully remove the prod-
uct.
• Remove the packaging material, as well as the pack-
aging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the product and accessory parts for transport
damage. In the event of complaints the carrier must
be informed immediately. Later claims will not be
recognised.
• If possible, keep the packaging until the expiry of the
warranty period.
• Familiarise yourself with the product by means of the
operating manual before using for the first time.
• With accessories as well as wearing parts and re-
placement parts use only original parts. Spare parts
can be obtained from your specialist dealer.
• When ordering please provide our article number as
well as type and year of manufacture for the product.
m WARNING!
The product and the packaging material are not
children's toys! Do not let children play with plas-
tic bags, films or small parts! There is a danger of
choking or suffocating!
8. Layout
m WARNING!
Remove the mains plug before any maintenance, modi-
fication or assembly work on the circular table saw.
m Attention!
Always make sure the device is fully assembled before
commissioning!
38 | GB
You require the following for assembly:
1x open-end spanner (SW22) (E)
1x 6mm Allen key
1x Phillips screwdriver (not included in the scope of
delivery)
1x open-ended spanner SW10 (not included in the
scope of delivery)
8.1 Saw blade guard
m WARNING!
Wear protective gloves.
8.1.1 Removing the table inlay (Fig. 2)
m WARNING!
Pull out the mains plug and wear protective gloves.
In the event of wear or damage the table inlay (5) must
be replaced; otherwise there is an increased risk of
injury.
1. Set the saw blade (4) to the max. cutting depth,
move to the 0° position and lock in place (see 9.2
and 9.3).
2. Loosen the Phillips head screws (5a) using a Phil-
lips screwdriver.
3. Remove the table inlay (5) from the saw table (1).
8.1.2 Setting the riving knife (Fig. 2, 3, 4)
Note:
The riving knife (3) must be adjusted before using the
machine for the first time.
Attention! The riving knife is in the transport position.
Before operating the product it must be set to working
position first!
m WARNING!
The setting of the riving knife (3) must be checked after
every saw blade replacement.
1. Loosen the fastening screw (3a) on the riving knife
(3) using a 10 mm open-end spanner.
2. Pull the riving knife (3) upwards as far as it will go.
3. Align the riving knife (3) so that
- the distance between the saw blade (3) and the
riving knife (3) is max. 3 - 8 mm (Fig. 3) and
- the saw blade (4) is parallel to the riving knife
(3).
4. Re-tighten the fastening screw (3a).
