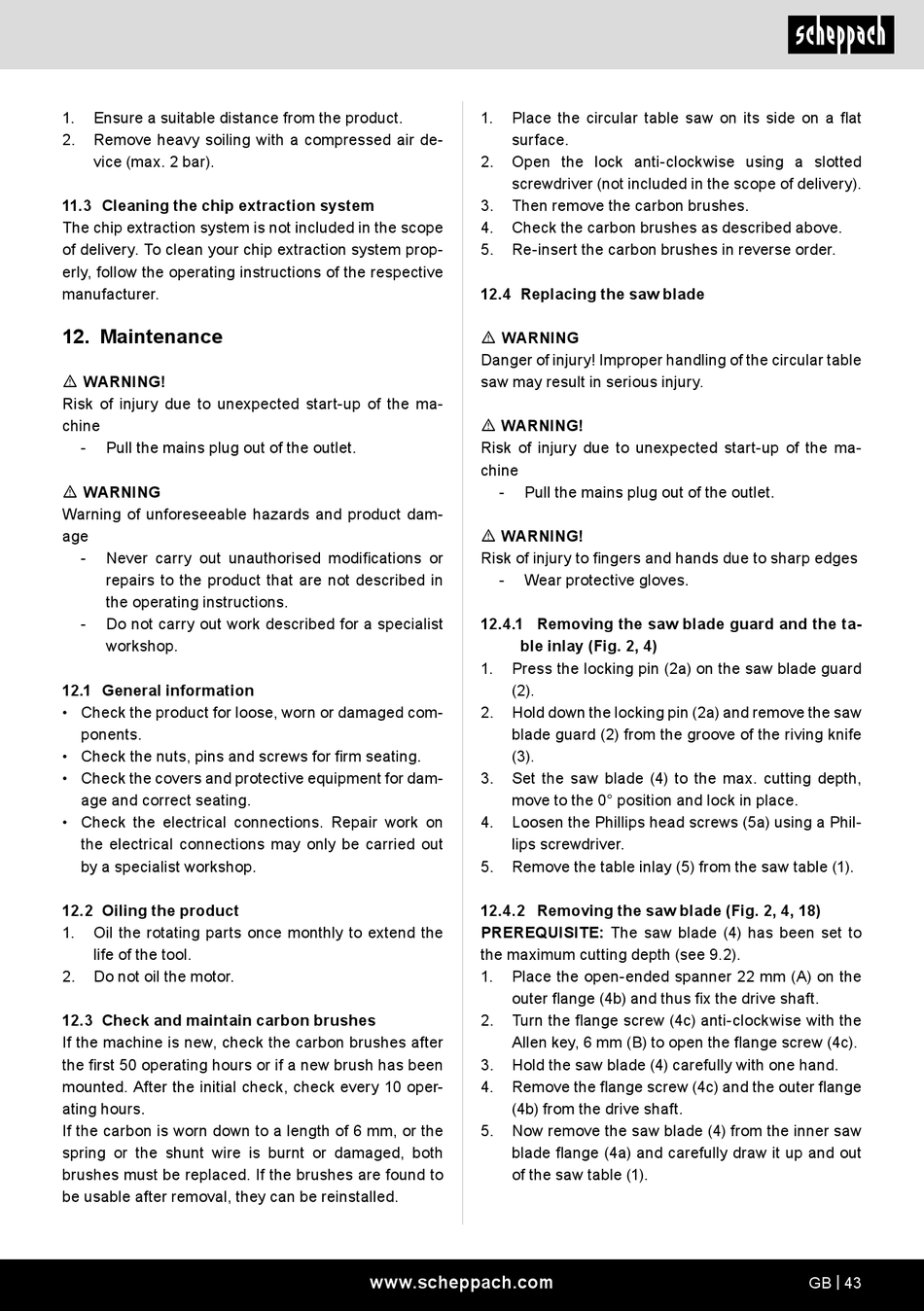

Scheppach HS210 Originalbetriebsanleitung Seite 43

1. Ensure a suitable distance from the product.
2. Remove heavy soiling with a compressed air de-
vice (max. 2 bar).
11.3 Cleaning the chip extraction system
The chip extraction system is not included in the scope
of delivery. To clean your chip extraction system prop-
erly, follow the operating instructions of the respective
manufacturer.
12. Maintenance
m WARNING!
Risk of injury due to unexpected start-up of the ma-
chine
- Pull the mains plug out of the outlet.
m WARNING
Warning of unforeseeable hazards and product dam-
age
- Never carry out unauthorised modifications or
repairs to the product that are not described in
the operating instructions.
- Do not carry out work described for a specialist
workshop.
12.1 General information
• Check the product for loose, worn or damaged com-
ponents.
• Check the nuts, pins and screws for firm seating.
• Check the covers and protective equipment for dam-
age and correct seating.
• Check the electrical connections. Repair work on
the electrical connections may only be carried out
by a specialist workshop.
12.2 Oiling the product
1. Oil the rotating parts once monthly to extend the
life of the tool.
2. Do not oil the motor.
12.3 Check and maintain carbon brushes
If the machine is new, check the carbon brushes after
the first 50 operating hours or if a new brush has been
mounted. After the initial check, check every 10 oper-
ating hours.
If the carbon is worn down to a length of 6 mm, or the
spring or the shunt wire is burnt or damaged, both
brushes must be replaced. If the brushes are found to
be usable after removal, they can be reinstalled.
1. Place the circular table saw on its side on a flat
surface.
2. Open the lock anti-clockwise using a slotted
screwdriver (not included in the scope of delivery).
3. Then remove the carbon brushes.
4. Check the carbon brushes as described above.
5. Re-insert the carbon brushes in reverse order.
12.4 Replacing the saw blade
m WARNING
Danger of injury! Improper handling of the circular table
saw may result in serious injury.
m WARNING!
Risk of injury due to unexpected start-up of the ma-
chine
- Pull the mains plug out of the outlet.
m WARNING!
Risk of injury to fingers and hands due to sharp edges
- Wear protective gloves.
12.4.1 Removing the saw blade guard and the ta-
ble inlay (Fig. 2, 4)
1. Press the locking pin (2a) on the saw blade guard
(2).
2. Hold down the locking pin (2a) and remove the saw
blade guard (2) from the groove of the riving knife
(3).
3. Set the saw blade (4) to the max. cutting depth,
move to the 0° position and lock in place.
4. Loosen the Phillips head screws (5a) using a Phil-
lips screwdriver.
5. Remove the table inlay (5) from the saw table (1).
12.4.2 Removing the saw blade (Fig. 2, 4, 18)
PREREQUISITE: The saw blade (4) has been set to
the maximum cutting depth (see 9.2).
1. Place the open-ended spanner 22 mm (A) on the
outer flange (4b) and thus fix the drive shaft.
2. Turn the flange screw (4c) anti-clockwise with the
Allen key, 6 mm (B) to open the flange screw (4c).
3. Hold the saw blade (4) carefully with one hand.
4. Remove the flange screw (4c) and the outer flange
(4b) from the drive shaft.
5. Now remove the saw blade (4) from the inner saw
blade flange (4a) and carefully draw it up and out
of the saw table (1).
