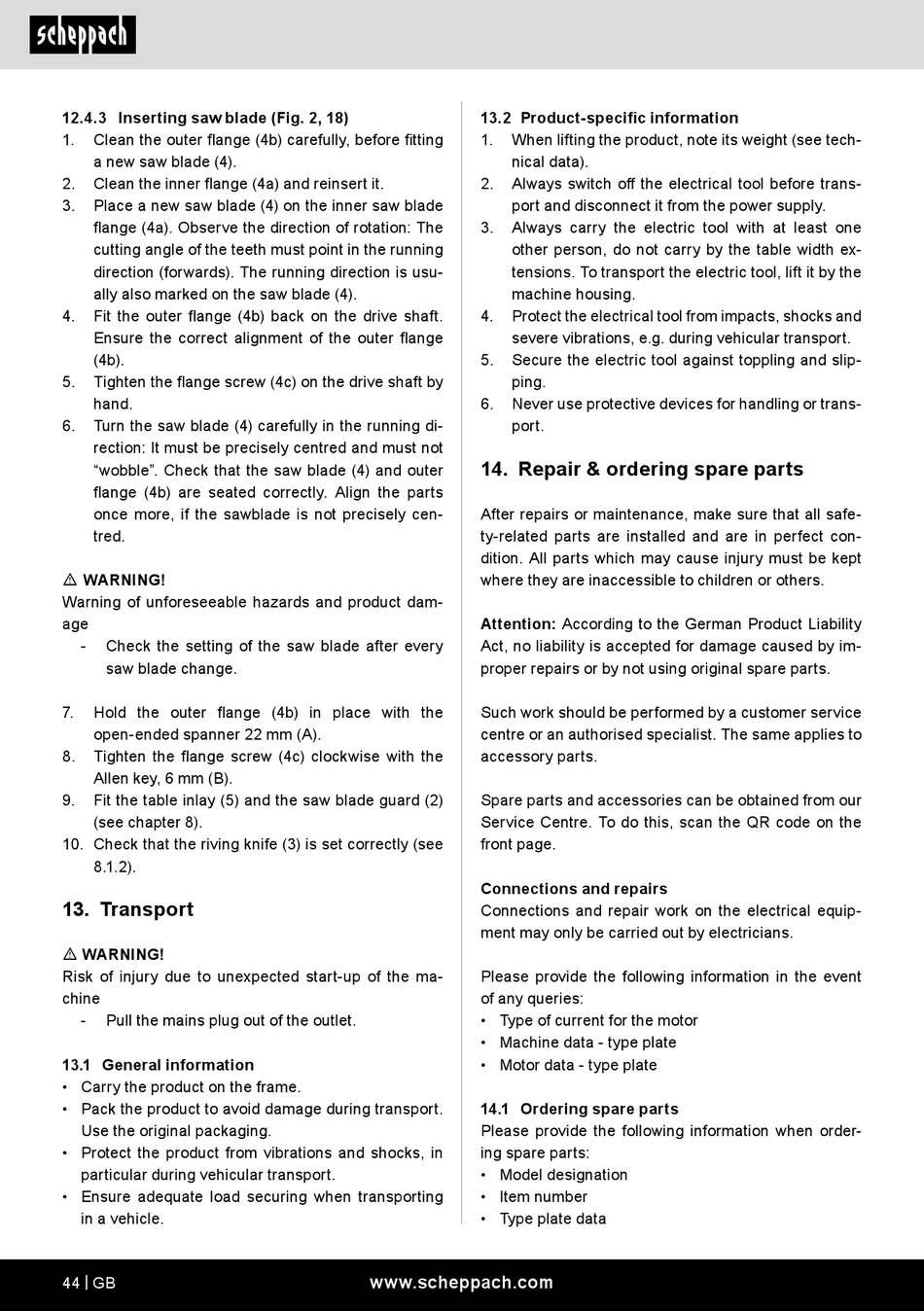

Scheppach HS210 Originalbetriebsanleitung Seite 44

12.4.3 Inserting saw blade (Fig. 2, 18)
1. Clean the outer flange (4b) carefully, before fitting
a new saw blade (4).
2. Clean the inner flange (4a) and reinsert it.
3. Place a new saw blade (4) on the inner saw blade
flange (4a). Observe the direction of rotation: The
cutting angle of the teeth must point in the running
direction (forwards). The running direction is usu-
ally also marked on the saw blade (4).
4. Fit the outer flange (4b) back on the drive shaft.
Ensure the correct alignment of the outer flange
(4b).
5. Tighten the flange screw (4c) on the drive shaft by
hand.
6. Turn the saw blade (4) carefully in the running di-
rection: It must be precisely centred and must not
"wobble". Check that the saw blade (4) and outer
flange (4b) are seated correctly. Align the parts
once more, if the sawblade is not precisely cen-
tred.
m WARNING!
Warning of unforeseeable hazards and product dam-
age
- Check the setting of the saw blade after every
saw blade change.
7. Hold the outer flange (4b) in place with the
open-ended spanner 22 mm (A).
8. Tighten the flange screw (4c) clockwise with the
Allen key, 6 mm (B).
9. Fit the table inlay (5) and the saw blade guard (2)
(see chapter 8).
10. Check that the riving knife (3) is set correctly (see
8.1.2).
13. Transport
m WARNING!
Risk of injury due to unexpected start-up of the ma-
chine
- Pull the mains plug out of the outlet.
13.1 General information
• Carry the product on the frame.
• Pack the product to avoid damage during transport.
Use the original packaging.
• Protect the product from vibrations and shocks, in
particular during vehicular transport.
• Ensure adequate load securing when transporting
in a vehicle.
44 | GB
13.2 Product-specific information
1. When lifting the product, note its weight (see tech-
nical data).
2. Always switch off the electrical tool before trans-
port and disconnect it from the power supply.
3. Always carry the electric tool with at least one
other person, do not carry by the table width ex-
tensions. To transport the electric tool, lift it by the
machine housing.
4. Protect the electrical tool from impacts, shocks and
severe vibrations, e.g. during vehicular transport.
5. Secure the electric tool against toppling and slip-
ping.
6. Never use protective devices for handling or trans-
port.
14. Repair & ordering spare parts
After repairs or maintenance, make sure that all safe-
ty-related parts are installed and are in perfect con-
dition. All parts which may cause injury must be kept
where they are inaccessible to children or others.
Attention: According to the German Product Liability
Act, no liability is accepted for damage caused by im-
proper repairs or by not using original spare parts.
Such work should be performed by a customer service
centre or an authorised specialist. The same applies to
accessory parts.
Spare parts and accessories can be obtained from our
Service Centre. To do this, scan the QR code on the
front page.
Connections and repairs
Connections and repair work on the electrical equip-
ment may only be carried out by electricians.
Please provide the following information in the event
of any queries:
• Type of current for the motor
• Machine data - type plate
• Motor data - type plate
14.1 Ordering spare parts
Please provide the following information when order-
ing spare parts:
• Model designation
• Item number
• Type plate data
