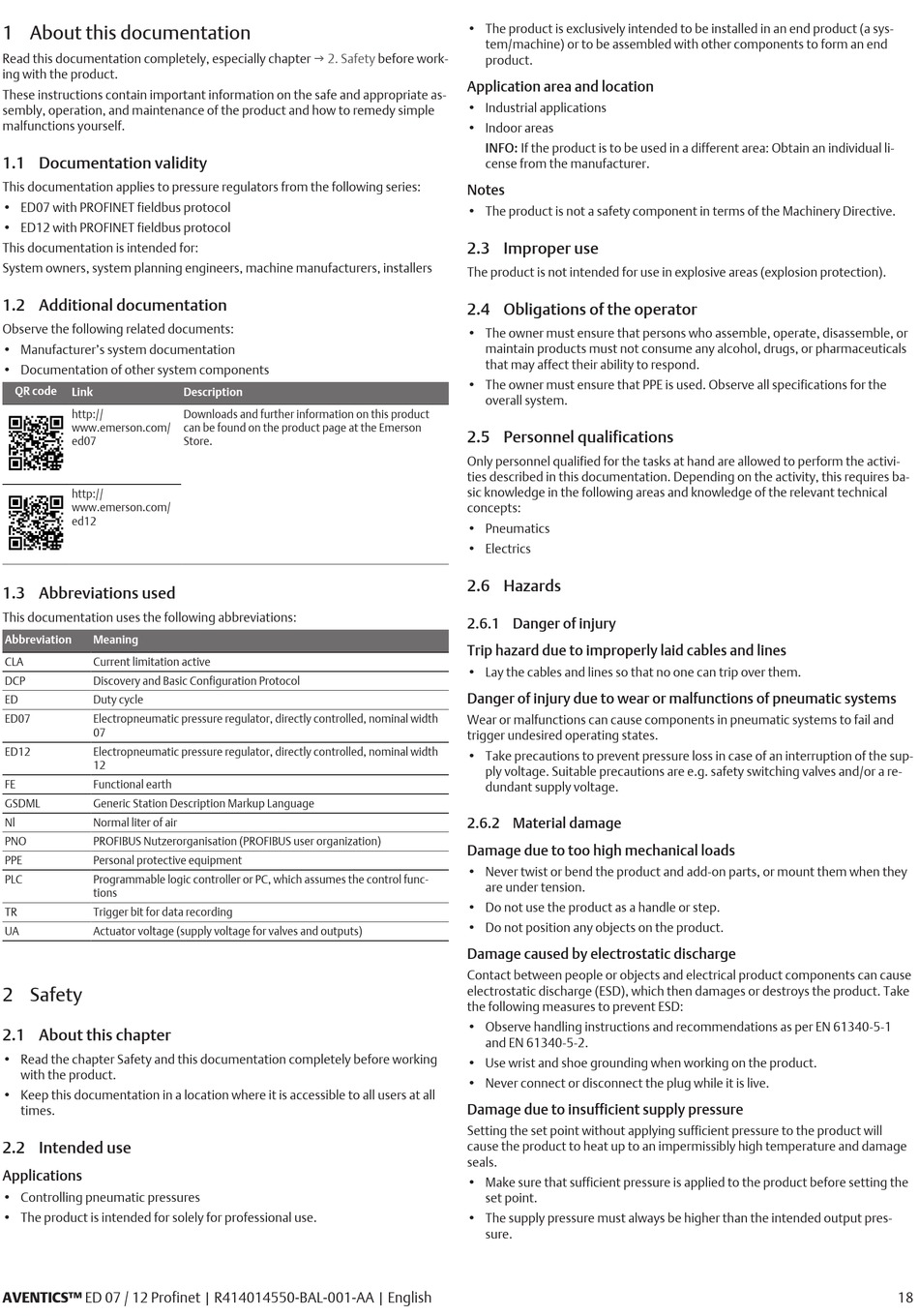

1 About this documentation
Read this documentation completely, especially
ing with the product.
These instructions contain important information on the safe and appropriate as-
sembly, operation, and maintenance of the product and how to remedy simple
malfunctions yourself.
1.1 Documentation validity
This documentation applies to pressure regulators from the following series:
• ED07 with PROFINET fieldbus protocol
• ED12 with PROFINET fieldbus protocol
This documentation is intended for:
System owners, system planning engineers, machine manufacturers, installers
1.2 Additional documentation
Observe the following related documents:
• Manufacturer's system documentation
• Documentation of other system components
QR code
Link
http://
www.emerson.com/
ed07
http://
www.emerson.com/
ed12
1.3 Abbreviations used
This documentation uses the following abbreviations:
Abbreviation Meaning
CLA Current limitation active
DCP Discovery and Basic Configuration Protocol
ED Duty cycle
ED07 Electropneumatic pressure regulator, directly controlled, nominal width
07
ED12 Electropneumatic pressure regulator, directly controlled, nominal width
12
FE Functional earth
GSDML Generic Station Description Markup Language
Nl Normal liter of air
PNO PROFIBUS Nutzerorganisation (PROFIBUS user organization)
PPE Personal protective equipment
PLC Programmable logic controller or PC, which assumes the control func-
tions
TR Trigger bit for data recording
UA Actuator voltage (supply voltage for valves and outputs)
2 Safety
2.1 About this chapter
• Read the chapter Safety and this documentation completely before working
with the product.
• Keep this documentation in a location where it is accessible to all users at all
times.
2.2 Intended use
Applications
• Controlling pneumatic pressures
• The product is intended for solely for professional use.
AVENTICS™ ED 07 / 12 Profinet | R414014550-BAL-001-AA | English
chapter g 2. Safety
Description
Downloads and further information on this product
can be found on the product page at the Emerson
Store.
• The product is exclusively intended to be installed in an end product (a sys-
tem/machine) or to be assembled with other components to form an end
before work-
product.
Application area and location
• Industrial applications
• Indoor areas
INFO: If the product is to be used in a different area: Obtain an individual li-
cense from the manufacturer.
Notes
• The product is not a safety component in terms of the Machinery Directive.
2.3 Improper use
The product is not intended for use in explosive areas (explosion protection).
2.4 Obligations of the operator
• The owner must ensure that persons who assemble, operate, disassemble, or
maintain products must not consume any alcohol, drugs, or pharmaceuticals
that may affect their ability to respond.
• The owner must ensure that PPE is used. Observe all specifications for the
overall system.
2.5 Personnel qualifications
Only personnel qualified for the tasks at hand are allowed to perform the activi-
ties described in this documentation. Depending on the activity, this requires ba-
sic knowledge in the following areas and knowledge of the relevant technical
concepts:
• Pneumatics
• Electrics
2.6 Hazards
2.6.1 Danger of injury
Trip hazard due to improperly laid cables and lines
• Lay the cables and lines so that no one can trip over them.
Danger of injury due to wear or malfunctions of pneumatic systems
Wear or malfunctions can cause components in pneumatic systems to fail and
trigger undesired operating states.
• Take precautions to prevent pressure loss in case of an interruption of the sup-
ply voltage. Suitable precautions are e.g. safety switching valves and/or a re-
dundant supply voltage.
2.6.2 Material damage
Damage due to too high mechanical loads
• Never twist or bend the product and add-on parts, or mount them when they
are under tension.
• Do not use the product as a handle or step.
• Do not position any objects on the product.
Damage caused by electrostatic discharge
Contact between people or objects and electrical product components can cause
electrostatic discharge (ESD), which then damages or destroys the product. Take
the following measures to prevent ESD:
• Observe handling instructions and recommendations as per EN 61340-5-1
and EN 61340-5-2.
• Use wrist and shoe grounding when working on the product.
• Never connect or disconnect the plug while it is live.
Damage due to insufficient supply pressure
Setting the set point without applying sufficient pressure to the product will
cause the product to heat up to an impermissibly high temperature and damage
seals.
• Make sure that sufficient pressure is applied to the product before setting the
set point.
• The supply pressure must always be higher than the intended output pres-
sure.
