Operation

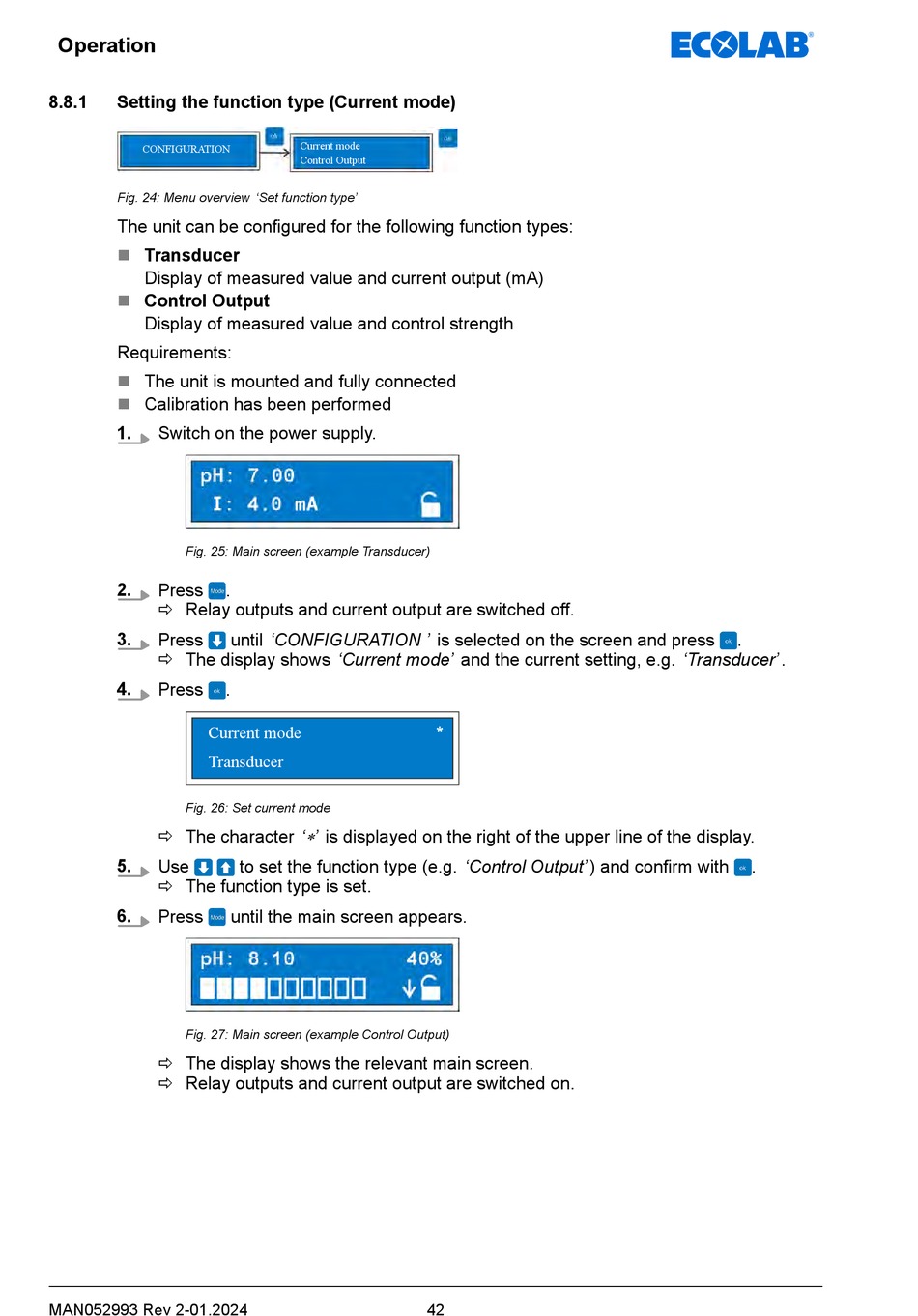

8.8.1 Setting the function type (Current mode)
CONFIGURATION
Fig. 24: Menu overview 'Set function type'
The unit can be configured for the following function types:
Transducer
n
Display of measured value and current output (mA)
Control Output
n
Display of measured value and control strength
Requirements:
The unit is mounted and fully connected
n
n Calibration has been performed
1.
Switch on the power supply.
Fig. 25: Main screen (example Transducer)
2.
Press
ð Relay outputs and current output are switched off.
3.
Press
ð The display shows 'Current mode' and the current setting, e.g. 'Transducer' .
4.
Press
Current mode
Transducer
Fig. 26: Set current mode
ð The character '
5.
Use
ð The function type is set.
6.
Press
Fig. 27: Main screen (example Control Output)
ð The display shows the relevant main screen.
ð Relay outputs and current output are switched on.
MAN052993 Rev 2-01.2024
Current mode
Control Output
.
until 'CONFIGURATION ' is selected on the screen and press
.
* ' is displayed on the right of the upper line of the display.
to set the function type (e.g. 'Control Output' ) and confirm with
until the main screen appears.
