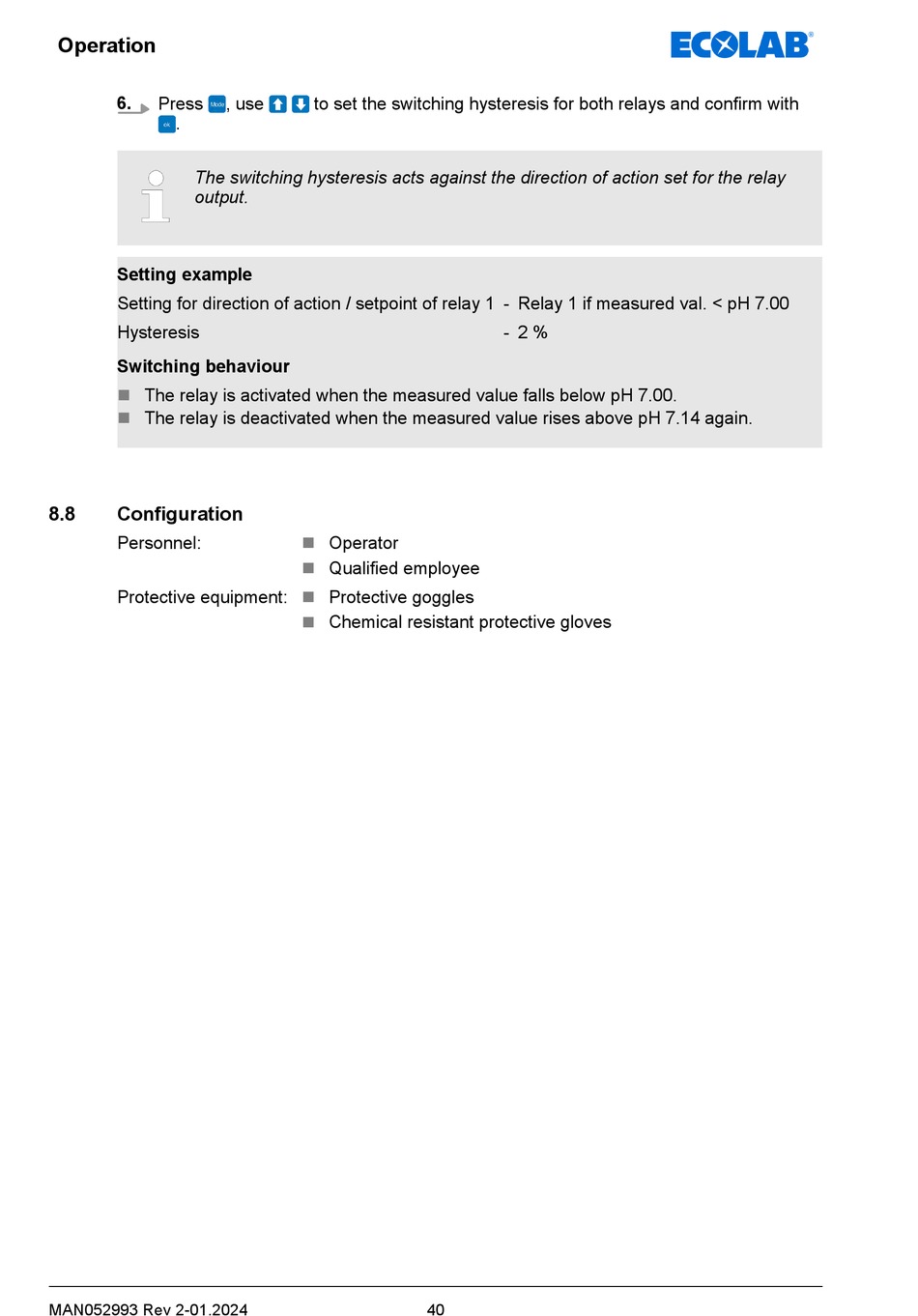

Configuration - ECOLAB EcoTrans II pH Betriebsanleitung

Operation
6.
Press
.
The switching hysteresis acts against the direction of action set for the relay
output.
Setting example
Setting for direction of action / setpoint of relay 1 - Relay 1 if measured val. < pH 7.00
Hysteresis
Switching behaviour
n The relay is activated when the measured value falls below pH 7.00.
n The relay is deactivated when the measured value rises above pH 7.14 again.
8.8

Configuration

Personnel:
Protective equipment:
MAN052993 Rev 2-01.2024
, use to set the switching hysteresis for both relays and confirm with
n Operator
n Qualified employee
n Protective goggles
n Chemical resistant protective gloves
- 2 %
40
