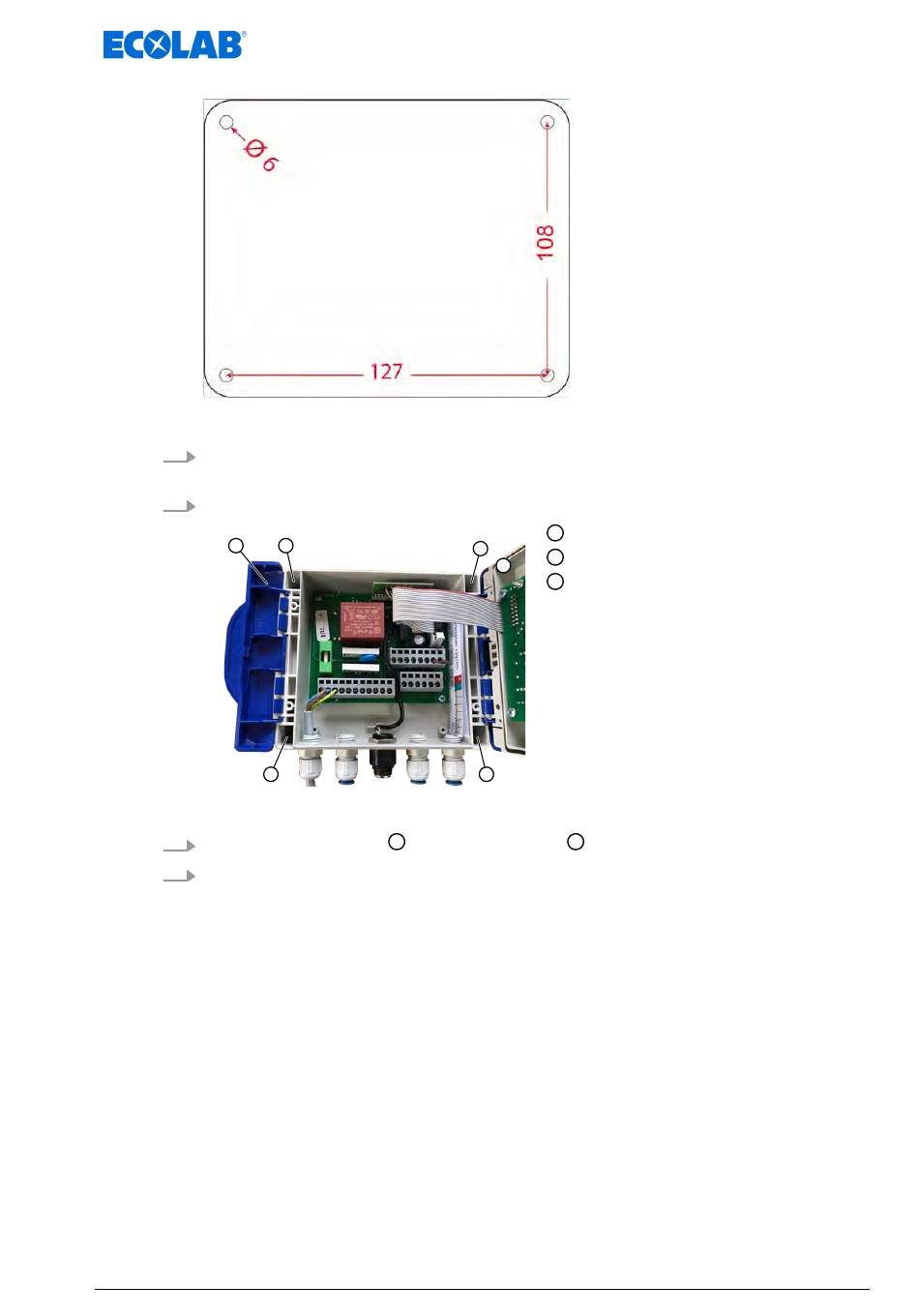

Fig. 3: Drilling plan
1.
Select the mounting location of the EcoTrans II pH and drill holes in accordance with
the drilling plan Fig. 3 .
2.
Drill the fixing holes and place the Æ 6 mm dowels.
1 3
3
Fig. 4: Mounting the device
3.
Release the cover lock
4.
Secure the device with Æ 4 mm dowel screws.
1
3
2
2
3
3
and open the cover
1
23
Assembly and connection
Cover lock
Cover
Mounting hole
.
2
