10.99
7.2

Control connections

Standard
connections
Siemens AG 6SE7087-6JD50
SIMOVERT MASTERDRIVES
In the basic version, the unit has the following control connections on
the CUMC:
♦ Serial interface (RS232 / RS485) for PC or OP1S (interface 1)
♦ One serial interface (USS bus, RS485) (interface 2)
♦ One control terminal strip with digital and analog inputs and outputs.
X108
S1
X101
X103
S2

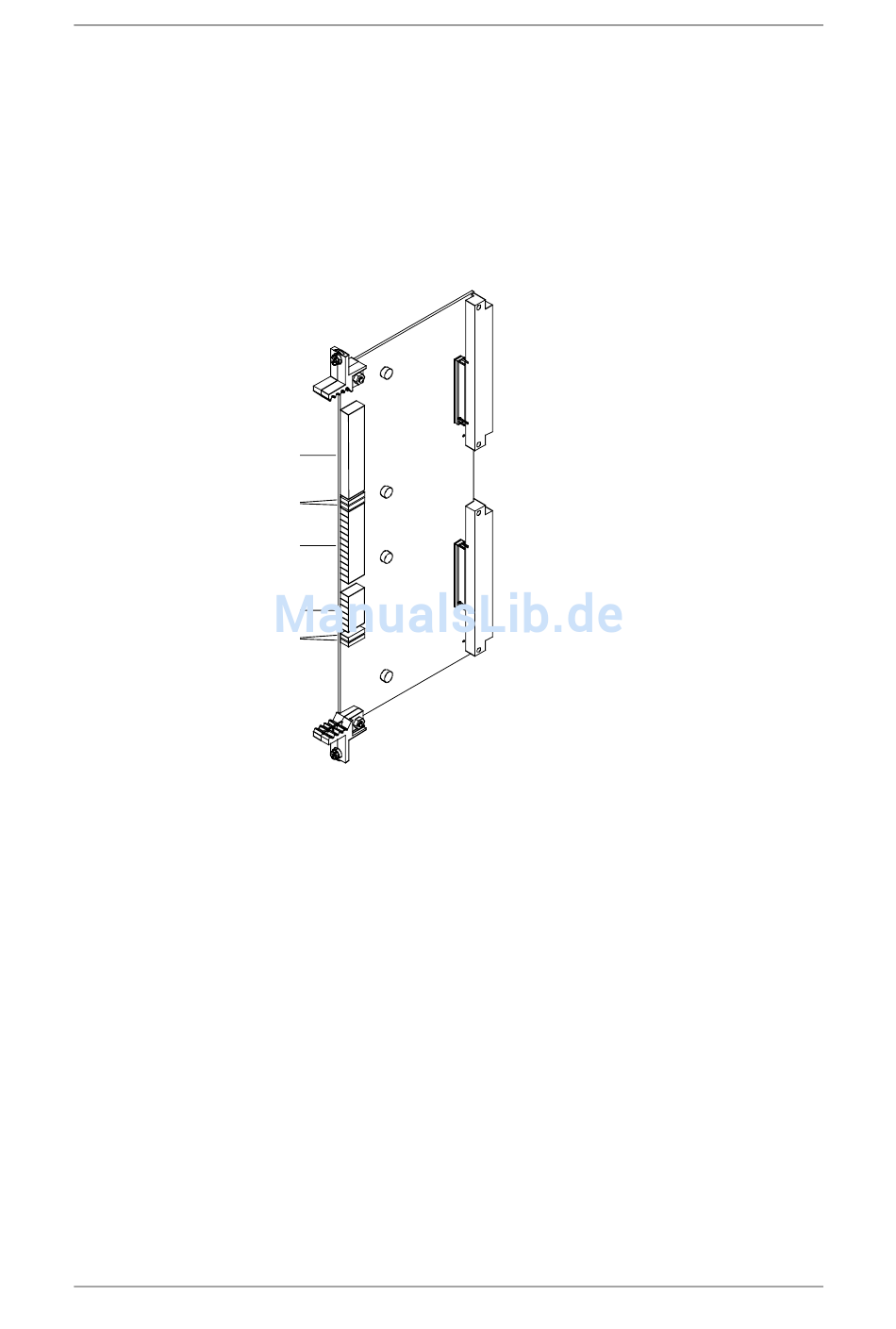

Fig. 7-4 View of the CUMC
Operating Instructions
Connecting-up
7-7
