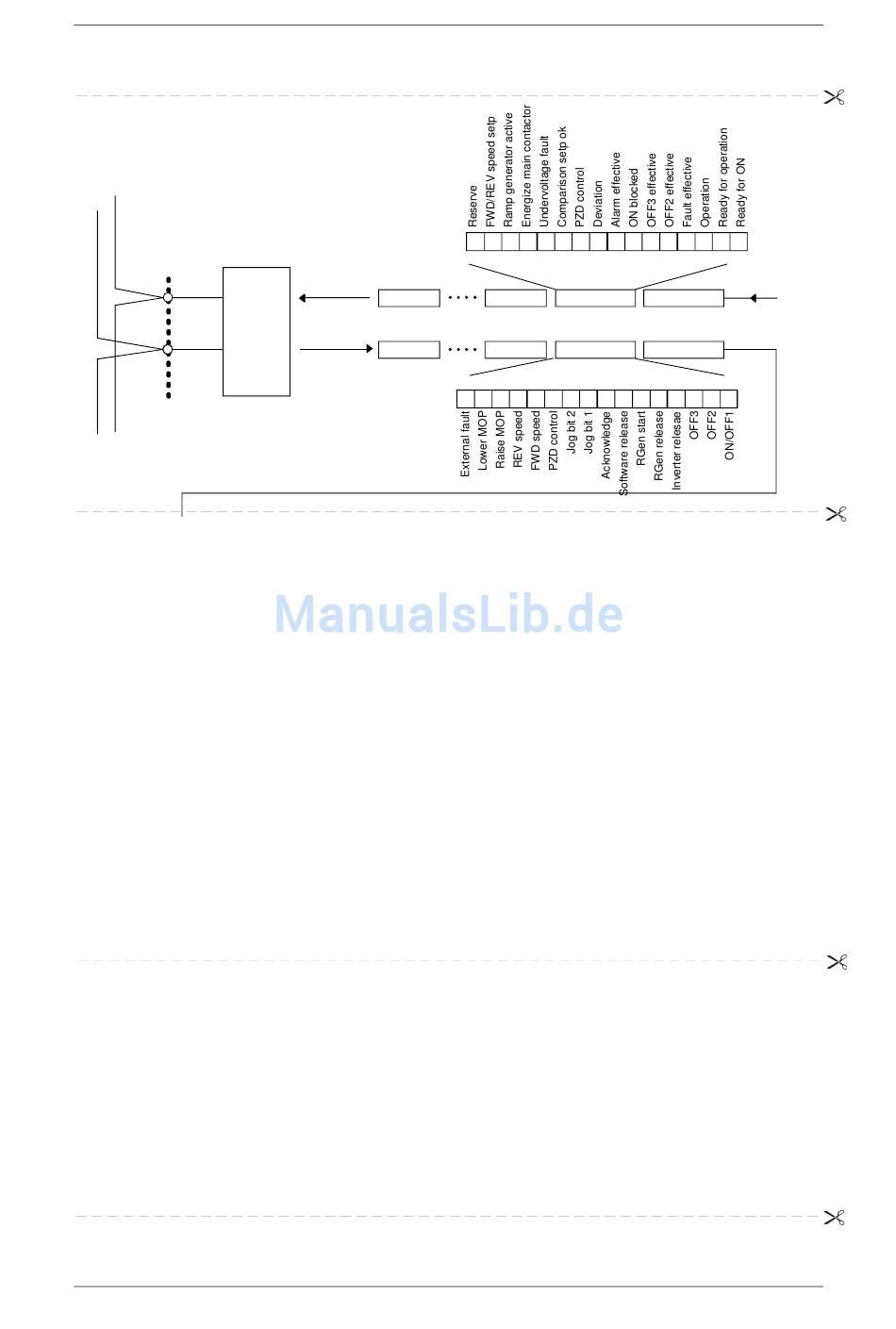

Setpoint and command source
USS
-X100/35
PKW:4
RS485P
PZD:2
Baud rate:
9.6 KB
-X100/36
RS485N
Tlg failure
time: 0 =
none
Siemens AG 6SE7087-6JD50
SIMOVERT MASTERDRIVES
PKW
Transmit
Receive
PKW
Proposal
Operating Instructions
1
15
Status word 1
PKW Data word 1
PKW Data word 1
Control word 1
15
0 0 0 1 1 1 0 0 1
Parameterization
0
Data word 2
Actual value
Setpoint
Data word 2
0
1 1 1 1
8-23
