Description of unit

4.4.1

Front view

2
1
12
11

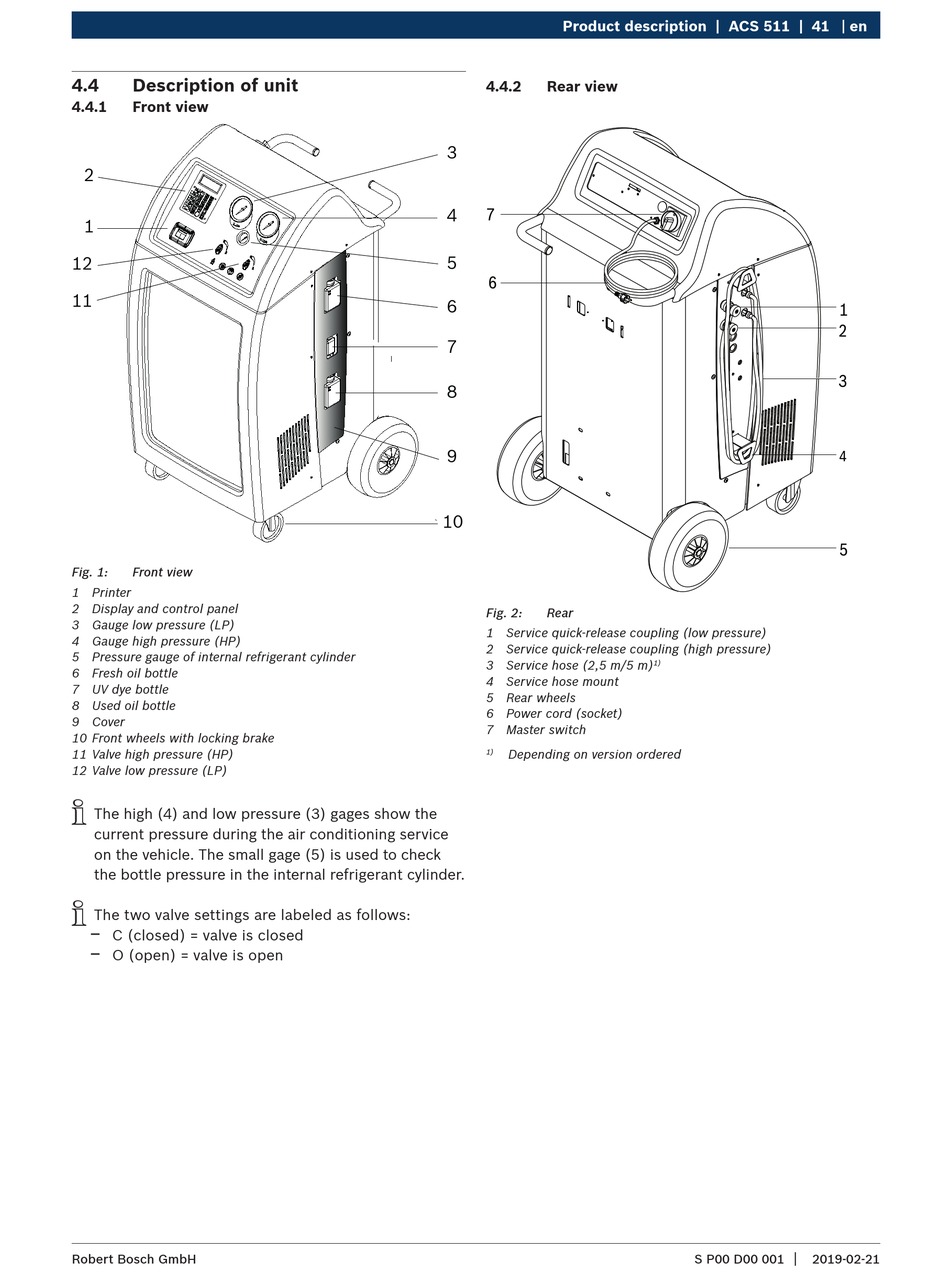

Fig. 1: Front view
1 Printer
2 Display and control panel
3 Gauge low pressure (LP)
4 Gauge high pressure (HP)
5 Pressure gauge of internal refrigerant cylinder
6 Fresh oil bottle
7 UV dye bottle
8 Used oil bottle
9 Cover
10 Front wheels with locking brake
11 Valve high pressure (HP)
12 Valve low pressure (LP)
i
The high (4) and low pressure (3) gages show the
current pressure during the air conditioning service
on the vehicle. The small gage (5) is used to check
the bottle pressure in the internal refrigerant cylinder.
i
The two valve settings are labeled as follows:
$
C (closed) = valve is closed
$
O (open) = valve is open
Robert Bosch GmbH
Product description | ACS 511 | 41
4.4.2

Rear view

3
4
7
5
6
6
7
8
9
10
Fig. 2: Rear
1 Service quick-release coupling (low pressure)
2 Service quick-release coupling (high pressure)
3 Service hose (2,5 m/5 m)
4 Service hose mount
5 Rear wheels
6 Power cord (socket)
7 Master switch
Depending on version ordered
1)
1)
|
