6.

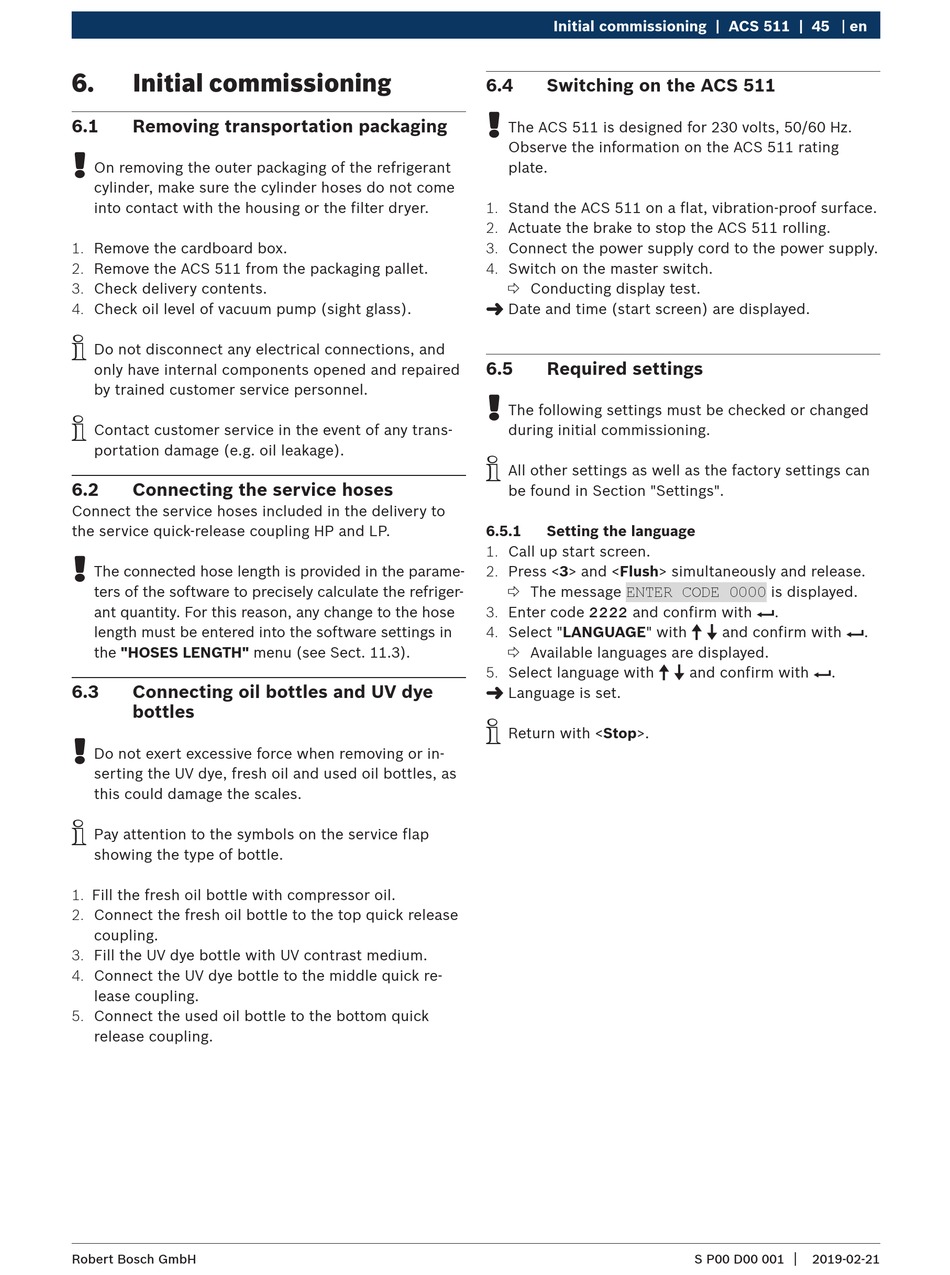

Initial commissioning

6.1 Removing transportation packaging
!
On removing the outer packaging of the refrigerant
cylinder, make sure the cylinder hoses do not come
into contact with the housing or the filter dryer.
1. Remove the cardboard box.
2. Remove the ACS 511 from the packaging pallet.
3. Check delivery contents.
4. Check oil level of vacuum pump (sight glass).
i
Do not disconnect any electrical connections, and
only have internal components opened and repaired
by trained customer service personnel.
i
Contact customer service in the event of any trans-
portation damage (e.g. oil leakage).
6.2 Connecting the service hoses
Connect the service hoses included in the delivery to
the service quick-release coupling HP and LP.
!
The connected hose length is provided in the parame-
ters of the software to precisely calculate the refriger-
ant quantity. For this reason, any change to the hose
length must be entered into the software settings in
the "HOSES LENGTH" menu (see Sect. 11.3).
6.3 Connecting oil bottles and UV dye
bottles
!
Do not exert excessive force when removing or in-
serting the UV dye, fresh oil and used oil bottles, as
this could damage the scales.
i
Pay attention to the symbols on the service flap
showing the type of bottle.
1. Fill the fresh oil bottle with compressor oil.
2. Connect the fresh oil bottle to the top quick release
coupling.
3. Fill the UV dye bottle with UV contrast medium.
4. Connect the UV dye bottle to the middle quick re-
lease coupling.
5. Connect the used oil bottle to the bottom quick
release coupling.
Robert Bosch GmbH
Initial commissioning | ACS 511 | 45
6.4 Switching on the ACS 511
!
The ACS 511 is designed for 230 volts, 50/60 Hz.
Observe the information on the ACS 511 rating
plate.
1. Stand the ACS 511 on a flat, vibration-proof surface.
2. Actuate the brake to stop the ACS 511 rolling.
3. Connect the power supply cord to the power supply.
4. Switch on the master switch.
 Conducting display test.
"
Date and time (start screen) are displayed.
6.5

Required settings

!
The following settings must be checked or changed
during initial commissioning.
i
All other settings as well as the factory settings can
be found in Section "Settings".
6.5.1 Setting the language
1. Call up start screen.
2. Press <3> and <Flush> simultaneously and release.
 The message
ENTER CODE 0000
2222
and confirm with E.
3. Enter code
4. Select "LANGUAGE" with o u and confirm with E.
 Available languages are displayed.
5. Select language with o u and confirm with E.
"
Language is set.
i
Return with <Stop>.
en
is displayed.
|
