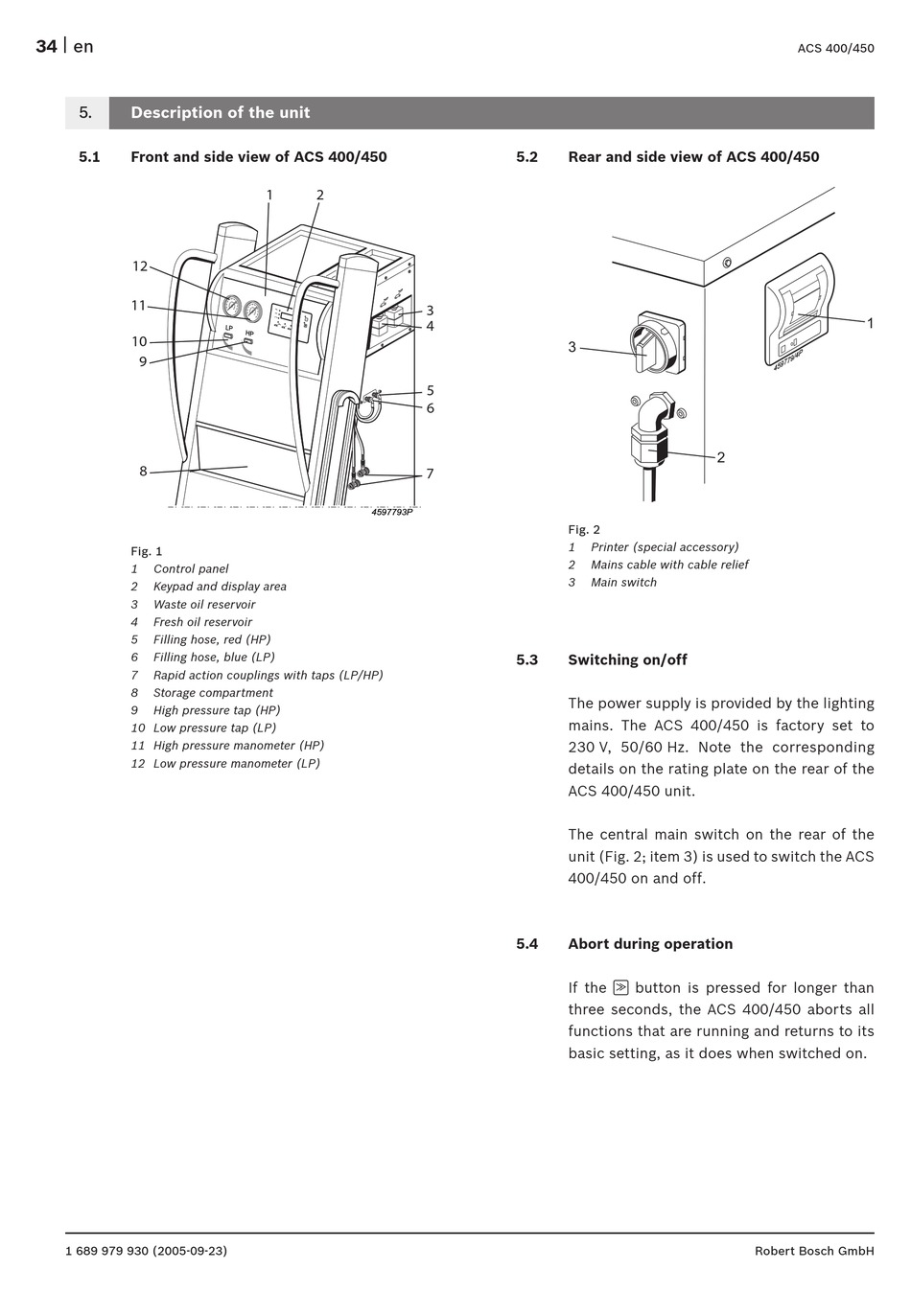

Description of the unit

.1 Front and side view of ACS 00/0
12
11
10
9
8
Fig. 1
1 Control panel
2 Keypad and display area
3 Waste oil reservoir
4 Fresh oil reservoir
5 Filling hose, red (HP)
6 Filling hose, blue (LP)
7 Rapid action couplings with taps (LP/HP)
8 Storage compartment
9 High pressure tap (HP)
10 Low pressure tap (LP)
11 High pressure manometer (HP)
12 Low pressure manometer (LP)
1 689 979 930 (2005-09-23)
1 2
3
4
5
6
7
. Rear and side view of ACS 00/0
3
Fig. 2
1 Printer (special accessory)
2 Mains cable with cable relief
3 Main switch
.

Switching on/off

The power supply is provided by the lighting
mains . The ACS 400/450 is factory set to
230 V, 50/60 Hz . Note the corresponding
details on the rating plate on the rear of the
ACS 400/450 unit .
The central main switch on the rear of the
unit (Fig . 2; item 3) is used to switch the ACS
400/450 on and off .
.

Abort during operation

If the button is pressed for longer than
V
three seconds, the ACS 400/450 aborts all
functions that are running and returns to its
basic setting, as it does when switched on .
